BALL VALVE

FBA_C16_F215

Model FBA_C16_F215
Fast reliable quater-turn shut-off
FBA_C16_F215
FBA_C16_F215

Summary Card

FunctionQuater-turn shut-off
Bore typeFull bore
RangeDN 65 – 300
ConnectionEN 1092-2
Material (Body)Bronze CC491K
Temperature rangeMax. 170 °C
Max. working pressure PN 25
MediaDrinking water
Find Distributor
Request Quote
Download Datasheet
  • View Drawing

Info

Use: On-off isolation
Avoid: Throttling and regulation

Why This Valve

Versatile System

Versatile System

Compatible with multiple media and aplications

Grey Cast Iron

Grey Cast Iron

Cost-effective strength for basic applications

Full bore

Full bore

No unnecessary pressure loss

Reliable shut-off

Reliable shut-off

Quarter-turn isolation

Product Overview

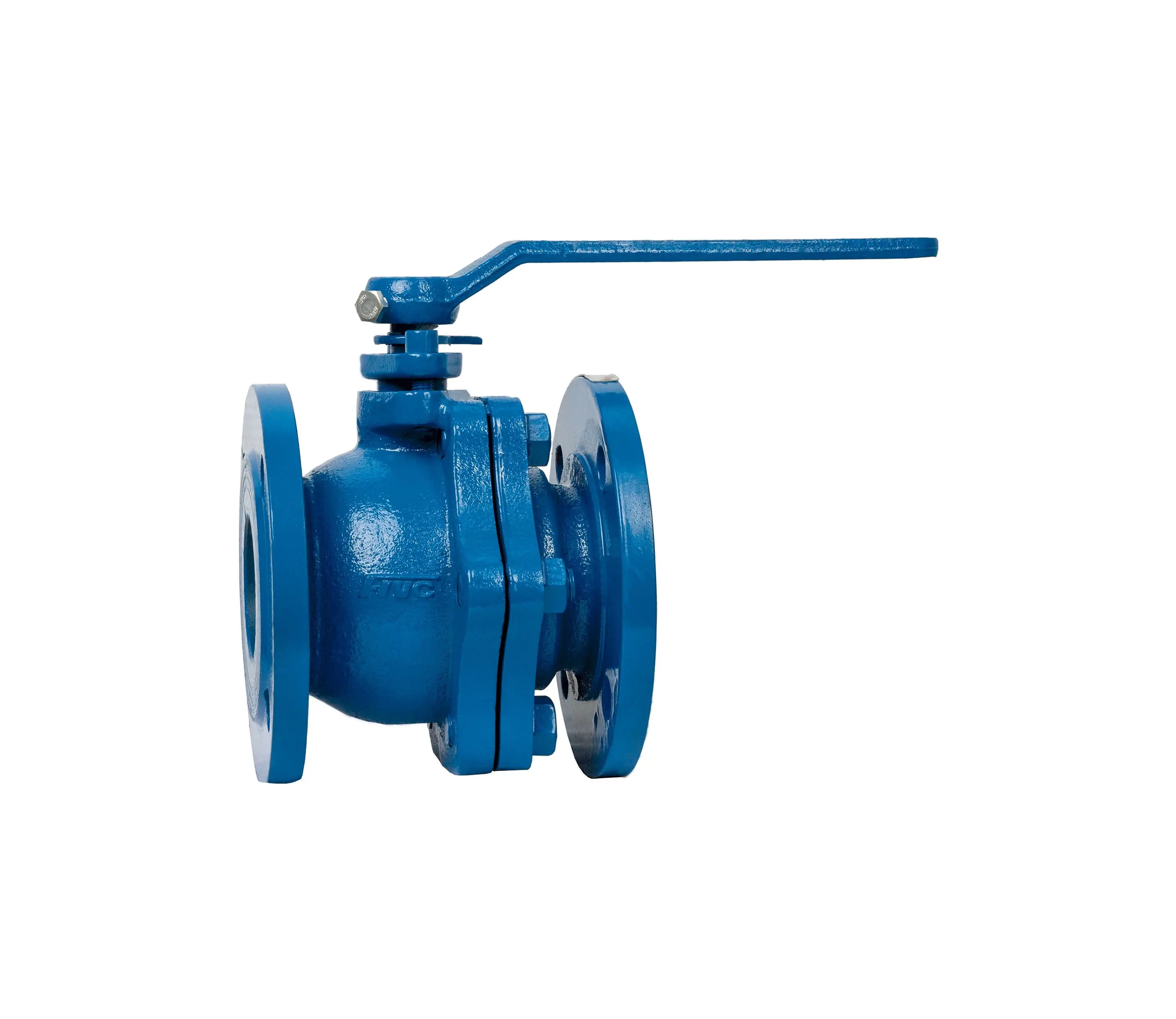

The FIVC Ball Valve is a high-performance, quarter-turn full-bore valve designed for reliable pipeline isolation.
It ensures excellent shut-off performance with minimal friction loss and long operational life.

Technical Specifications

FunctionQuater-turn shut-off
FeatureFull bore
StandardDIN 2533
ConnectionEN 1092-2 PN 16
DimensionsFace-to-Face 1092-2
External operationHand lever
Testing standardsISO 5208 Rate A Norminal pressure: PN 16 Shell test pressure: 2.40 MPa Seat (seal) test pressure: 1.80 Mpa Seat Test Pressure (Pneumatic / Air): 0.4 – 0.7 MPa

Materials

BodyGrey Cast Iron GG25
SeatPTFE
BallStailness Steel 201

Field of Application

Temperature range'-10 to 120 °C
Max. working pressure PN 16
MediaWater and Steam
Approval

Key Features

Corrossion resistanceOf durable materials, exhibiting excellent corrosion resistance.
Green responsibility Maximize space efficiency, ideal for tight installations.
Space optimizer Maximize space efficiency, ideal for tight installations.
Adaptability Easy adaptability and integration into various systems, providing full flexibility
Low maintanence Requires minimal maintenance, reducing downtime and lifecycle costs.

Usage & Applications

UsageFlow isolation. Avoid throttling and regulation
ApplicationsHVAC, Cooling system, MTHW (Max. 120 C.), Chilled Water, Filtration, Irrigation, Water management

Declaration

EN 1092-2

Full Technical Data

Datasheet
Datasheet
Download

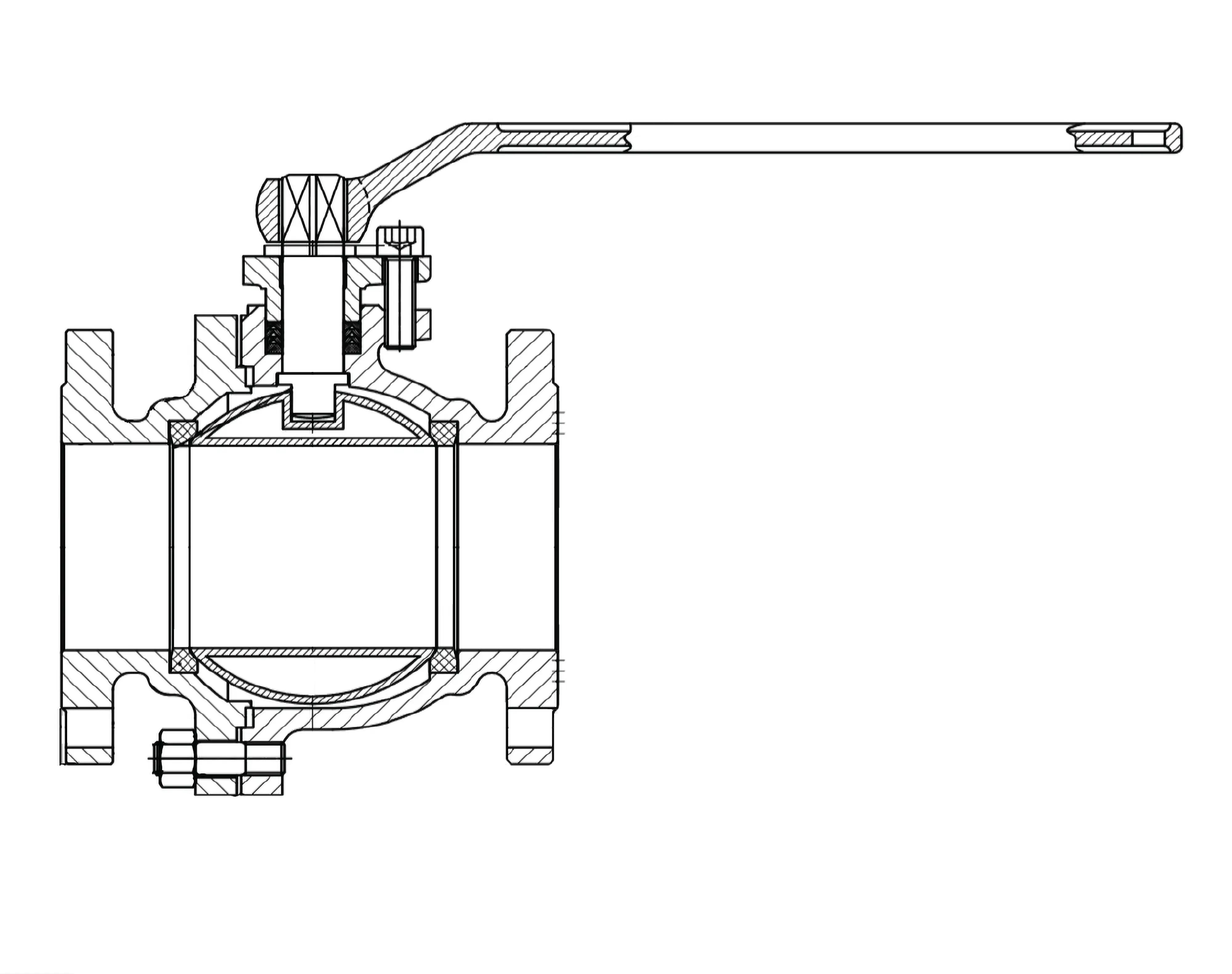

2D Drawing
2D Drawing
Download

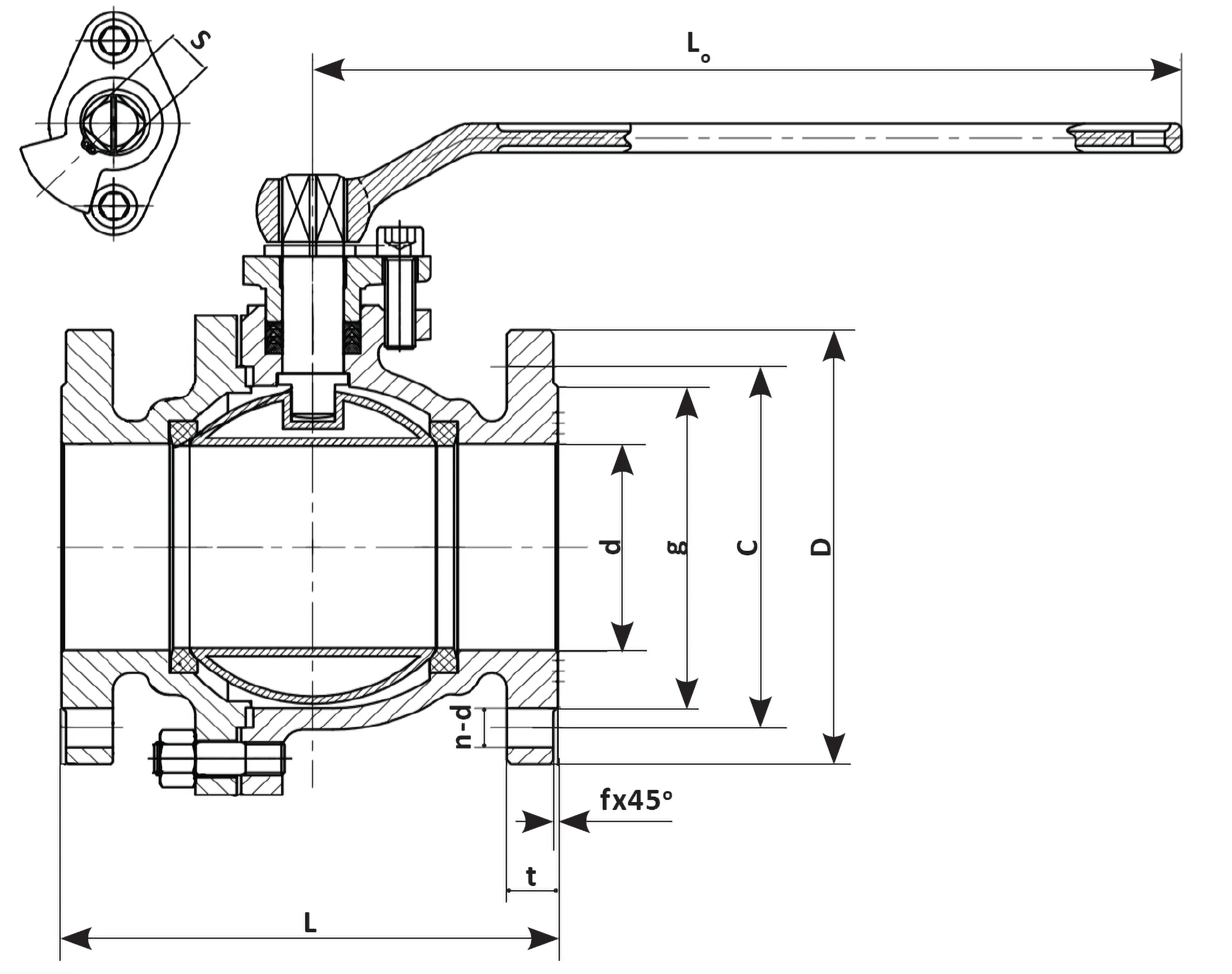

Quick Dimensions

FBA_C16_F215
Size (DN) L* D* c* g* d* N-h* t* f* H* s* L₀* Kg
65 170 185 145 122 65 4-Ø18 18 3 152 17 250 –
80 180 200 160 138 80 8-Ø18 20 3 170 19 350 –
100 190 220 180 158 100 8-Ø18 20 3 205 22 400 –
125 325 250 210 188 125 8-Ø18 26 3 250 27 645 –
150 350 285 240 212 150 8-Ø22 26 3 270 27 645 –
200 400 340 295 268 200 12-Ø22 30 3 340 30 750 –
250 450 405 355 320 250 12-Ø26 32 3 468 40 Gearbox –
300 500 460 410 370 300 12-Ø28 32 3 514 50 Gearbox –

Full Technical Data

Datasheet
Datasheet
Download
2D Drawing
2D Drawing
Download
FBA_C16_F215

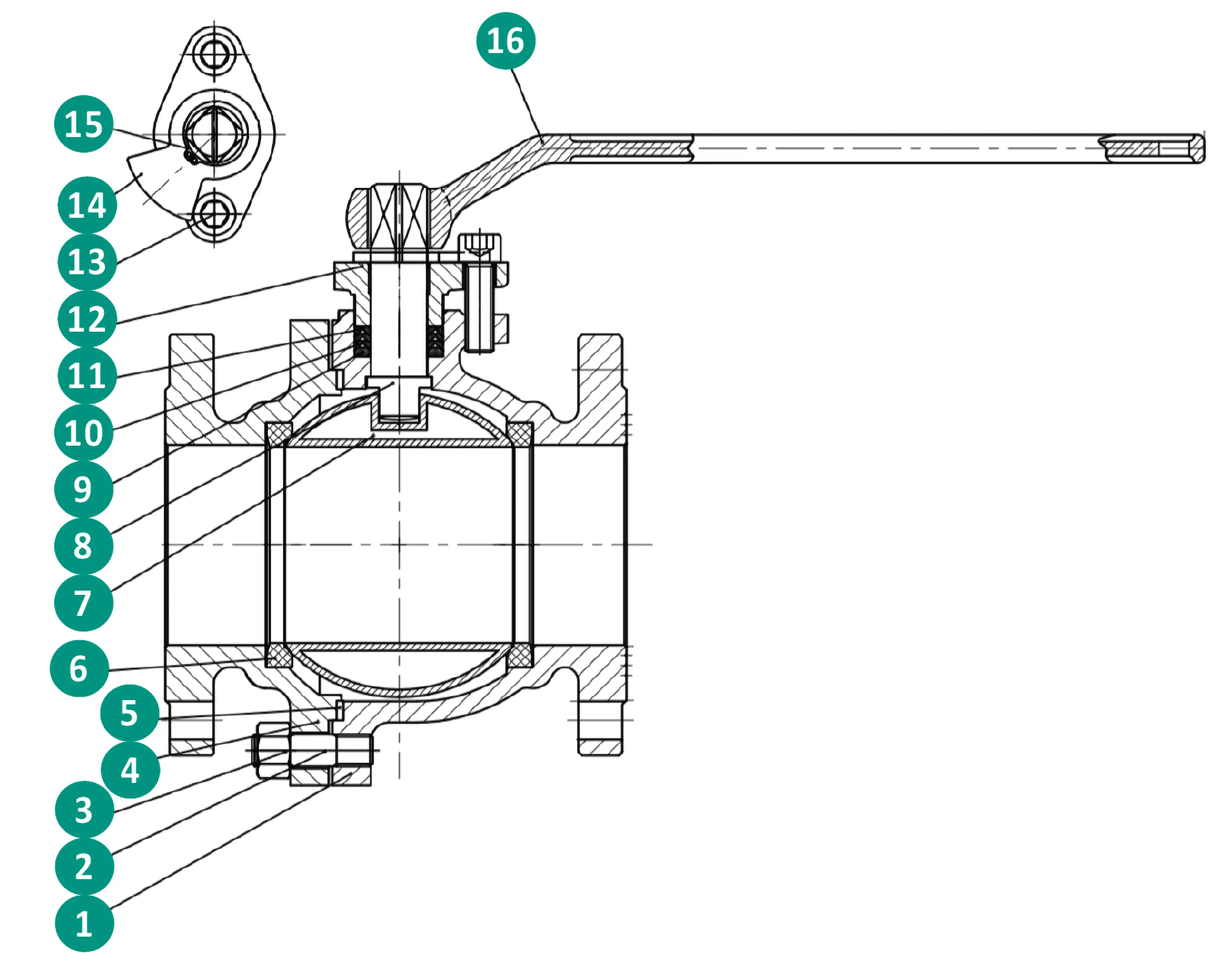

N° Name Material
1 Body Grey Cast Iron GG25
2 Stud 35
3 Nut Steel SS 400
4 Adapter Cap Grey Cast Iron GG 25
5 Gasket body Stainless Steel F304 + Graphite
6 Seat PTFE
7 Ball Stainless Steel 201 (solid hollow ball)
8 Stem Stainless Steel 2Cr13
9 Packing PTFE
10 Packing PTFE
11 Packing PTFE
12 Gland Grey Cast Iron GG25
13 Hex bolt 35
14 Locator card Steel SS 400
15 Flexible washer 65Mn
16 Handle Ductile Iron EN-GJS-400-18
Frequently Asked Questions
What type of valve is this? +
It is a quarter-turn, full port ball valve designed for pipeline isolation.
Is the valve CE marked? +
No. According to PED 2014/68/EU Art. 4.3, it is manufactured under Sound Engineering Practice (SEP) and therefore exempt from CE marking.
What bore type does this valve have? +
The product is a full port (full bore) ball valve. What that means in practice: The internal diameter matches the pipe diameter, minimizing pressure drop and friction loss.
What is the advantage of a full port design? +
A full port valve: Reduces pressure loss in the pipeline Maintains flow capacity Minimizes energy loss Prevents unnecessary turbulence This makes it ideal for isolation in systems where flow efficiency matters.
Can this valve be used for flow regulation? +
Technically, ball valves can throttle — but this valve is designed for isolation, not precise flow control. For continuous regulation, a globe valve or control valve is typically the better engineering choice.
