Ball Valves

FBA_D40_XT33

Model FBA_D40_XT33
FBA_D40_XT33
FBA_D40_XT33

Summary Card

FunctionQuater-turn shut-off
Bore typeFull bore
RangeDN 15-50
ConnectionISO 228
DimensionsEN 13828
Material (Body)DZR Brass
Temperature range-10 to 120 °C
MediaWater
Find Distributor
Request Quote
Download Datasheet
  • View Drawing

Info

Use: On-off isolation
Avoid: Throttling and regulation

Why This Valve

Versatile System

Versatile System

Compatible with multiple media and aplications

Full bore

Full bore

No unnecessary pressure loss

Reliable shut-off

Reliable shut-off

Quarter-turn isolation

Extended T-handle

Extended T-handle

Quarter-turn isolation

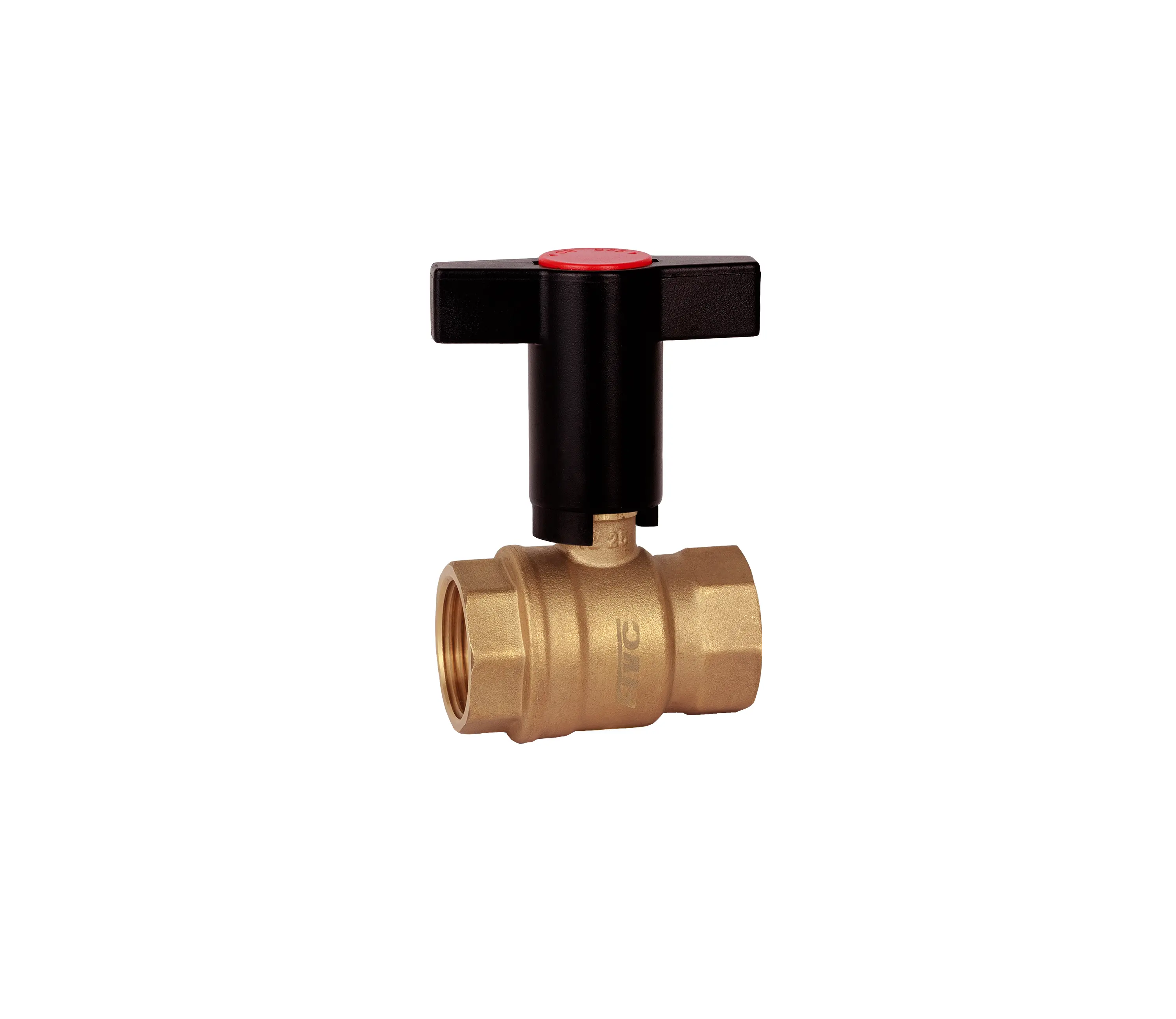

Product Overview

The FIVC Ball Valve is a high-performance, quarter-turn full-bore valve with an extended T-handle designed for reliable pipeline isolation.
It ensures excellent shut-off performance with minimal friction loss and long operational life.

Technical Specifications

FunctionQuater-turn shut-off
FeatureFull bore
StandardEN 13828
ConnectionISO 228
External operationTesting standardsExtended T-handle
Testing standardsBS EN 12266

Materials

BodyDZR Brass
SeatPTFE
BallStainless Steel

Field of Application

Temperature range"DN 10-25: 40 DN 32-50: 25"
Max. working pressure "DN 10-25: 40 DN 32-50: 25"

Key Features

Corrossion resistanceOf durable materials, exhibiting excellent corrosion resistance.
Operational AccessibilityExtended T-handle enables safe operation above insulation and in confined installations.
Space optimizerMaximize space efficiency, ideal for tight installations.
Adaptability Easy adaptability and integration into various systems, providing full flexibility
Low maintanence Requires minimal maintenance, reducing downtime and lifecycle costs.

Usage & Applications

UsageFlow isolation. Avoid throttling and regulation

Declaration

ISO 228, WRAS

Full Technical Data

Datasheet
Datasheet
Download

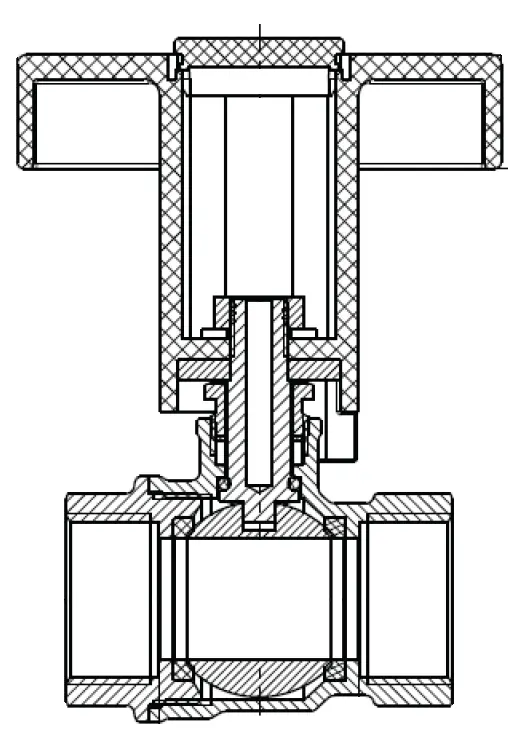

2D Drawing
2D Drawing
Download

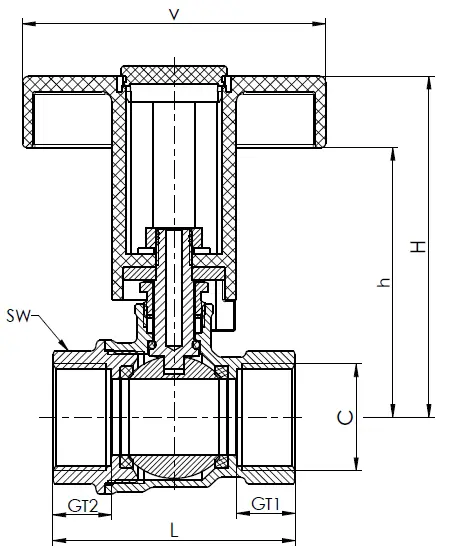

Quick Dimensions

FBA_D40_XT33
Size PN d L GT1 GT2 v h H SW
10 40 10 42.0 11.0 11.0 59.5 51.0 65.0 20.0
15 40 15 47.5 11.5 11.5 59.5 53.0 67.0 24.5
20 40 19 54.5 12.5 12.5 59.5 57.0 71.0 30.0
25 40 24 61.0 13.5 13.5 79.0 61.0 76.0 37.0
32 25 30 71.5 15.0 14.5 79.5 68.0 82.0 46.5
40 25 37 85.0 18.0 16.3 109.0 94.5 112.5 52.5
50 25 47 101 21.0 17.0 109 103 121.0 65.0

Full Technical Data

Datasheet
Datasheet
Download
2D Drawing
2D Drawing
Download

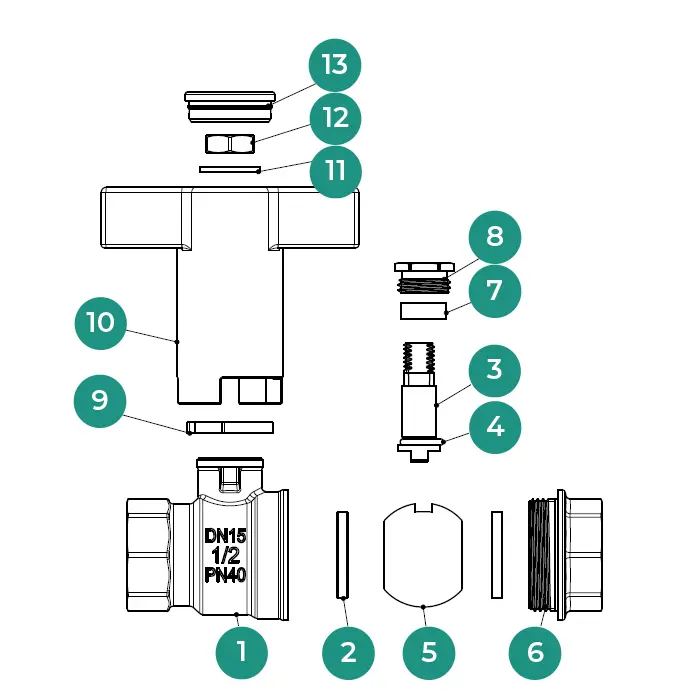

FBA_D40_XT33
N° Name Material
1 Body DZR Brass C 132
2 Seats PTFE
3 Stem Brass
4 O-ring EPDM
5 Ball Stainless Steel AISI 304
6 Body cap DZR Brass C 132
7 Gland Packing PTFE
8 Gland Brass
9 Torque plate Steel
10 T-lever POM
11 Washer Steel
12 Flat nut Steel
13 Cap POM
Frequently Asked Questions
What type of valve is this? +
It is a quarter-turn, full port ball valve designed for pipeline isolation.
Is the valve CE marked? +
No. According to PED 2014/68/EU Art. 4.3, it is manufactured under Sound Engineering Practice (SEP) and therefore exempt from CE marking.
What bore type does this valve have? +
"The product is a full port (full bore) ball valve. What that means in practice: The internal diameter matches the pipe diameter, minimizing pressure drop and friction loss."
What is the advantage of a full port design? +
"A full port valve: Reduces pressure loss in the pipeline Maintains flow capacity Minimizes energy loss Prevents unnecessary turbulence This makes it ideal for isolation in systems where flow efficiency matters."
Can this valve be used for flow regulation? +
"Technically, ball valves can throttle — but this valve is designed for isolation, not precise flow control. For continuous regulation, a globe valve or control valve is typically the better engineering choice."
