Use: On-off isolation
Avoid: Throttling and regulation
For easy integration of a temperature sensor
No unnecessary pressure loss
Quarter-turn isolation
Quarter-turn isolation

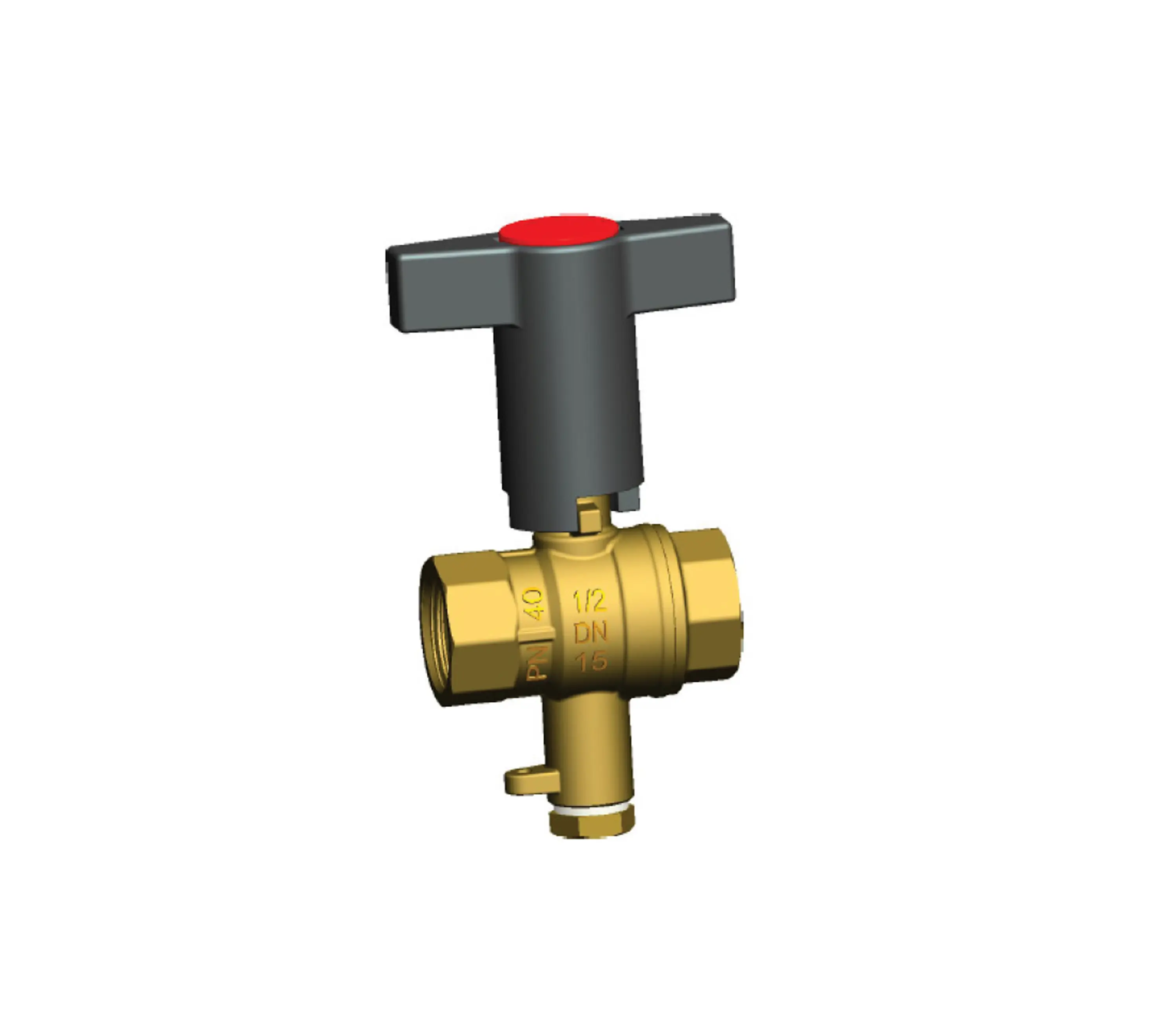

The FIVC Ball Valve is a high-performance, quarter-turn full-bore valve with an extended T-handle and an integrated temperature sensor port designed for reliable pipeline isolation.
It ensures excellent shut-off performance with minimal friction loss and long operational life.

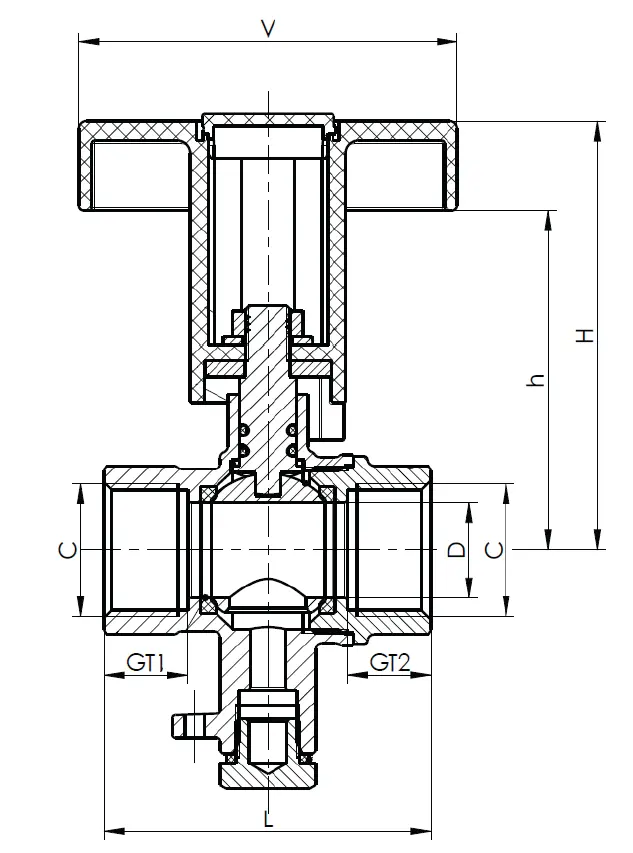

| Size | PN | D | L | GT1 | GT2 |
|---|---|---|---|---|---|
| 15 | 40 | 15.0 | 51.3 | 13.1 | 13.1 |
| 20 | 40 | 20.0 | 57.5 | 13.5 | 13.5 |
| 25 | 40 | 24.0 | 67.0 | 15.5 | 15.5 |
| 32 | 25 | 32.0 | 81.0 | 16.8 | 16.8 |
| 40 | 25 | 39.5 | 94.0 | 19.3 | 19.3 |
| 50 | 25 | 50.0 | 112 | 22.0 | 22.0 |
| Size | V | h | H | SW1 | SW2 |
|---|---|---|---|---|---|
| 15 | 59.5 | 53.0 | 67.0 | 25.0 | 13 |
| 20 | 59.5 | 56.5 | 70.5 | 31.0 | 13 |
| 25 | 79.0 | 62.0 | 76.0 | 37.5 | 13 |
| 32 | 79.5 | 69.5 | 83.5 | 47.0 | 13 |
| 40 | 109 | 94.0 | 112 | 54.0 | 13 |
| 50 | 109 | 106 | 124 | 66.0 | 13 |

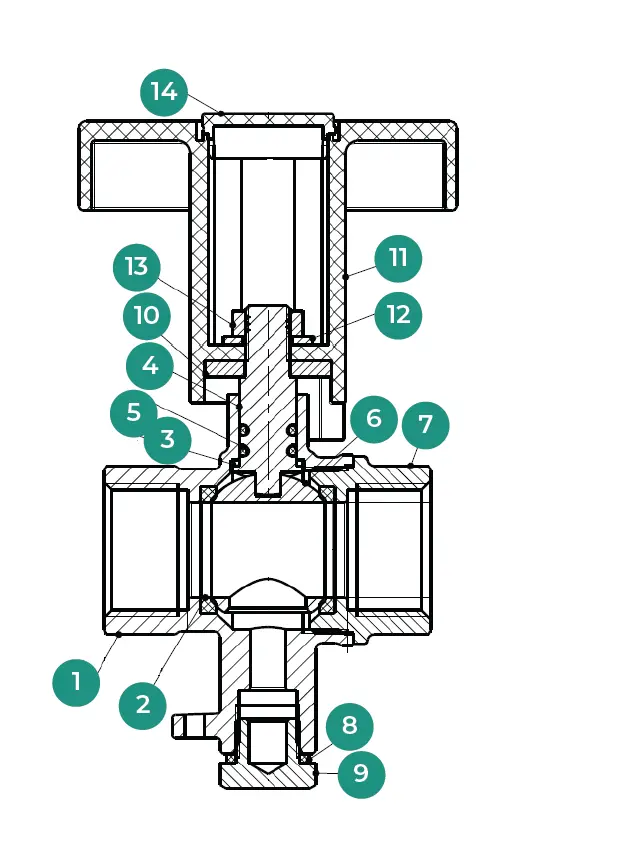

| N° | Name | Material |
|---|---|---|
| 1 | Body | Brass CZ132 |
| 2 | Seats | PTFE |
| 3 | Thrust washer | PTFE |
| 4 | Stem | Brass |
| 5 | O-ring | Peroxid cured viton |
| 6 | Ball | Stainless Steel AISI 304 |
| 7 | Body cap | Brass CZ132 |
| 8 | Trust washer | PTFE |
| 9 | Cap | Brass |
| 10 | Torque plate | Steel |
| 11 | T-lever | POM |
| 12 | Washer | Steel |
| 13 | Flat nut | Steel |
| 14 | Cap | POM |
