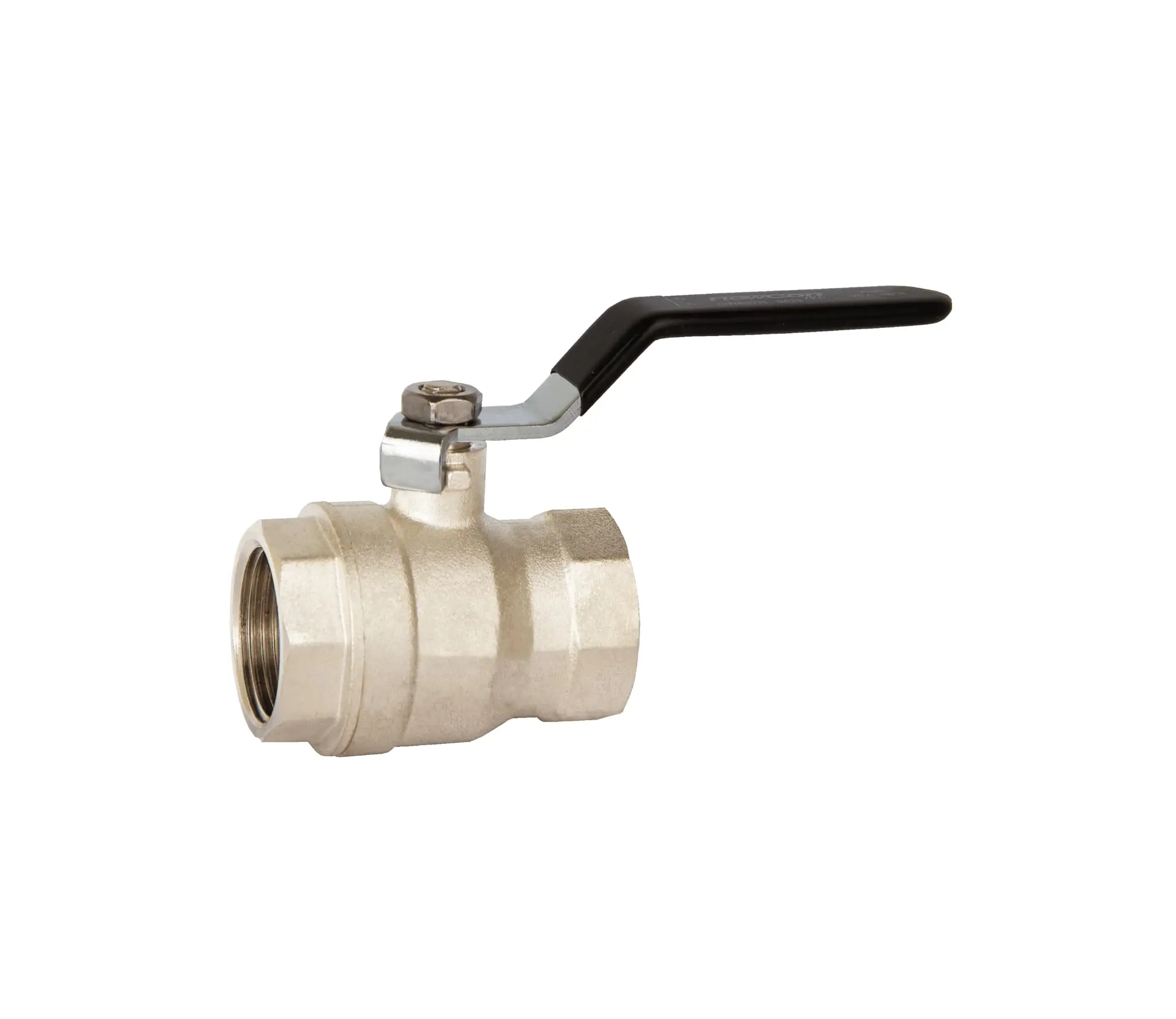

Model FBA_H25_F142
Fast reliable quater-turn shut-off
FBA_H25_F142
FBA_H25_F142

Summary Card

FunctionQuater-turn shut-off
Bore typeFull bore
RangeDN 15 – 100
ConnectionISO 228-1
Material (Body)Brass CW617N
Temperature range'DN 15-50: -20 to 90°C DN 65-100: -20 to 120°C
Max. working pressure DN 15-50: 25 bar DN 65-100: 20 bar
MediaWater
Find Distributor
Request Quote
Download Datasheet
  • View Drawing

Info

Use: On-off isolation

Avoid: Throttling and regulation

Why This Valve

Versatile System

Versatile System

Compatible with multiple media and aplications

Brass

Brass

Reliable sealing and corrosion resistance in water systems

Full bore

Full bore

No unnecessary pressure loss

Reliable shut-off

Reliable shut-off

Quarter-turn isolation

Product Overview

The FIVC Ball Valve is a high-performance, quarter-turn full-bore valve designed for reliable pipeline isolation.
It ensures excellent shut-off performance with minimal friction loss and long operational life.

Technical Specifications

FunctionQuater-turn shut-off
FeatureFull bore
ConnectionISO 228-1
External operationHand lever
Testing standardsBS EN 12266

Materials

BodyBrass CW617N (Nickel-plated)
SeatPTFE
BallBrass C37700 (Chrome-plated)

Field of Application

Temperature range'DN 15-50: -20 to 90°C DN 65-100: -20 to 120°C
Max. working pressure DN 15-50: 25 bar DN 65-100: 20 bar
MediaWater

Key Features

Corrossion resistanceOf durable materials, exhibiting excellent corrosion resistance.
Green responsibility Maximize space efficiency, ideal for tight installations.
Space optimizer Maximize space efficiency, ideal for tight installations.
Adaptability Easy adaptability and integration into various systems, providing full flexibility
Low maintanence Requires minimal maintenance, reducing downtime and lifecycle costs.

Usage & Applications

UsageFlow isolation. Avoid throttling and regulation
ApplicationsHVAC, Cooling system, MTHW (Max. 120 C.), Chilled Water, Filtration, Irrigation, Water management

Declaration

ISO 228

Full Technical Data

Datasheet
Datasheet
Download

Quick Dimensions

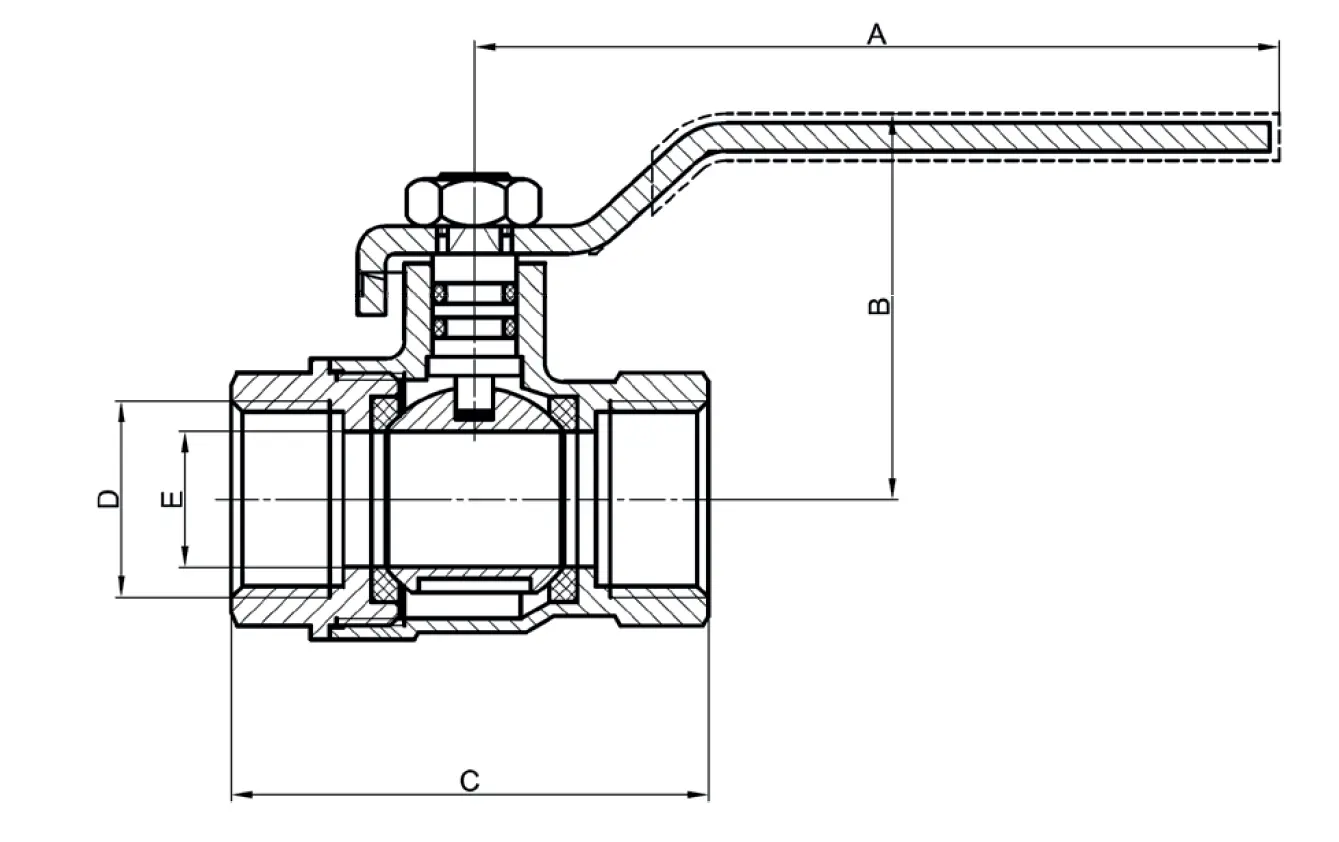

FBA_H25_F142-DN15-50
Size A B C D E Kg
15 86 41.2 51 G 1½ Ø14.5 0.19
20 105 46 57 G ¾ Ø19 0.27
25 105 52 67 G 1 Ø24.5 0.42
32 122 61 80 G 1¼ Ø32 0.70
40 152 76 90.5 G 1½ Ø40 1.00
50 152 92 101 G 2 Ø49 1.41
65 233 111 130 G 2½ Ø60.5 2.84
80 233 121 147 G 3 Ø74 3.12
100 233 139 185 G 4 Ø99 7.27

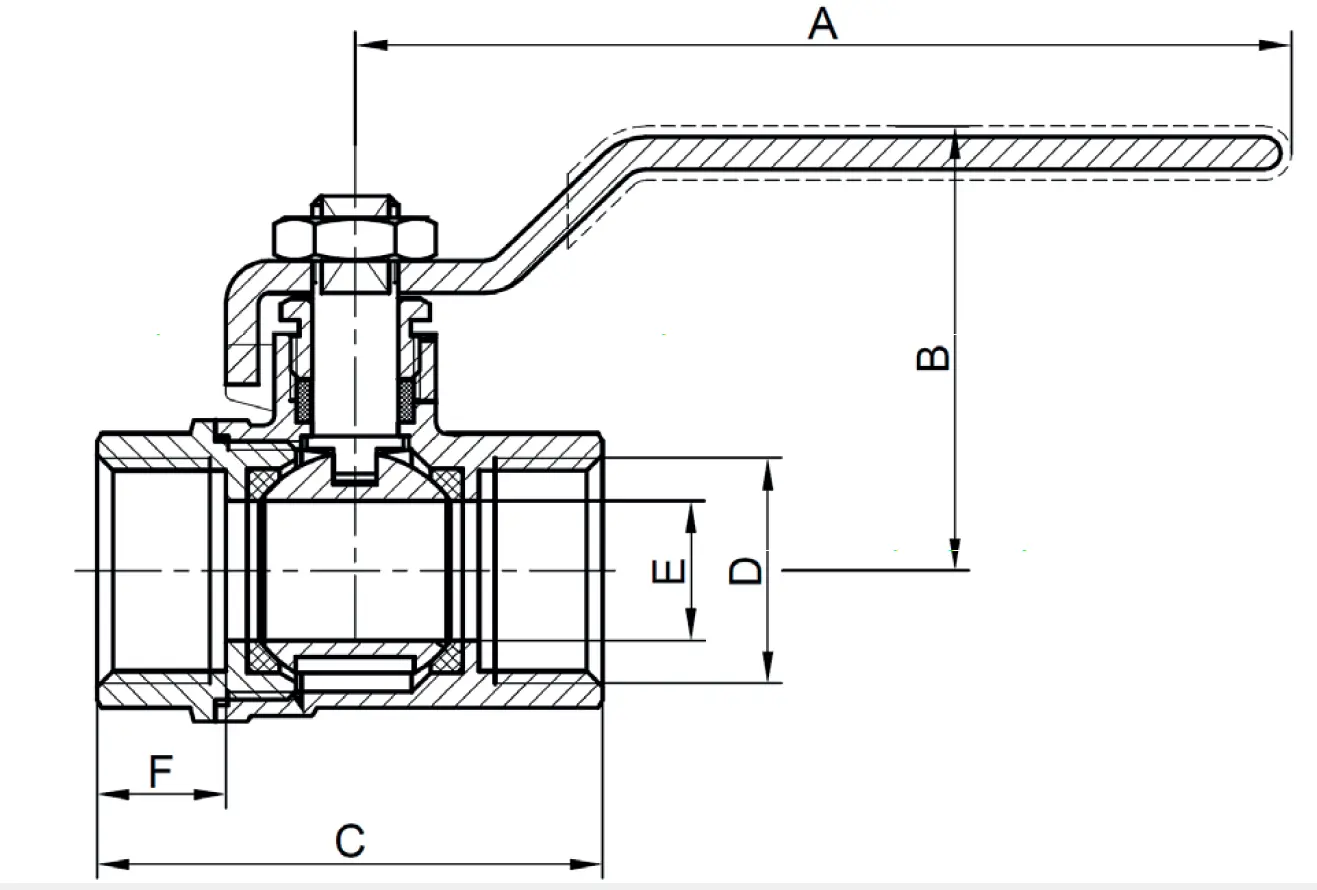

FBA_H25_F142-DN65-100
Size A B C D E Kg
15 86 41.2 51 G 1½ Ø14.5 0.19
20 105 46 57 G ¾ Ø19 0.27
25 105 52 67 G 1 Ø24.5 0.42
32 122 61 80 G 1¼ Ø32 0.70
40 152 76 90.5 G 1½ Ø40 1.00
50 152 92 101 G 2 Ø49 1.41
65 233 111 130 G 2½ Ø60.5 2.84
80 233 121 147 G 3 Ø74 3.12
100 233 139 185 G 4 Ø99 7.27

Full Technical Data

Datasheet
Datasheet
Download

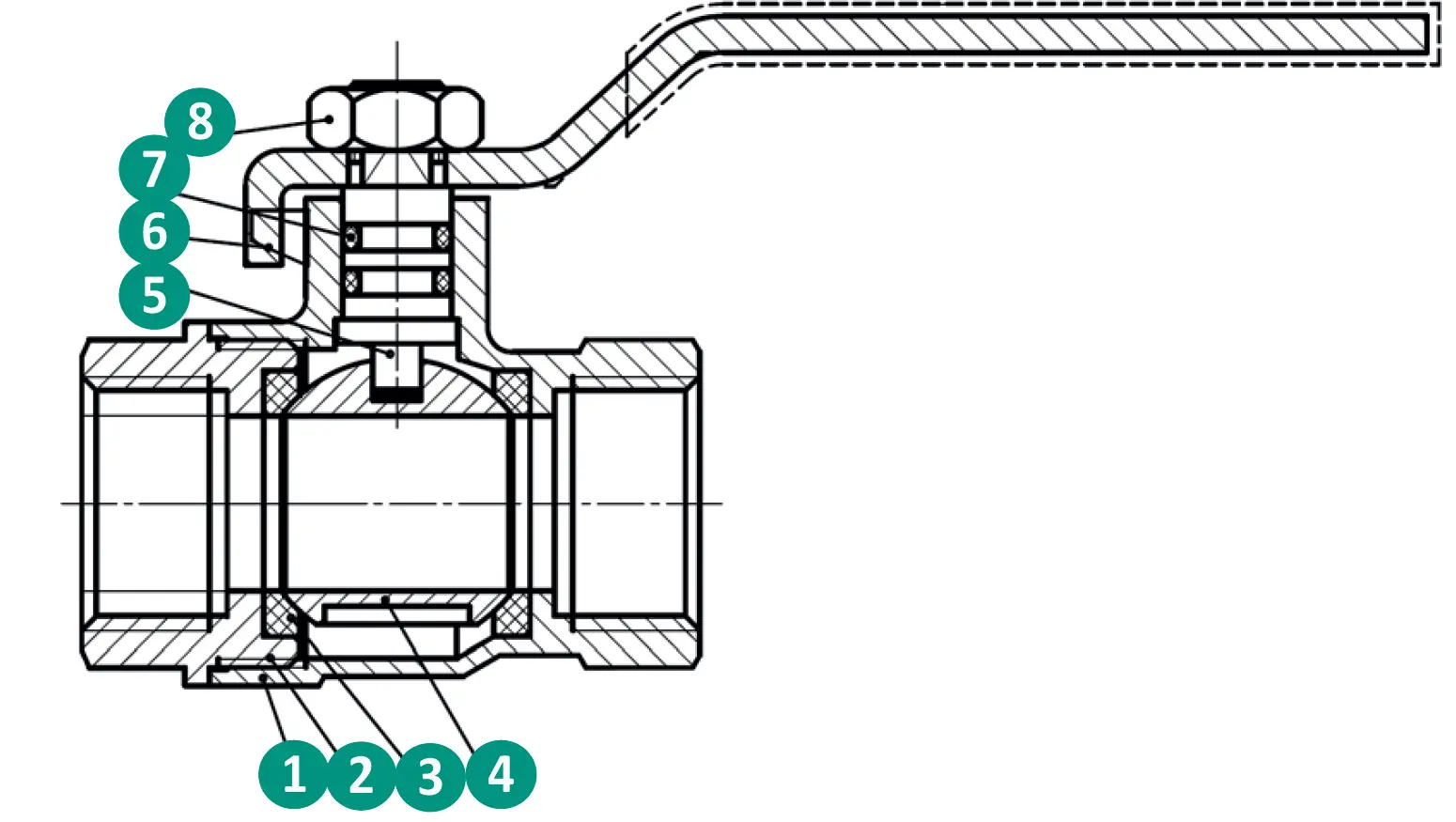

FBA_H25_F142-DN15-50
N° Name Material
1 Body Brass CW617N – Nickel plated
2 Bonnet Brass CW617N – Nickel plated
3 Seat PTFE
4 Ball Brass C37700 – Chrome plated
5 Stem Brass CW617N – Nickel plated
6 Handle Steel Q235A – Chrome plated
7 O-Rings NBR
8 Nut Steel Q235A
FBA_H25_F142-DN65-100
N° Name Material
1 Body Brass CW617N – Nickel plated
2 Bonnet Brass CW617N – Nickel plated
3 Seat PTFE
4 Ball Brass C37700 – Chrome plated
5 Stem Brass CW617N – Nickel plated
6 Packing PTFE
7 Packing nut Brass C37700 – Nickel plated
8 Handle Steel Q235A – Chrome plated
9 Nut Steel Q235A
