BALL VALVE

FBA_O25_F212012112

Model FBA_O25_F212012112

Fast reliable quater-turn shut-off

Summary Card

FunctionQuater-turn shut-off

Bore typeFull bore

RangeDN 15 – 50

ConnectionISO 228

Material (Body)Bronze CC491K

Temperature rangeUp to 85 °C

Max. working pressurePN 25

Max. working pressureDrinking water

ApprovalWRAS-approved

Download Datasheet

Info

Use: On-off isolation
Avoid: Throttling and regulation

Why This Valve

Versatile System

Compatible with multiple media and aplications

Ductile Iron

High strength and durability in demanding systems

Cast Iron

Cost-effective strength for basic applications

Built-in temperature sensor port

For easy integration of a temperature sensor

Product Overview

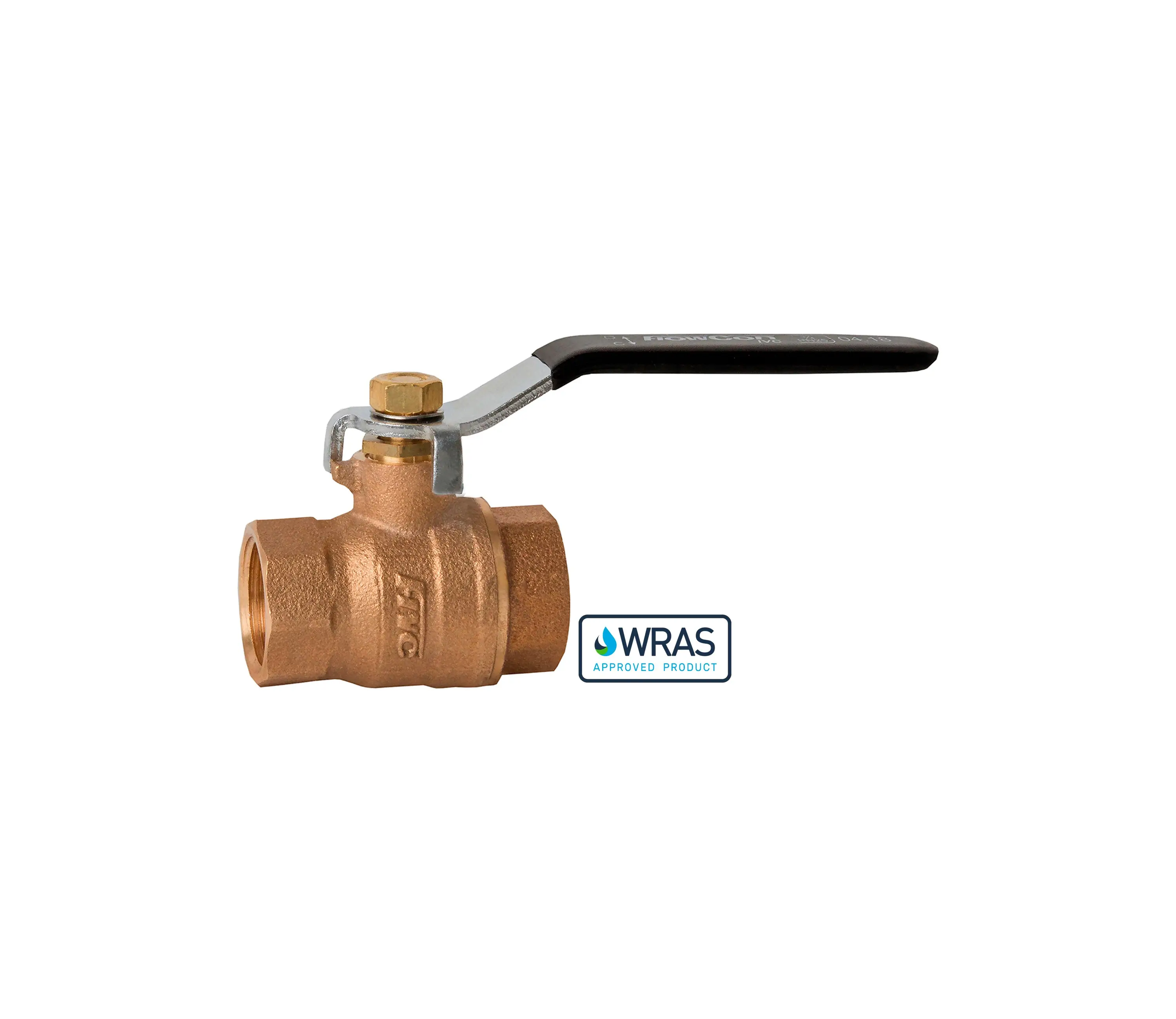

The FIVC Bronze Ball Valve is a high-performance, quarter-turn full-bore valve designed for reliable pipeline isolation. It ensures excellent shut-off performance with minimal friction loss and long operational life.

Technical Specifications

FunctionQuater-turn shut-off

FeatureFull bore

ConnectionISO 228

External operationHand lever

Testing standardsEN 12266-1

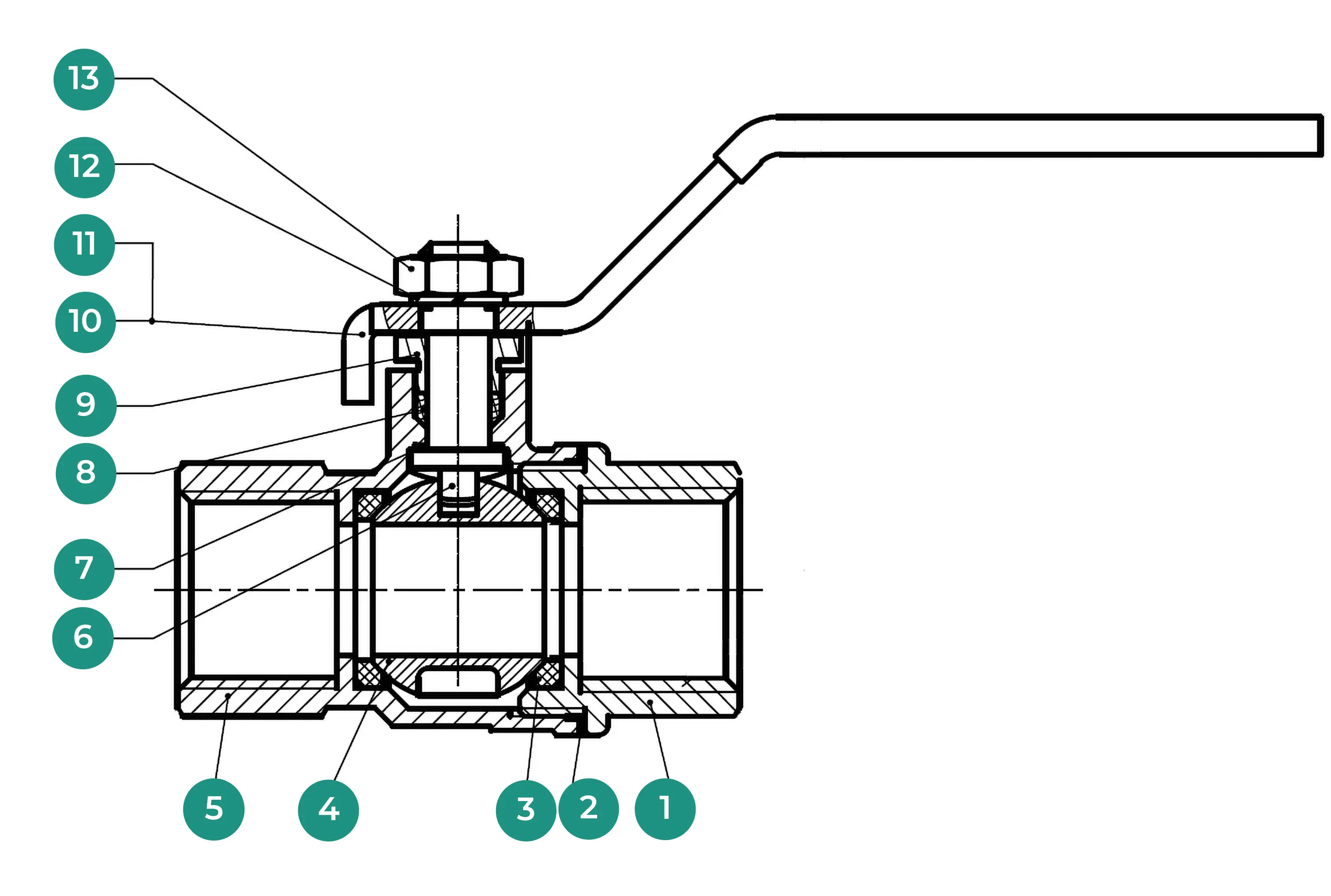

Materials

BodyBronze CC491K

SeatPTFE

BallBrass CuZn39Pb3

Field of Application

Temperature rangeMax. 170 °C

Max. working pressurePN 25

MediaDrinking water

ApprovalWRAS-approved

Key Features

Corrossion resistanceOf durable materials, exhibiting excellent corrosion resistance.

WRAS-approvedCertified for potable water installations and compliant with drinking water regulations.

Space optimizerMaximize space efficiency, ideal for tight installations.

AdaptabilityEasy adaptability and integration into various systems, providing full flexibility

Low maintanenceRequires minimal maintenance, reducing downtime and lifecycle costs.

Usage & Applications

UsageFlow isolation. Avoid throttling and regulation

ApplicationsHVAC, Plumbing, Cooling system, LTHW (Max. 85 C.), Chilled Water, Filtration, Irrigation, Water management

Declaration

Full Technical Data

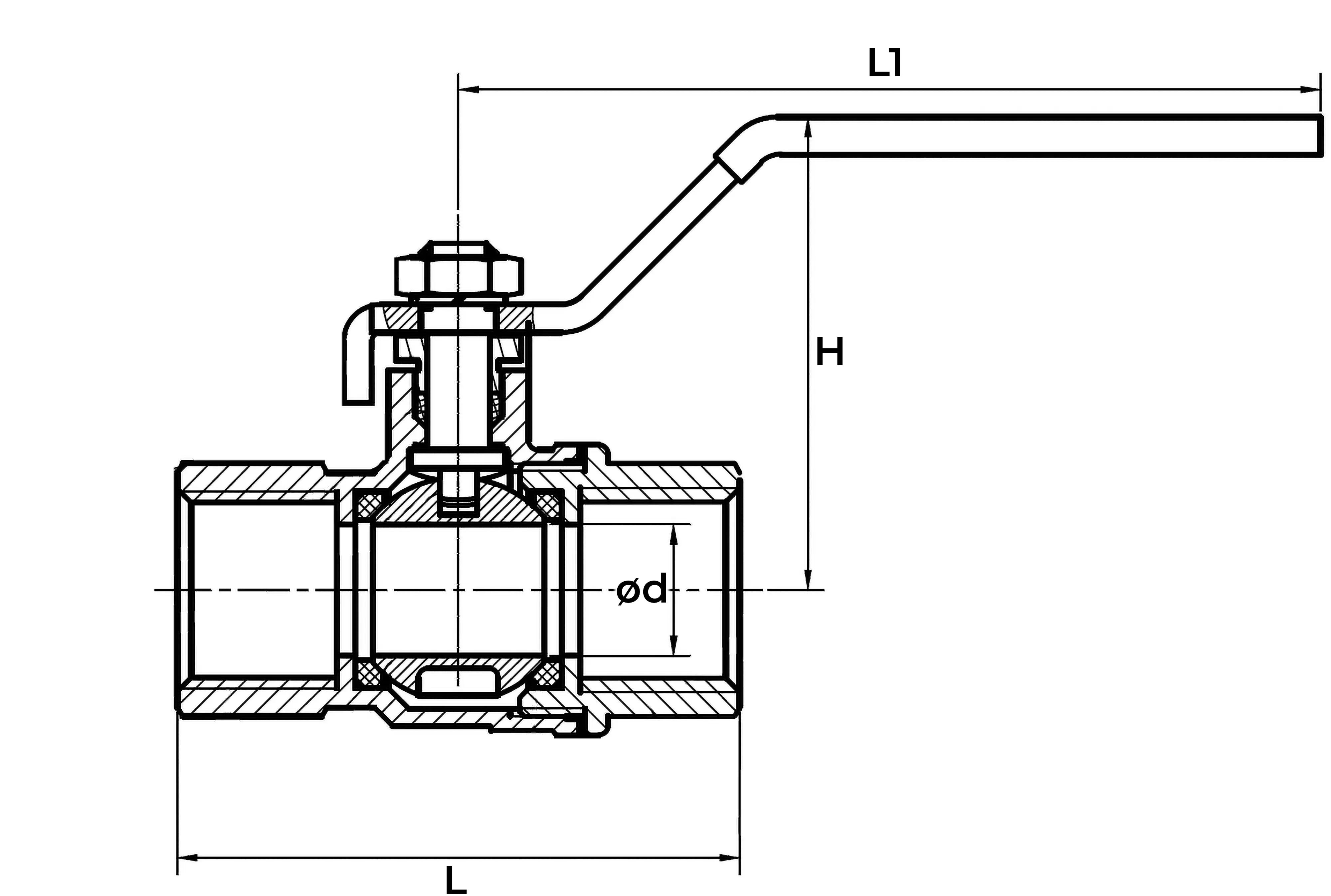

Quick Dimensions

Size	L	L1	d	H	Kg
15	53	95	14	44	0.228
20	61	110	19	51	0.366
25	71	110	24	55	0.539
32	85	140	31	65	0.838
40	92	140	38	70	1.133
50	114	160	49	83	1.88
