BALL VALVE

FBA_O25_FX42

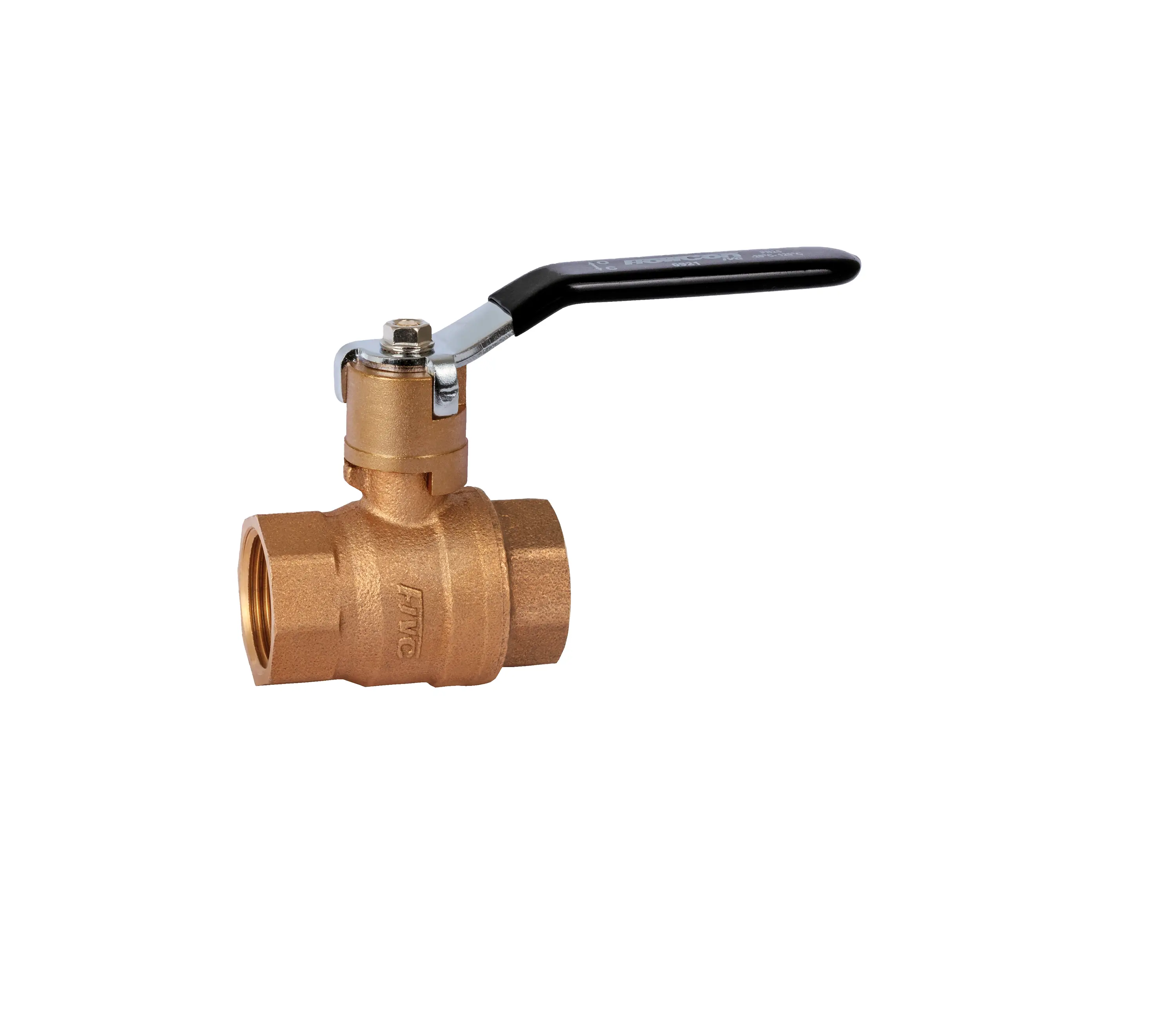

Model FBA_O25_FX42
Fast reliable quater-turn shut-off
FBA_O25_FX42
FBA_O25_FX42

Summary Card

FunctionQuater-turn shut-off
Bore typeFull bore
RangeDN 15 – 50
ConnectionISO 228
DimensionsEN 13828
Material (Body)Bronze CC491K
Temperature range'Max. 170 °C
Max. working pressure PN 25
MediaWater and steam
Find Distributor
Request Quote
Download Datasheet
  • View Drawing

Info

Use: On-off isolation

Avoid: Throttling and regulation

Why This Valve

Versatile System

Versatile System

Compatible with multiple media and aplications

Full bore

Full bore

No unnecessary pressure loss

Reliable shut-off

Reliable shut-off

Quarter-turn isolation

Bronze

Bronze

Long service life in aggressive water

Product Overview

The FIVC Ball Valve is a high-performance, quarter-turn full-bore valve designed for reliable pipeline isolation.
It ensures excellent shut-off performance with minimal friction loss and long operational life.

Technical Specifications

FunctionQuater-turn shut-off
FeatureFull bore
StandardEN 13828
ConnectionISO 228
External operationHand lever
Testing standardsBS EN 12266

Materials

BodyBronze CC491K
SeatPTFE
BallBrass (Chrome-plated)

Field of Application

Temperature rangeMax. 170 °C
Max. working pressure PN 25
MediaWater and Steam

Key Features

Corrossion resistanceOf durable materials, exhibiting excellent corrosion resistance.
Green responsibility Maximize space efficiency, ideal for tight installations.
Space optimizer Maximize space efficiency, ideal for tight installations.
Adaptability Easy adaptability and integration into various systems, providing full flexibility
Low maintanence Requires minimal maintenance, reducing downtime and lifecycle costs.

Usage & Applications

UsageFlow isolation. Avoid throttling and regulation
ApplicationsHVAC, Cooling system, MTHW (Max. 120 C.), Chilled Water, Filtration, Irrigation, Water management

Declaration

ISO 228

Full Technical Data

Datasheet
Datasheet
Download

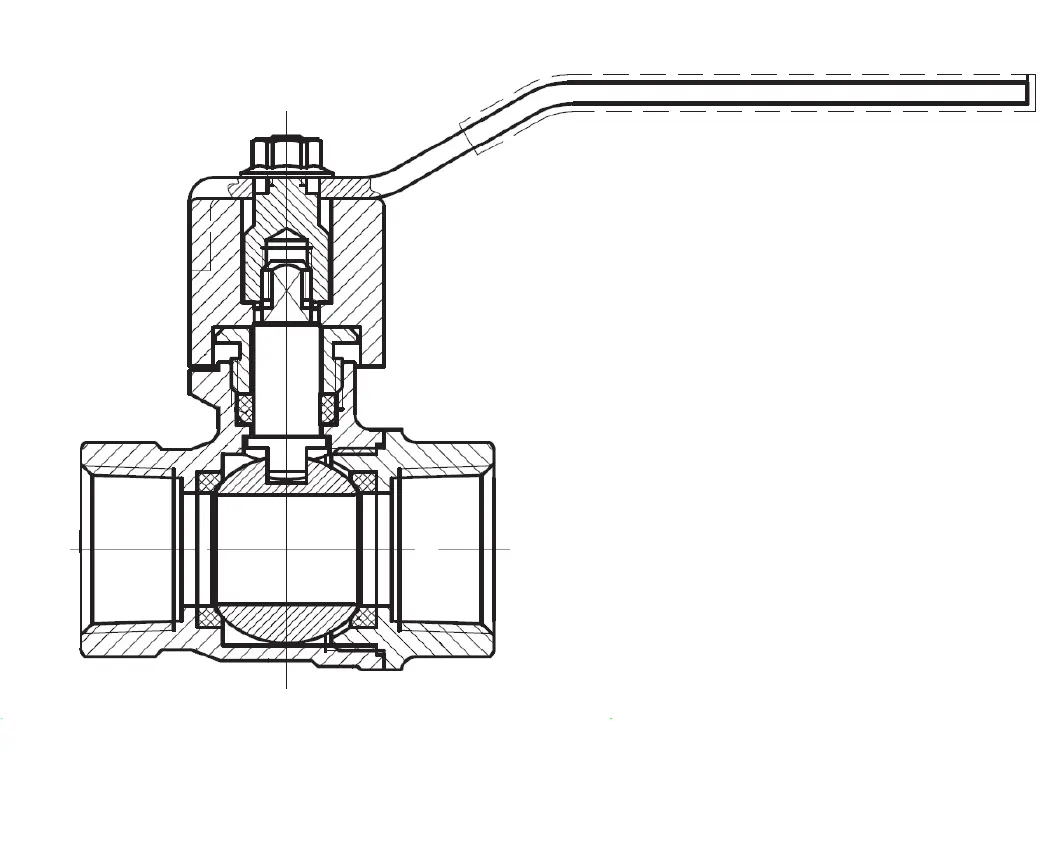

2D Drawing
2D Drawing
Download

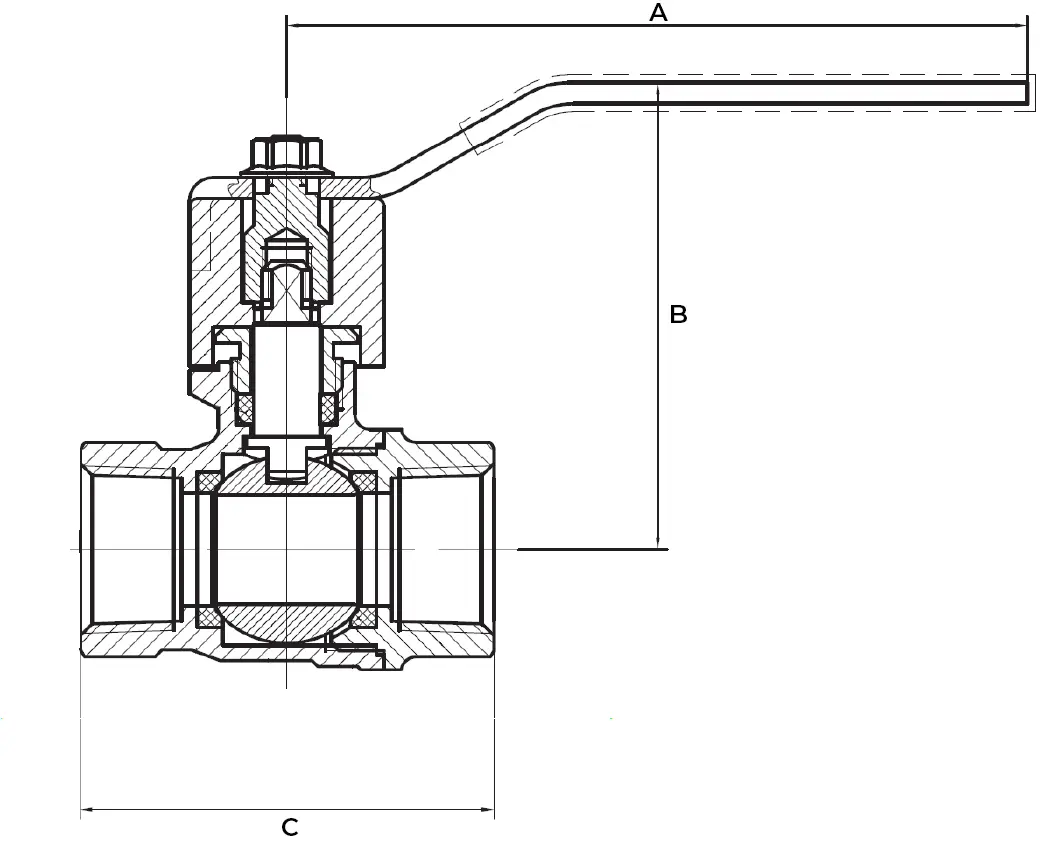

Quick Dimensions

FBA_O25_FX42
Size A B C Kg
15 95 60 53 0.294
20 110 69 61 0.438
25 110 73 71 0.605
32 140 86.9 85 0.916
40 140 91.4 92 1.188
50 161 106 114.5 1.975

Full Technical Data

Datasheet
Datasheet
Download
2D Drawing
2D Drawing
Download
