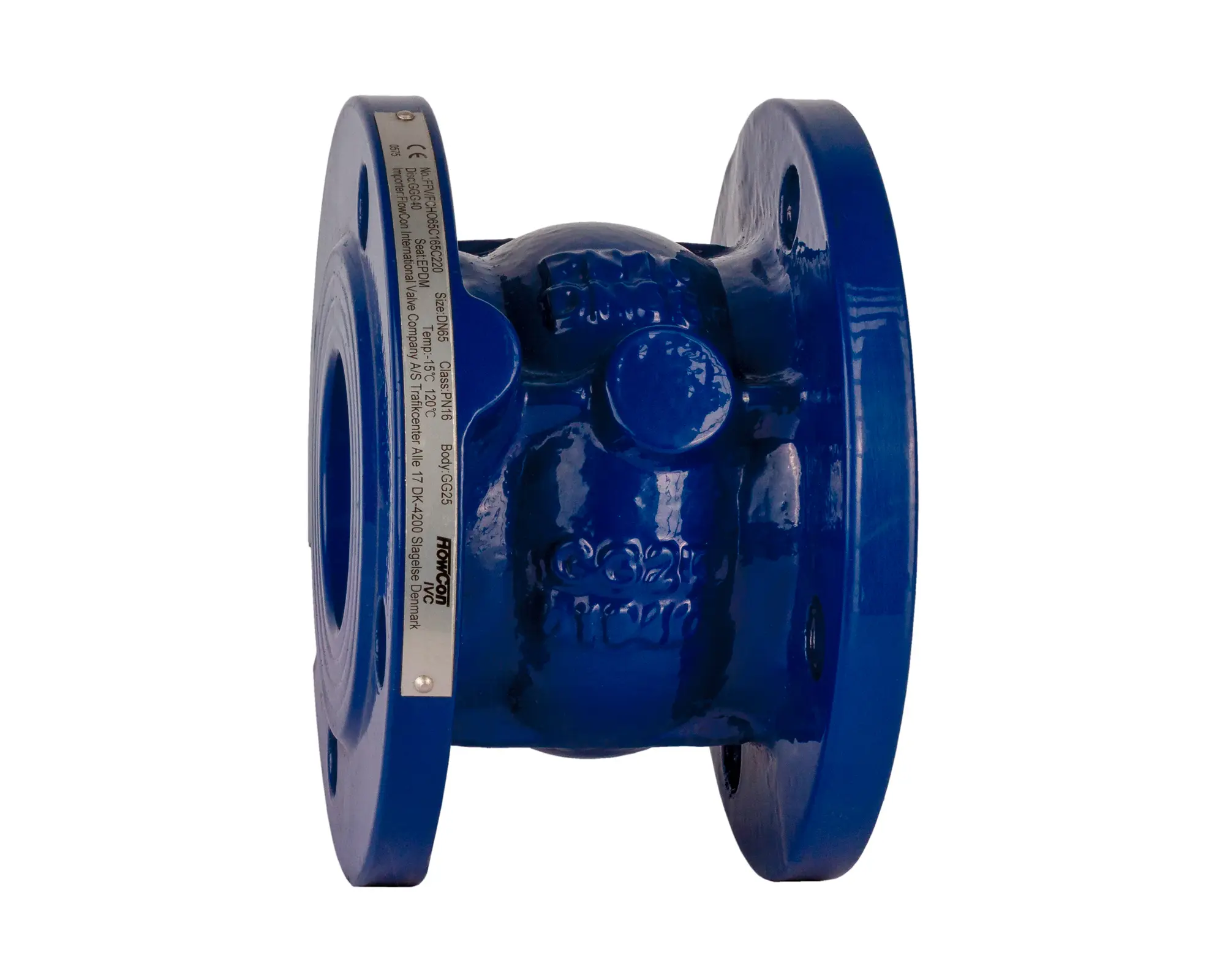

FCH_C16_SC220

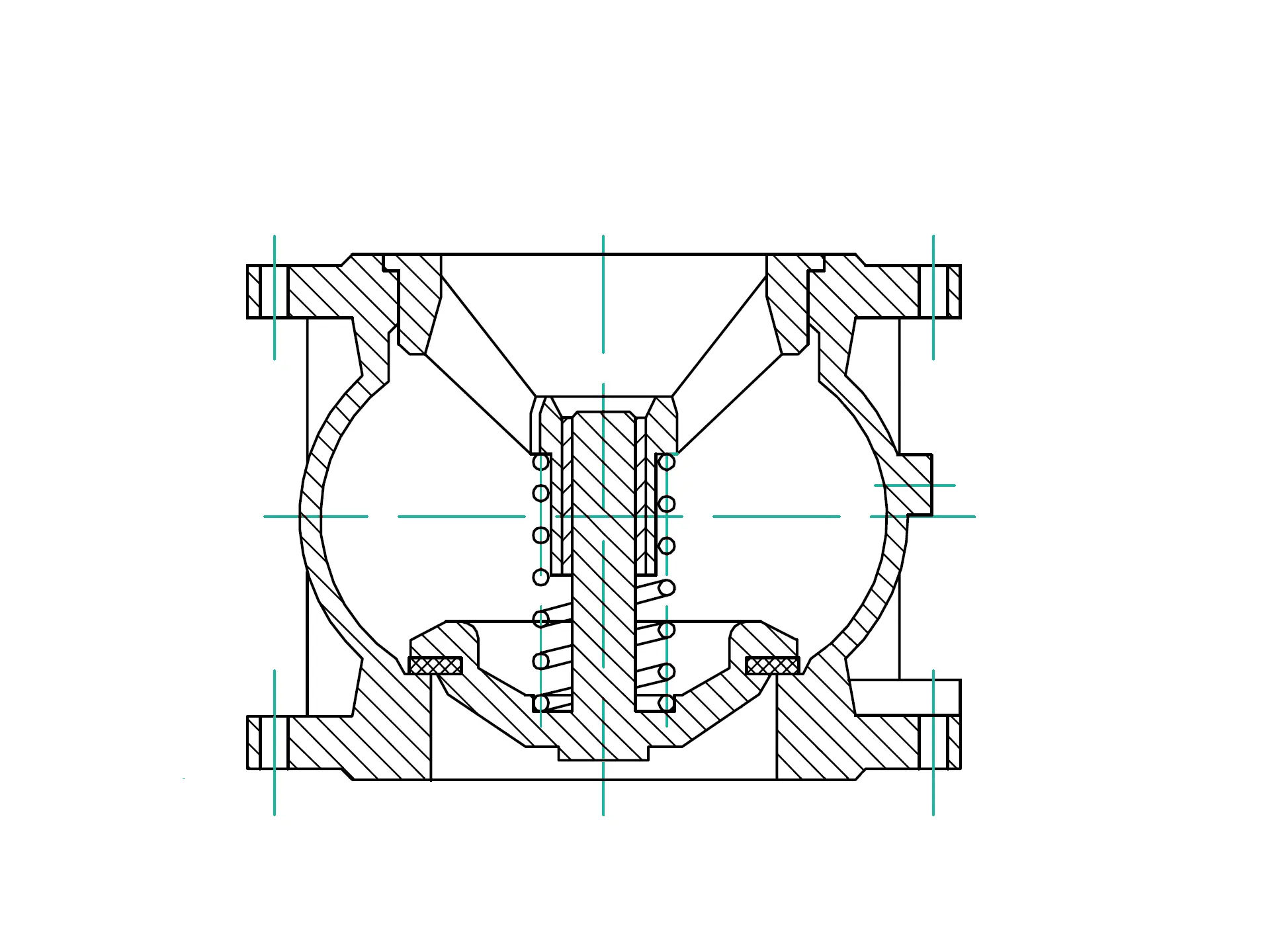

A silent check valve uses a spring-assisted disc that closes immediately when flow velocity decreases. This prevents the disc from slamming shut after flow reversal, which is the main cause of water hammer in traditional swing check valves. The result is quieter operation and better protection of pumps and pipelines.

When a pump stops, fluid momentum can reverse direction quickly. A silent check valve closes before reverse flow develops, preventing pump backspin, pressure surges, and potential damage to the pump impeller or piping system.

Water hammer occurs when flowing liquid suddenly stops or reverses direction, creating a pressure shock wave. Because a silent check valve has a spring-loaded closure, the disc moves toward the closed position while flow decelerates. This reduces the impact and prevents the sudden pressure spike typical in swing check valves.

Yes. Silent spring check valves can typically operate in both horizontal and vertical pipelines because the closing force comes from the spring rather than gravity. This makes them suitable for pump discharge lines where vertical installation is common.

"A wafer check valve is installed between two pipe flanges and held in place by the flange bolts. Compared with fully flanged designs, wafer valves are typically: More compact Lighter Easier to install Lower cost This makes them common in HVAC and industrial water systems."

"Silent check valves are preferred when: Water hammer must be avoided The valve is installed close to pumps Space is limited Low noise is important (e.g., HVAC systems) Swing check valves may still be used in very low velocity systems where pressure drop must be minimized."
