FOOT VALVE

FFV_B10_S42

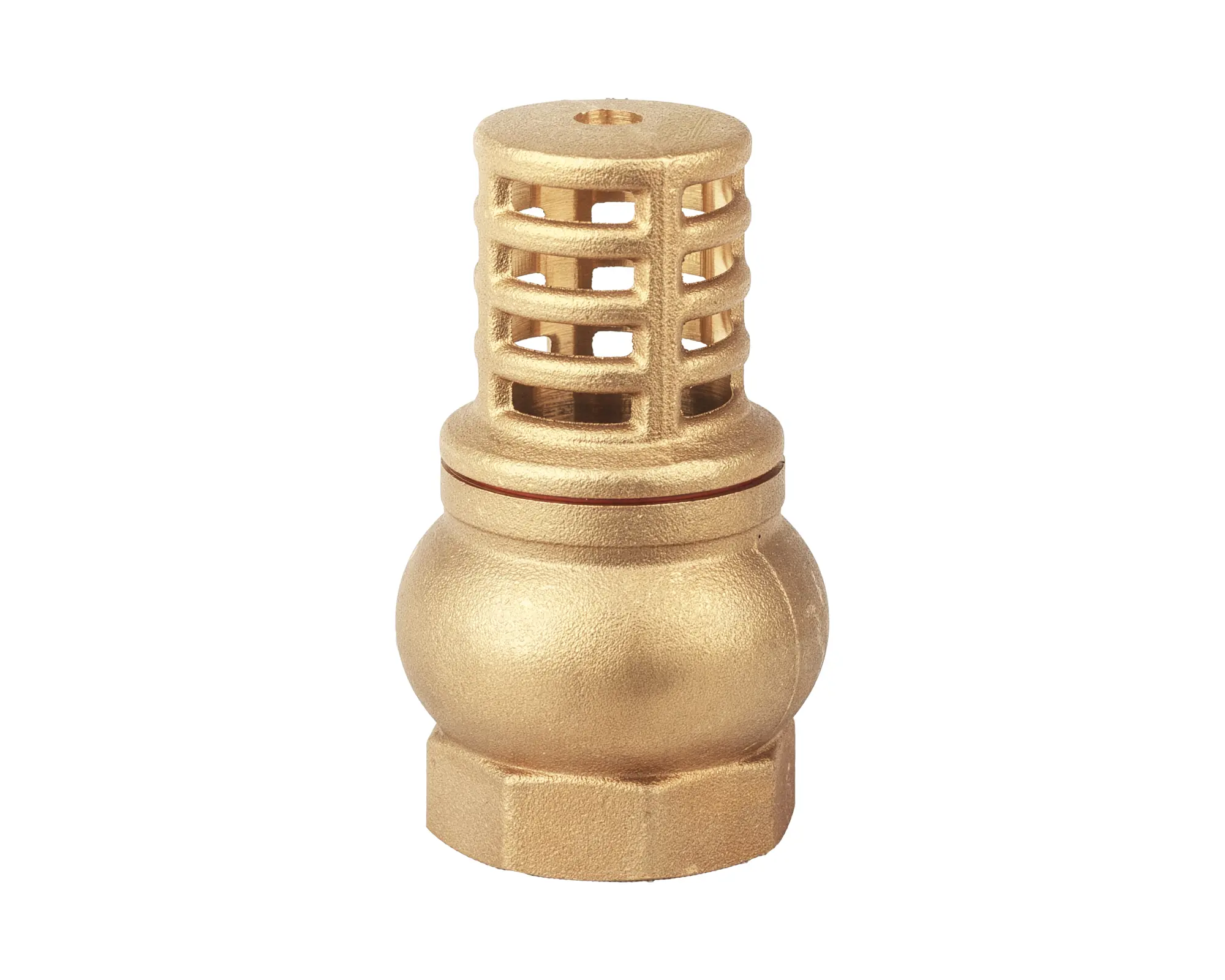

Model FFV_B10_S42
FFV_B10_S42
FFV_B10_S42

Summary Card

fuctionPrevent reverse flow and screen debris at pump suction
Valve typeFoot Valve with strainer – Threaded type
RangeDN 15 – 50
ConnectionISO 228
Material (Body)Brass Hpb57-3
Temperature rangeMax. 110 °C
Max. working pressure PN 10
MediaWater and neutral fluids
Find Distributor
Request Quote
Download Datasheet
  • View Drawing

Info

Use: Pump suction protection

Avoid: Isolation, regulation, and throttling

Why This Valve

Pump protection

Debris screening

Durable Brass construction

Self-acting operation

Product Overview

The FIVC Brass Foot Valve is a self-acting non-return valve with an integrated strainer designed for pump suction duty. It helps maintain pump priming, prevents reverse flow, and screens out solid impurities before they enter the pump.

Technical Specifications

FunctionPrevent reverse flow and screen debris at pump suction
Valve typeFoot Valve with strainer – Threaded type
OperationAutomatic non-return closing
ActuationSelf-operated (no external energy required)
Closing mechanismPressure-assisted disc
Strainer / ScreenIntegrated suction strainer
ConnectionISO 228

Materials

BodyBrass Hpb57-3
Brass Hpb57-3Brass Hpb57-3
DiscBrass Hpb57-3
Disc face / Guiding stemNBR
Gasket / SpringFiber
StrainerBrass Hpb57-3

Field of Application

Temperature rangeMax. 90 °C
Max. working pressure PN 10
MediaWater and neutral fluids

Key Features

Pump protectionHelps retain prime and prevent reverse flow back through the suction line
Debris screeningIntegrated strainer helps stop solid impurities from entering the pump
Durable Brass constructionBrass body and internals support dependable service in compact installations
Self-acting operationAutomatic closing without manual operation or external energy
Installation efficiencyCompact threaded design supports straightforward installation and servicing

Usage & Applications

UsagePrevent reverse flow and screen solids in pump suction duty for water extraction and transfer
ApplicationsUnderground wells, pump suction lines, industrial water, irrigation, water transfer systems

Declaration

EN 1092-2

Full Technical Data

Datasheet
Datasheet
Download

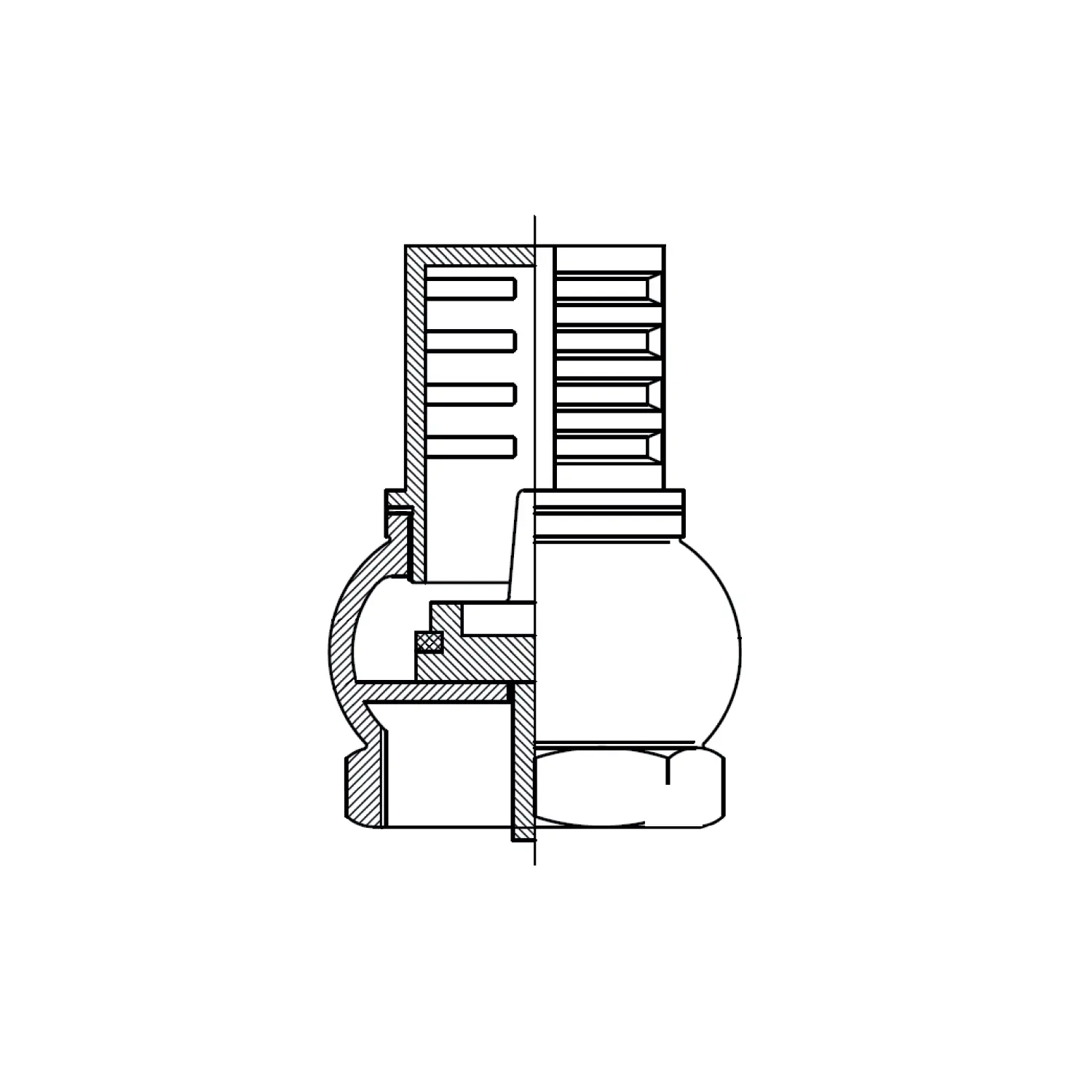

2D Drawing
2D Drawing
Download

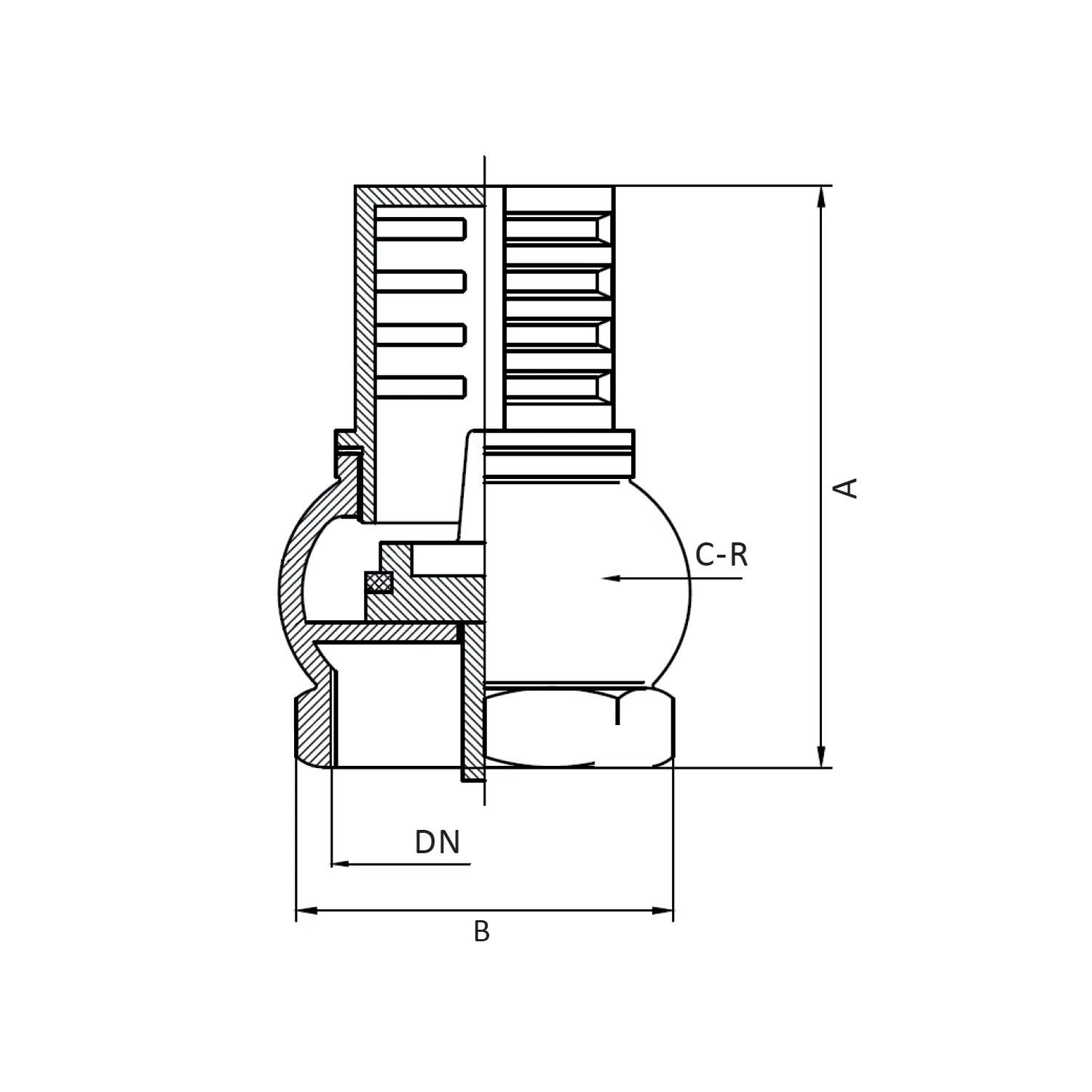

Quick Dimensions

FFV_B10_S42
Size (DN) A B C-R Kg
15 63 26 19.5 0.145
20 70 33 22.25 0.21
25 75.5 39.5 24 0.25
32 84 50 29.75 0.39
40 88 56.9 34 0.555
50 100 70 40 0.87

Full Technical Data

Datasheet
Datasheet
Download
2D Drawing
2D Drawing
Download
FFV_B10_S42

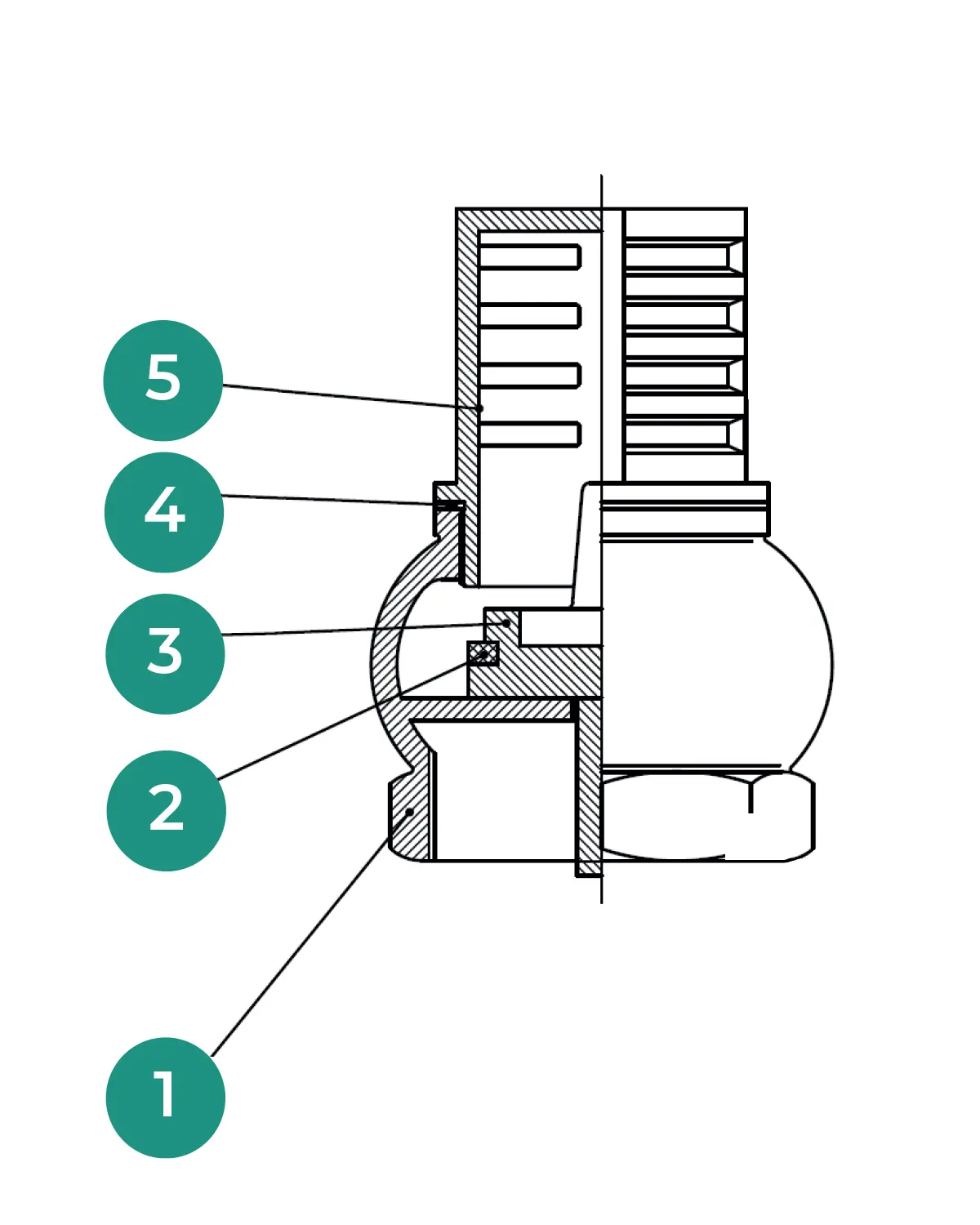

N° Name Material
1 Body Brass Hpb57-3
2 Disc face NBR
3 Disc Brass Hpb57-3
4 Gasket Fiber
5 Cover Brass Hpb57-3
Frequently Asked Questions
What is a foot valve and where is it installed? +
A foot valve is a non-return valve installed at the inlet of a pump suction line, usually at the submerged end of the pipe. Its job is to stop backflow when the pump stops and help keep the suction line primed.
Why does a foot valve include a strainer? +
The integrated strainer helps stop sand, debris, and other solid impurities from entering the pump. This protects the pump internals and reduces the risk of malfunction or premature wear.
Why is a foot valve important on pump suction lines? +
Without a foot valve, liquid in the suction line can drain back when the pump stops. That can lead to loss of prime, delayed restart, and extra stress on the pump. A foot valve helps the system restart more reliably.
Can a foot valve be used for isolation or throttling? +
No. A foot valve is intended for automatic non-return duty. It should not be selected as an isolation valve or for flow regulation and throttling.
What is the difference between the threaded and flanged foot valve versions? +
The threaded brass version suits smaller pipe sizes and compact installations. The flanged version covers larger sizes and adds spring-assisted silent closing with low head loss for industrial water duty.
When should a spring-assisted foot valve be preferred? +
A spring-assisted design is the stronger choice when you want faster closing, quieter operation, and better control of reverse-flow effects in larger industrial water systems.
