FOOT VALVE

FFV_C16_SCB220

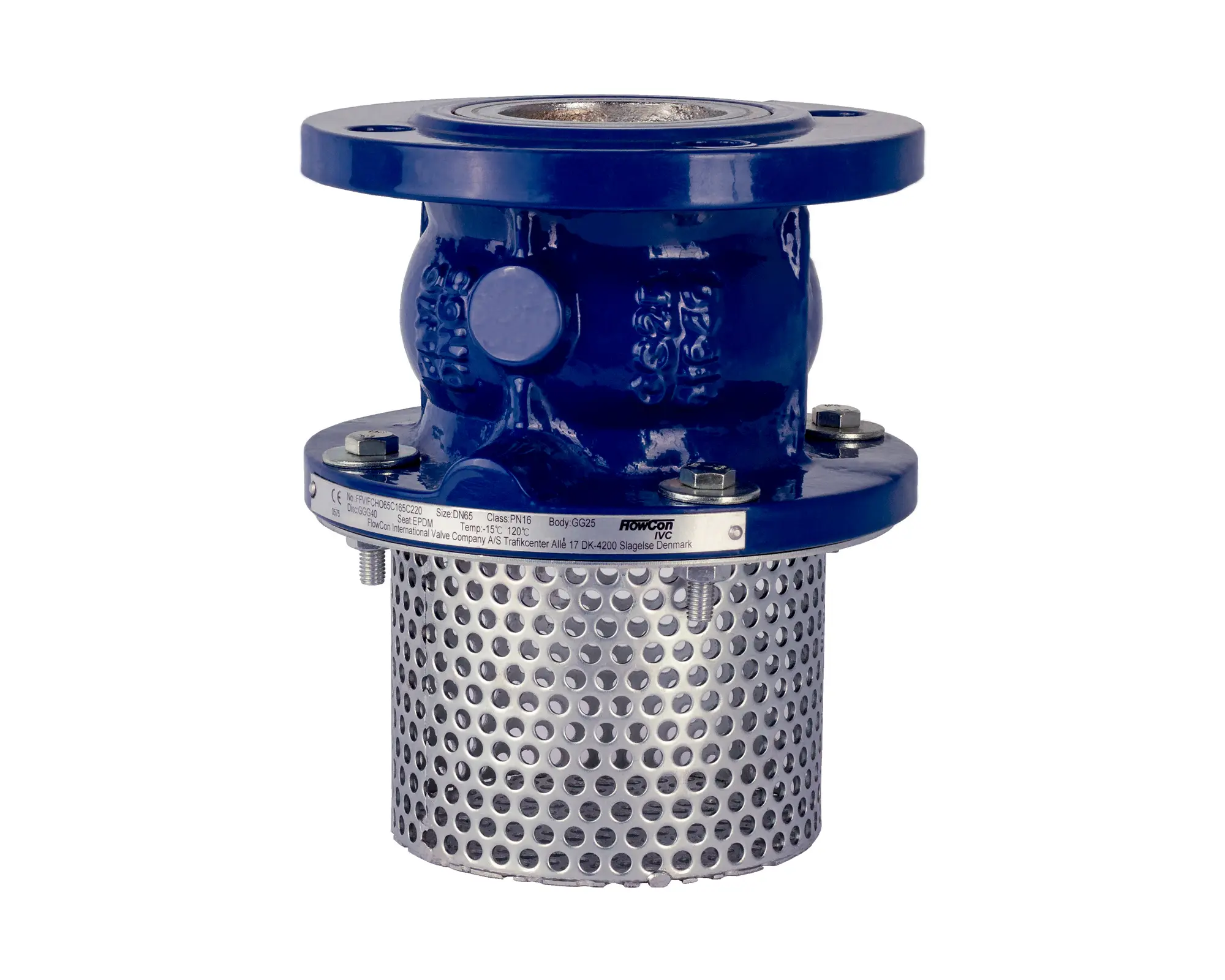

Model FFV_C16_SCB220
FFV_C16_SCB220
FFV_C16_SCB220

Summary Card

functionPrevent reverse flow and screen debris at pump suction
Valve typeFoot Valve with strainer – Flanged type
RangeDN 50 – 300
ConnectionEN 1092-2 PN 16
Material (Body)Grey Cast Iron GG25
Temperature range-10 to 120 °C
Max. working pressure PN 16
MediaIndustrial water and neutral fluids
Find Distributor
Request Quote
Download Datasheet
  • View Drawing

Info

Use: Pump suction protection

Avoid: Isolation, regulation, and throttling

Why This Valve

Pump protection

Debris screening

Silent closing

Low head loss

Product Overview

The FIVC Foot Valve is a spring-assisted non-return valve with an integrated strainer designed for pump suction duty in industrial water systems. It helps prevent reverse flow, protect the pump against solid impurities, and support efficient flow with silent closing and low head loss.

Technical Specifications

FunctionPrevent reverse flow and screen debris at pump suction
Valve typeFoot Valve with strainer – Flanged type
OperationAutomatic, spring-assisted closing
ActuationSelf-operated (no external energy required)
Closing mechanismSpring-loaded disc
ConnectionEN 1092-2 PN 16

Materials

BodyGrey Cast Iron GG25
Cover / GuideDuctile Iron GGG40
DiscDuctile Iron GGG40
Disc face / Guiding stemCopper Alloy CuZn40Pb2
Gasket / SpringStainless Steel
SealEPDM
StrainerCarbon Steel Q235, zinc-plated

Field of Application

Temperature range-10 to 120 °C
Max. working pressure PN 16
MediaIndustrial water and neutral fluids

Key Features

Silent closingSpring-assisted closing helps reduce slam and limit hydraulic shock
Pump protectionPrevents reverse flow and helps protect the pump during shutdown
Debris screeningIntegrated screen helps block solids before they reach the pump
Low head lossInternal design supports efficient flow with reduced pressure loss
Maintenance efficiencySelf-operated design helps reduce maintenance and operating effort

Usage & Applications

UsagePrevent reverse flow and screen solids in pump suction duty for industrial water systems
ApplicationsUnderground wells, pump suction lines, industrial water systems, irrigation, water transfer systems

Declaration

EN 1092-2

Full Technical Data

Datasheet
Datasheet
Download

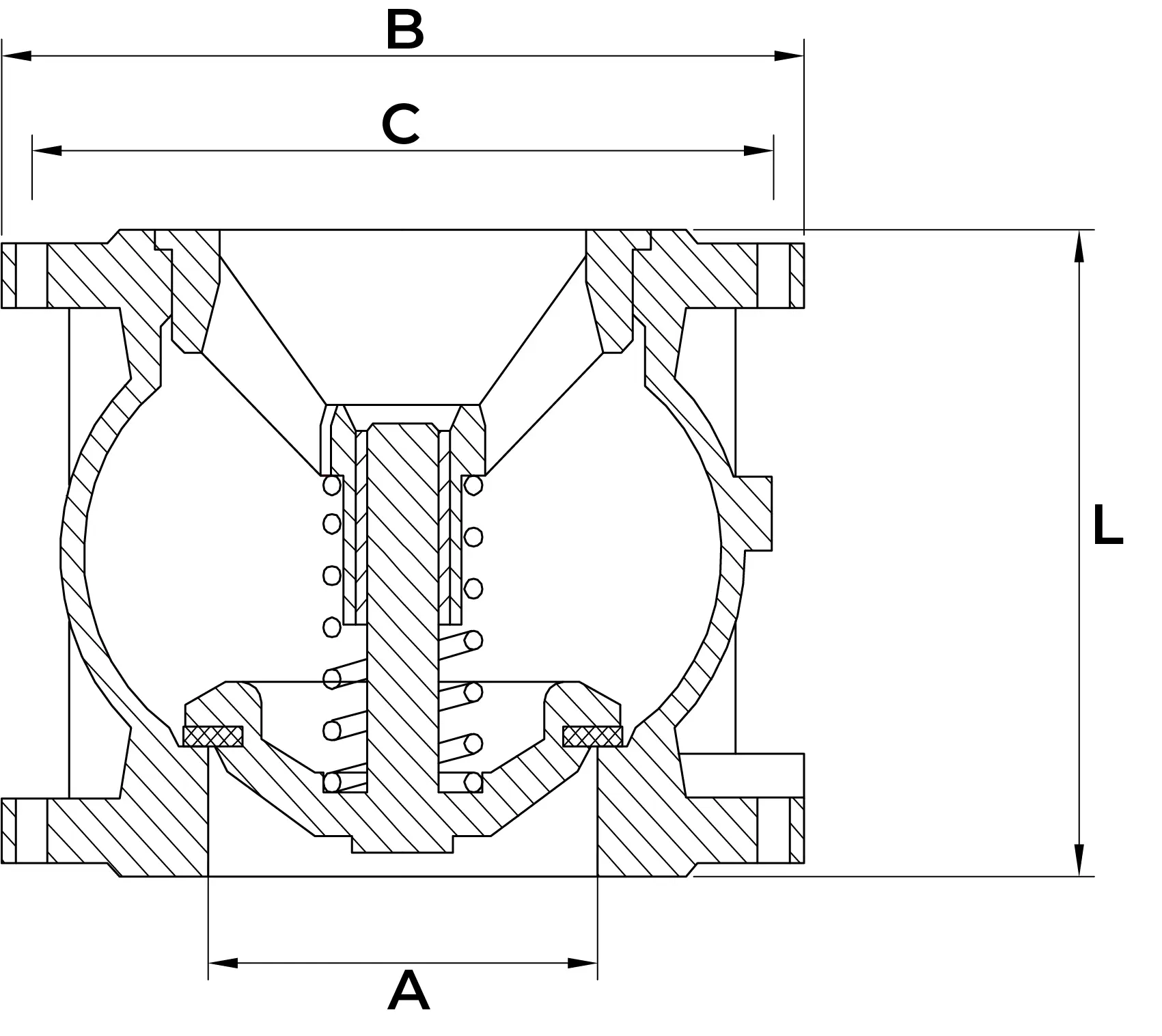

Quick Dimensions

FFV_C16_SCB220
Size (DN) L A B C n-ød L1 C D Kg
50 100 50 165 125 4-18.5 156 80 111 –
65 120 65 185 145 4-18.5 176 100 131 –
80 140 80 200 160 8-18.5 192 120 148 –
100 170 101 220 180 8-18.5 212 150 168 –
125 200 127 250 210 8-18.5 242 175 198 –
150 230 145.5 285 240 8-23 275 200 222 –
200 301 194 340 295 12-23 332 250 278 –
250 370 245 405 355 12-28 385 300 329 –
300 410 300 460 410 12-28 445 350 384 –

Full Technical Data

Datasheet
Datasheet
Download
FFV_C16_SCB220

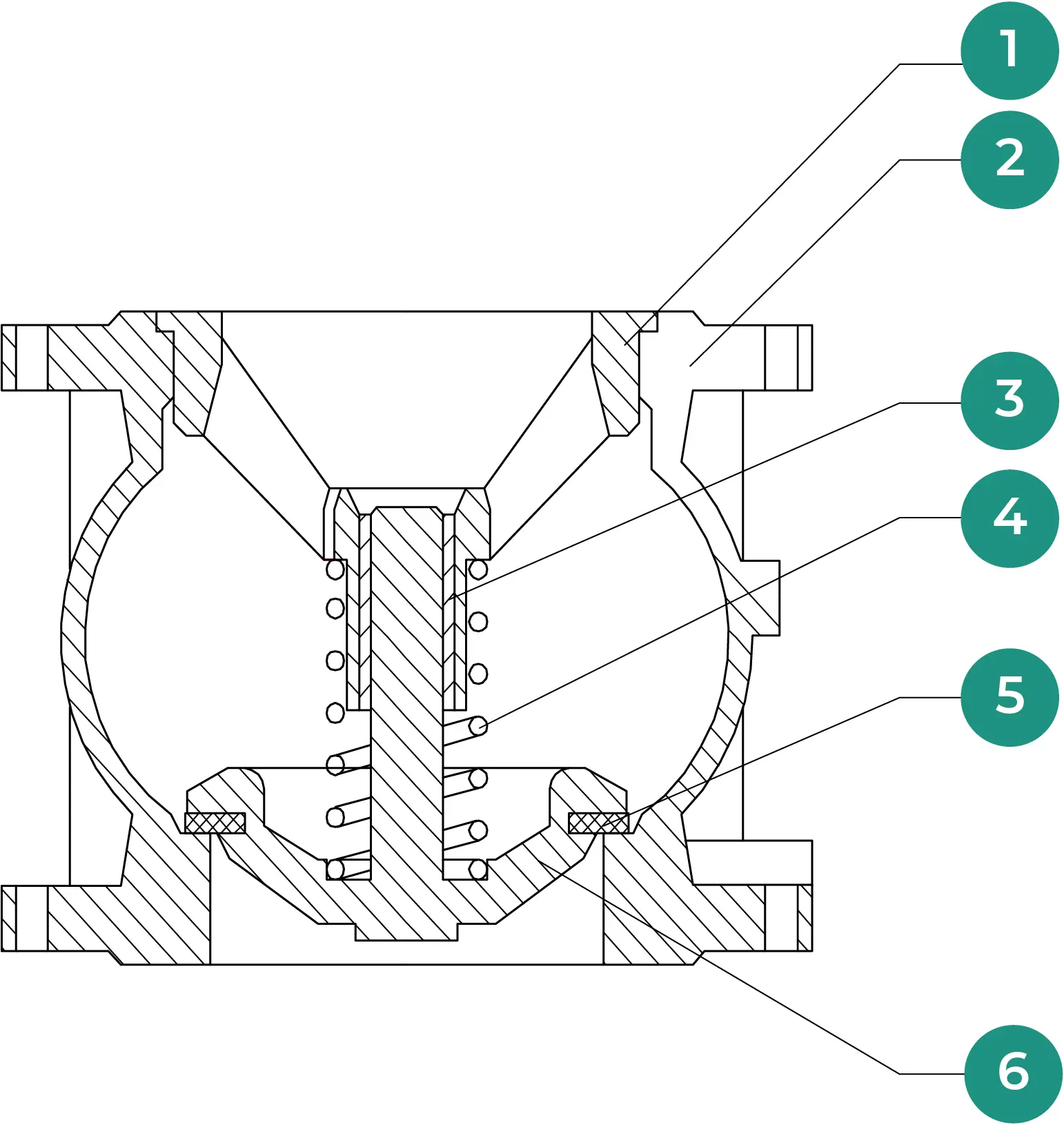

N° Name Material
1 Guide Ductile Iron GGG 40 CuZn40Pb2
2 Body Grey Cast Iron GG 25
3 Guiding stem Copper Alloy CuZn40Pb2
4 Spring Stainless Steel
5 Seal EPDM
6 Disc Ductile Iron GGG 40 CuZn40Pb2
7 Screen Carbon Steel Q235 Zinc-plated
