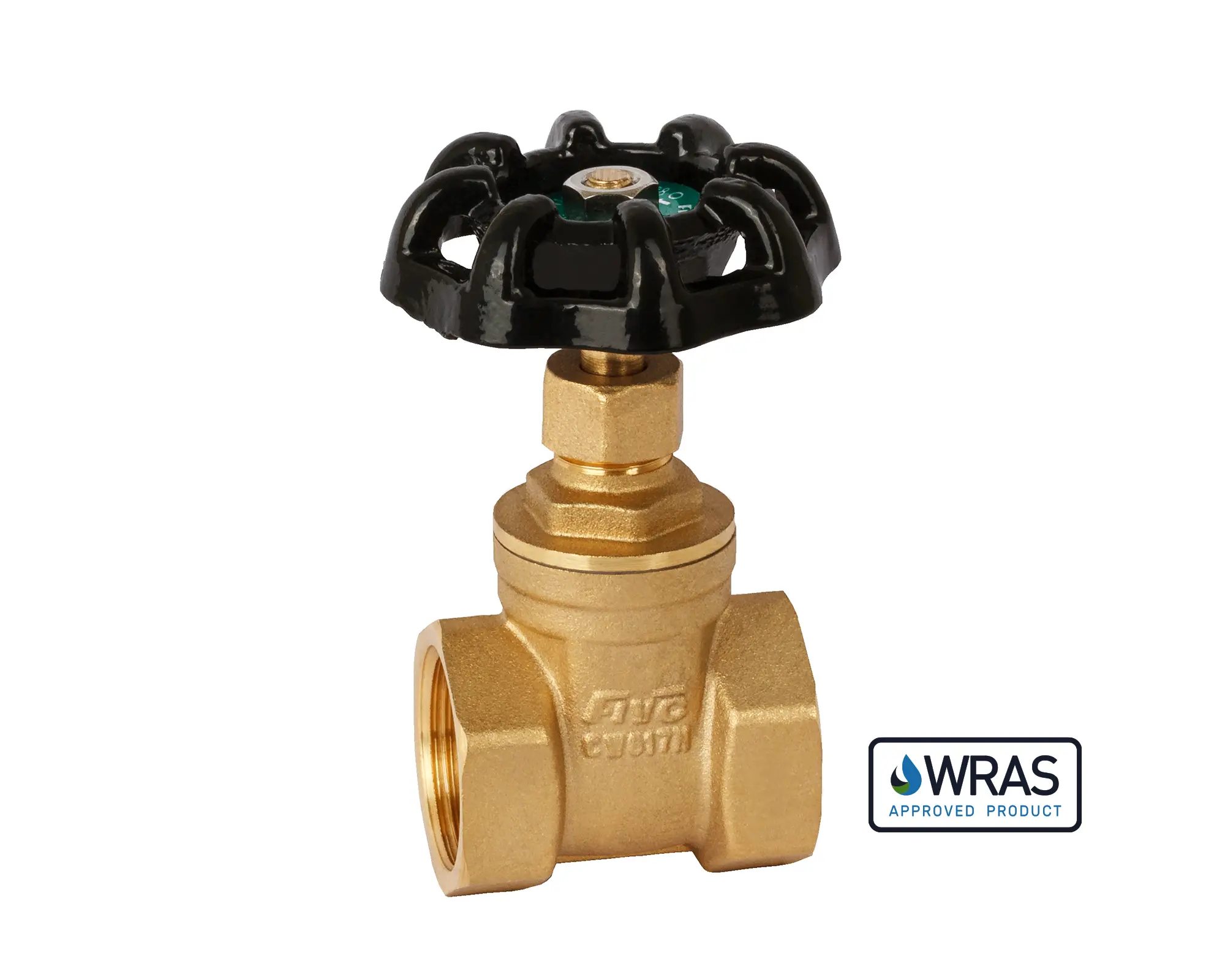

Model FGA_B16_NS01
FGA_B16_NS01
FGA_B16_NS01

Summary Card

FunctionOn-Off isolation
Stem typeNon-rising stem (NRS)
RangeDN 15 – 50
ConnectionISO 228
Material (Body)Brass CW617N
Temperature range0 to 85 °C
Max. working pressure PN 16
MediaPotable water
Approval WRAS-approved
Find Distributor
Request Quote
Download Datasheet
  • View Drawing

Info

Use: On-off isolation

Avoid: Throttling and regulation

Why This Valve

WRAS approved

WRAS approved

Ready for drinking water

Full flow isolation

Full flow isolation

Need content

Tight shut-off

Tight shut-off

Need content

Built for demanding systems

Built for demanding systems

Need content

Product Overview

The FIVC Bronze Gate Valve is designed for dependable full-flow isolation in potable water systems.
Its straight-through design ensures minimal pressure loss, while the solid bronze construction delivers long-term durability and tight shut-off performance.

Technical Specifications

FunctionOn-Off isolation
Stem typeNon-rising stem (NRS)
Bonnet typeScrewed bonnet
StandardBS EN 5154
ConnectionISO 228
External operationHandwheel
Testing standards"BS EN 12266-1 Shell test pressure: 2.40 MPa Sealing pressure: 1.76 MPa"

Materials

BodyBrass CW617N
BonnetBrass CW617N
WedgeBrass CW617N
StemBrass CW617N
SeatBrass CW617N (integral in body)

Field of Application

Temperature range0 to 85 °C
Max. working pressure PN 16
MediaPotable water
Approval WRAS-approved

Key Features

Corrossion resistanceOf durable materials, exhibiting excellent corrosion resistance.
WRAS-approvedCertified for potable water installations and compliant with drinking water regulations.
Optimized flow efficiencyStraight-through bore minimizes pressure loss, supporting energy-efficient system operation.
Reliable mechanical operationNon-rising stem design ensures secure operation in confined installations.
Secure shut-off Provides tight isolation for secure system operation.

Usage & Applications

UsageFlow isolation. Avoid throttling and regulation
ApplicationsPotable water, HVAC, Plumbing, Chilled Water, Filtration, Irrigation, Water management

Declaration

ISO 228, WRAS

Full Technical Data

Datasheet
Datasheet
Download

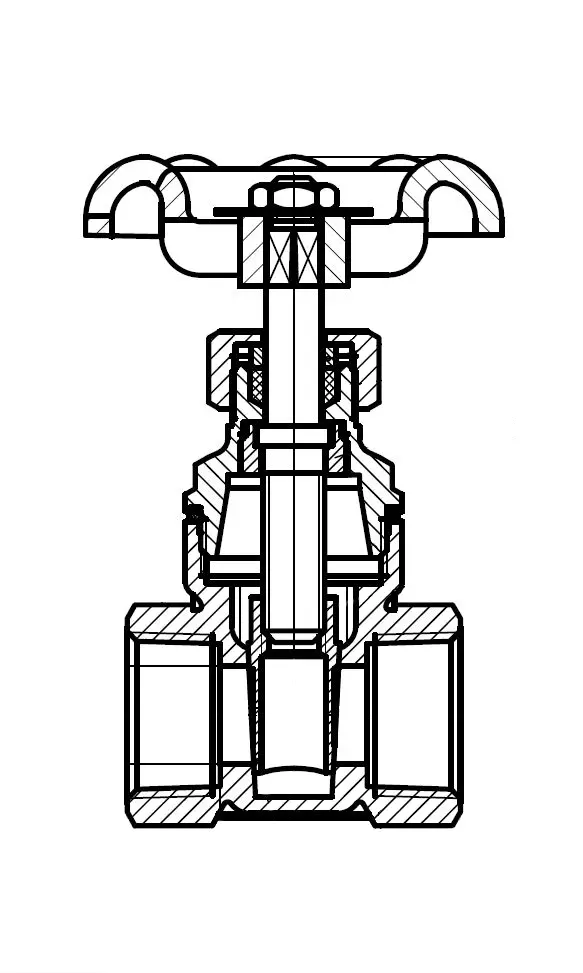

2D Drawing
2D Drawing
Download

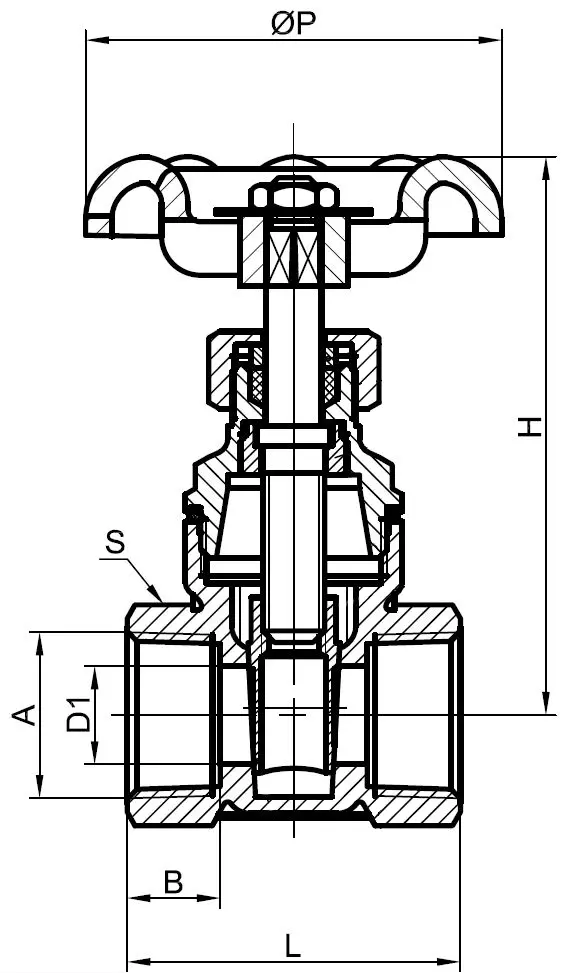

Quick Dimensions

FGA_B16_NS01
Size L H D1 (Ø) ØP A B S
15 41 72 14 54 G1/2 12 25
20 43 74 15 54 G3/4 12 31
25 48 86 19.7 59.3 G1 15.4 38.5
32 59 105 27.5 73 G1 1/4 15 48.5
40 60 120 35 73 G1 1/2 16 53
50 67 138 45 79 G2 18.5 66

Full Technical Data

Datasheet
Datasheet
Download
2D Drawing
2D Drawing
Download

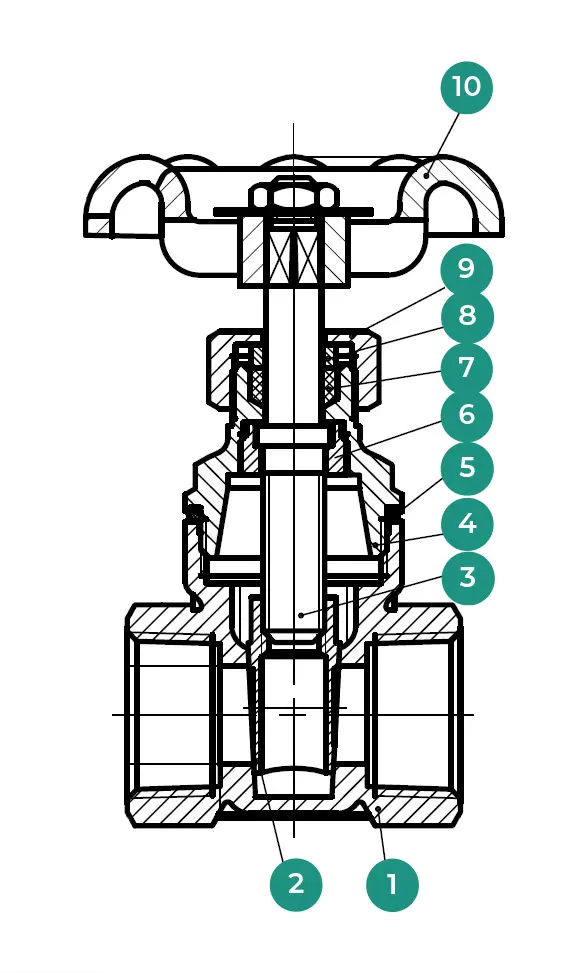

FGA_B16_NS01

N° Name Material
1 Body Brass CW617N
2 Wedge Brass CW617N
3 Stem Brass CW617N
4 Bonnet Brass CW617N
5 Bonnet washer PTFE
6 Stem nut Brass CW617N
7 Stem packing PTFE
8 Packing gland Brass CW617N
9 Compression nut Brass C37700
10 Handwheel nut HT 200
11 Handwheel HT 200
