Use: On-off isolation
Avoid: Throttling and regulation
Ready for drinking water
Need content
Need content
Visible Position
The FIVC Gate Valve is designed for dependable full-flow isolation in potable water systems. Its straight-through design ensures minimal pressure loss, while the robust ductile iron construction delivers long-term durability and tight shut-off performance. The rising stem design also provides clear visual confirmation of valve position while keeping critical threads outside the flow for improved reliability.

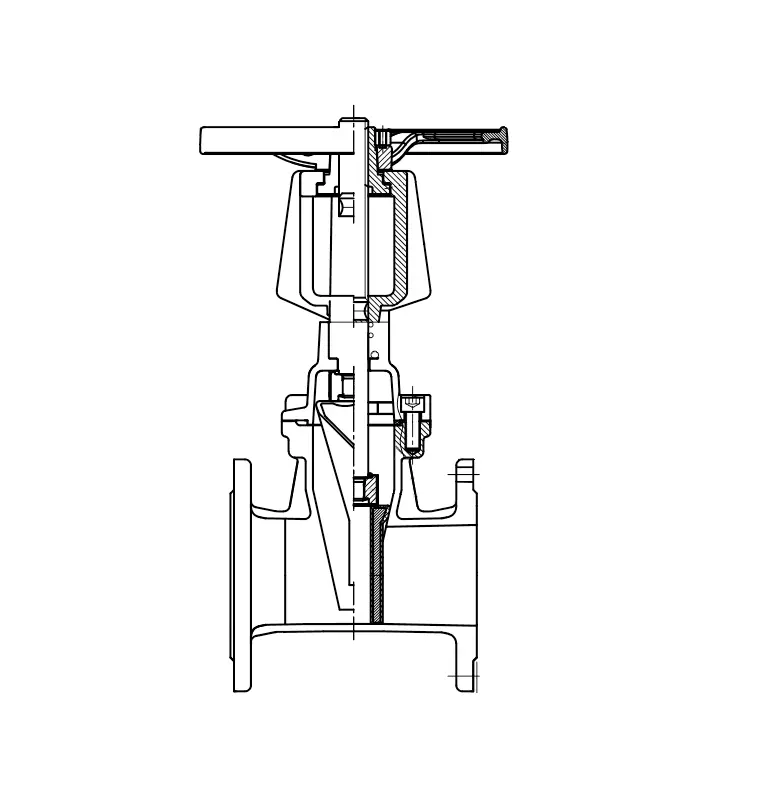

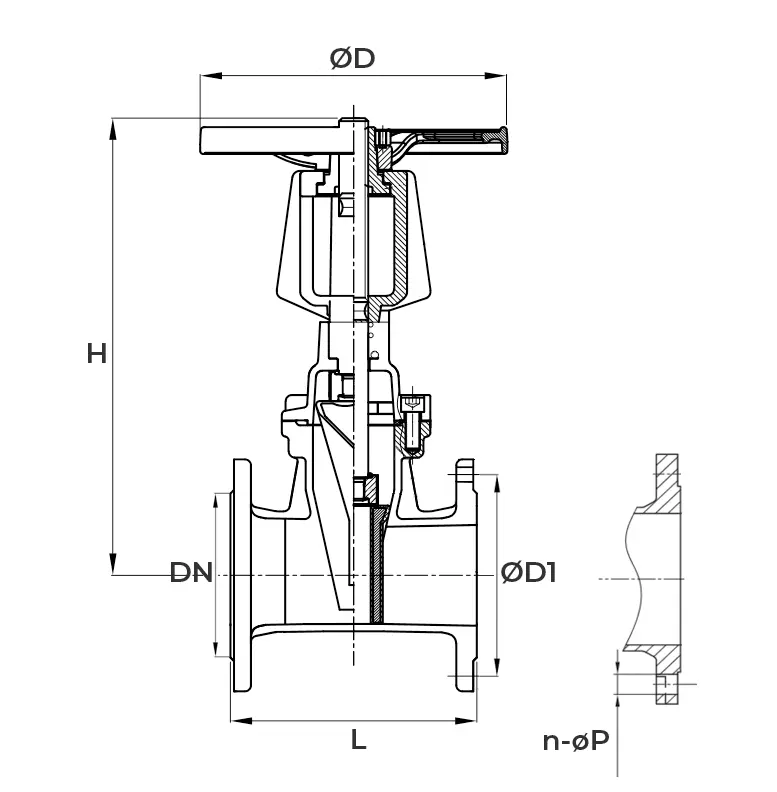

| Size | L | D | H | Kg | D1 | N-ød |
|---|---|---|---|---|---|---|
| 50 | 178 | 160 | 350 | 10.0 | 125 | 4-ø19 |
| 65 | 190 | 160 | 380 | 11.5 | 145 | 4-ø19 |
| 80 | 203 | 180 | 455 | 14.0 | 160 | 8-ø19 |
| 100 | 229 | 200 | 548 | 20.0 | 180 | 8-ø19 |
| 125 | 254 | 250 | 618 | 31.0 | 210 | 8-ø19 |
| 150 | 267 | 250 | 747 | 36.5 | 240 | 8-ø23 |
| 200 | 292 | 300 | 942 | 62.0 | 295 | 12-ø23 |
| 250 | 330 | 350 | 1144 | 90.0 | 355 | 12-ø28 |
| 300 | 356 | 400 | 1328 | 120 | 410 | 12-ø28 |
| 350 | 381 | 500 | 1410 | 167 | 470 | 16-ø28 |
| 400 | 406 | 500 | 1685 | 233 | 525 | 16-ø31 |
Dimensions are in millimeters.

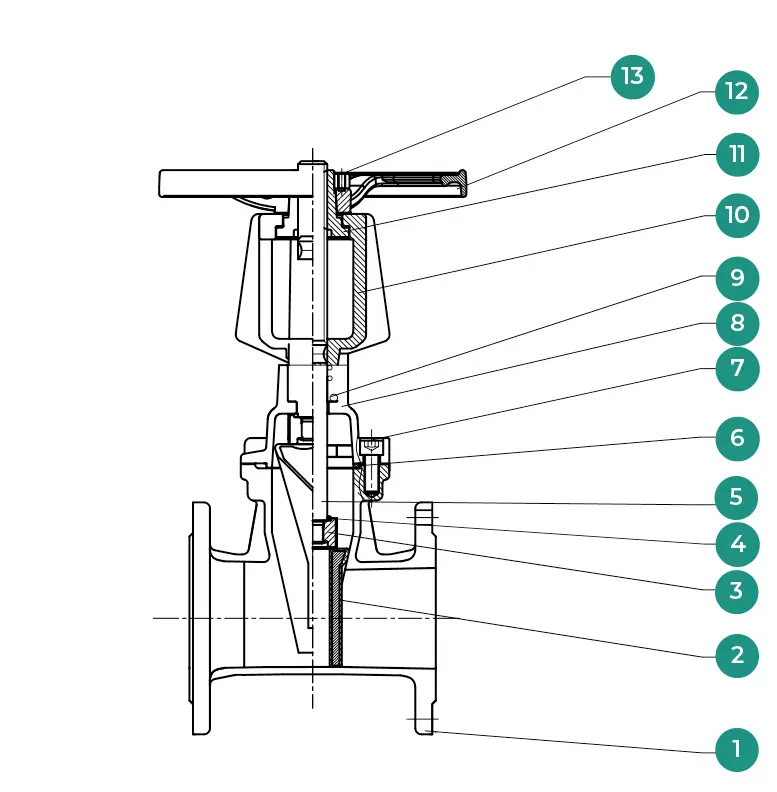

| N° | Name | Material |
|---|---|---|
| 1 | Body | Ductile Iron GGG40 |
| 2 | Wedge | Ductile Iron GGG40 + EPDM |
| 3 | Stem Nut | Brass HMn58-2 |
| 4 | O-Ring | EPDM |
| 5 | Stem | Stainless Steel SS420 |
| 6 | Sealing ring | EPDM |
| 7 | Hexagon Bolt | Carbon Steel |
| 8 | Bonnet | Ductile Iron GGG40 |
| 9 | Gasket | EPDM |
| 10 | Attachment Bracket | Ductile Iron GGG40 |
| 11 | Handwheel Lock Nut | Brass HMn58-2 |
| 12 | Handwheel | Ductile Iron |
| 13 | Hexagon Bolt | Carbon Steel GGG40 |
