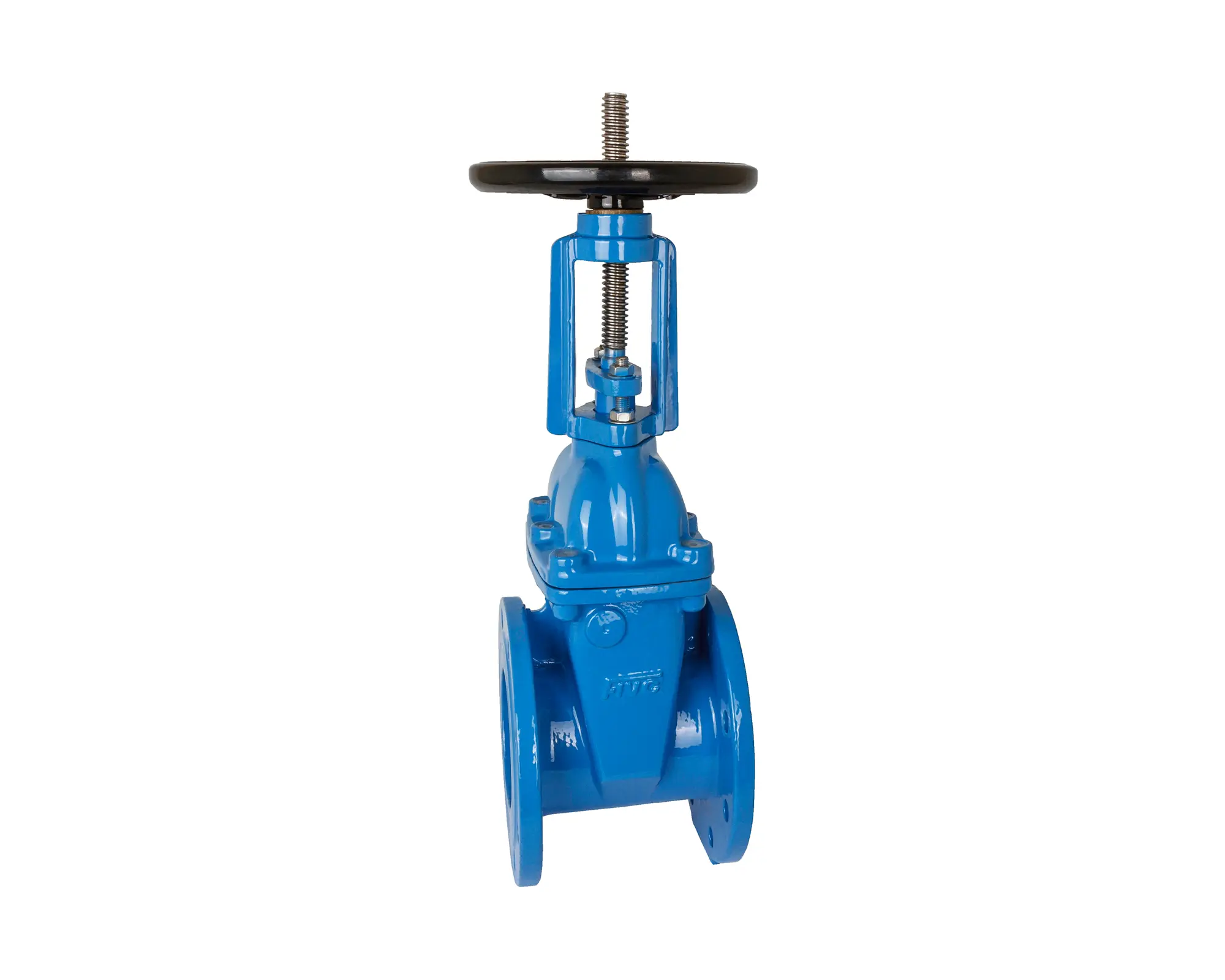

Gate Valves

FGA_N16_RB241

Model FGA_N16_RB241

Summary Card

FunctionOn-Off isolation

Stem typeRising stem (OS&Y)

RangeDN 50 – 600

ConnectionEN 1092-2 PN 16

DimensionsFace-to-Face EN 558-1 series 14

Material (Body)Ductile Iron GGG40

Temperature range-10 to 120 °C

Max. working pressure PN 16

MediaWater

Approval

Download Datasheet

Info

Use: On-off isolation
Avoid: Throttling and regulation

Why This Valve

Full flow isolation

Need content

Tight shut-off

Need content

Visible Position

Minimum pressure loss

Product Overview

The FIVC Gate Valve is designed for dependable full-flow isolation in water systems. Its straight-through design ensures minimal pressure loss, while the robust ductile iron construction delivers long-term durability and tight shut-off performance. The rising stem design also provides clear visual confirmation of valve position while keeping critical threads outside the flow for improved reliability.

Technical Specifications

FunctionOn-Off isolation

Stem typeRising stem (OS&Y)

Bonnet typeBolted bonnet

StandardDIN 3202 F4

ConnectionEN 1092-2 PN 16

DimensionsFace-to-Face EN 558-1 series 14

External operationHandwheel

Testing standardsBS EN 12266-1 Shell test pressure: 2.40 MPa Sealing pressure: 1.76 MPa

Materials

BodyDuctile Iron GGG40

BonnetDuctile Iron GGG40

WedgeDuctile Iron GGG40 + EPDM

StemStainless Steel 420

SeatDuctile Iron GGG40 (integral in body)

Field of Application

Temperature range-10 to 120 °C

Max. working pressure PN 16

MediaWater

Approval

Key Features

Corrossion resistanceOf durable materials, exhibiting excellent corrosion resistance.

Optimized flow efficiencyStraight-through bore minimizes pressure loss, supporting energy-efficient system operation.

Visible valve positionInstant visual confirmation of valve position while keeping critical threads outside the flow.

Secure shut-off Provides tight isolation for secure system operation.

Usage & Applications

UsageFlow isolation. Avoid throttling and regulation

ApplicationsPotable water, HVAC, Plumbing, Chilled Water, Filtration, Irrigation, Water management

Declaration

Full Technical Data

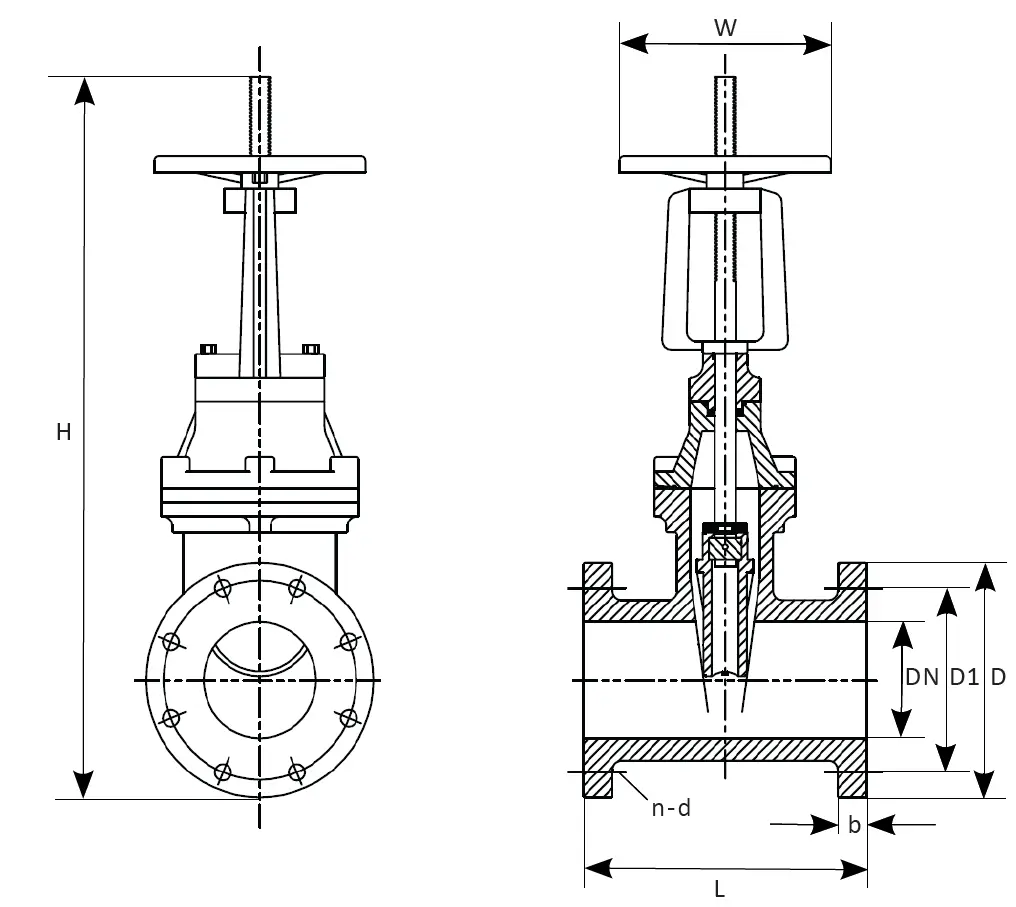

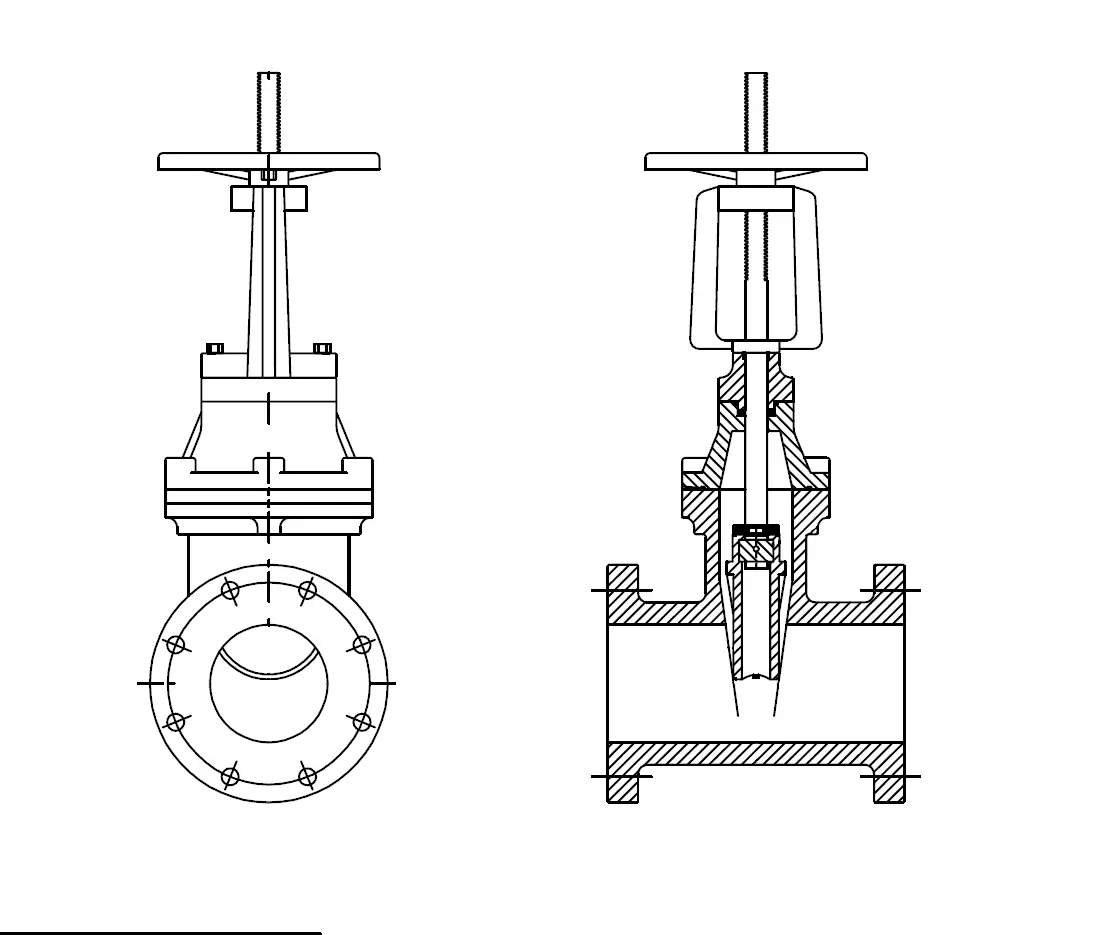

Quick Dimensions

Size	L	D	D1	W	b	n	d	H	Kg
50	150	165	125	160	18	4	18	355	9.8
65	170	185	145	160	18	4	18	388	14
80	180	200	160	200	18	8	18	452	17
100	190	220	180	200	19	8	18	479	21
125	200	250	210	240	19	8	18	613	30
150	210	285	240	240	19	8	22	643	39
200	230	340	295	300	22	12	22	806	57
250	250	405	355	350	22	12	26	1030	95
300	270	460	410	350	26	12	26	1270	122
350	290	520	470	460	28	16	26	1500	168
400	310	580	525	550	30	16	30	1760	215
450	330	640	585	550	30	20	30	2070	320
500	350	715	650	550	32	20	33	2180	370
600	390	840	770	550	36	20	36	2330	560

Dimensions are in millimeters.

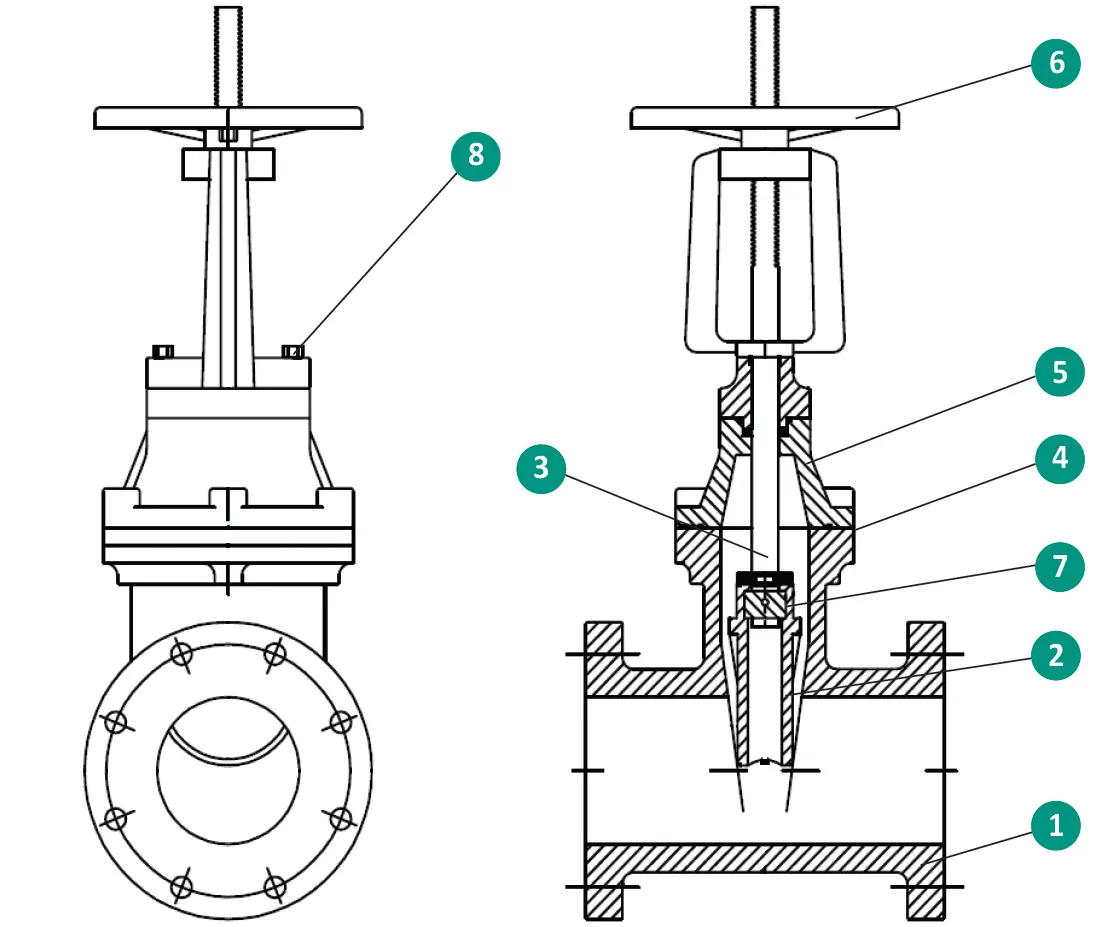

Full Technical Data

N°	Name	Material
1	Body	Ductile Iron GGG40
2	Disc	Ductile Iron GGG40 + EPDM
3	Stem	Stainless Steel 420
4	Bonnet gasket	EPDM
5	Bonnet	Ductile Iron
6	Hand wheel	Ductile Iron
7	Wedge nut	Brass
8	Bolts and nuts	Stainless Steel

Frequently Asked Questions

Need Help?

Get in touch with our experts

Your personal information will be processed in accordance with our Privacy Policy.

Gate Valves

FGA_N16_RB241

Summary Card

Info

Why This Valve

Full flow isolation

Tight shut-off

Visible Position

Minimum pressure loss

Product Overview

Technical Specifications

Materials

Field of Application

Key Features

Usage & Applications

Declaration

Full Technical Data

Quick Dimensions

Full Technical Data
