Gate Valves

FGA_O20_NS75

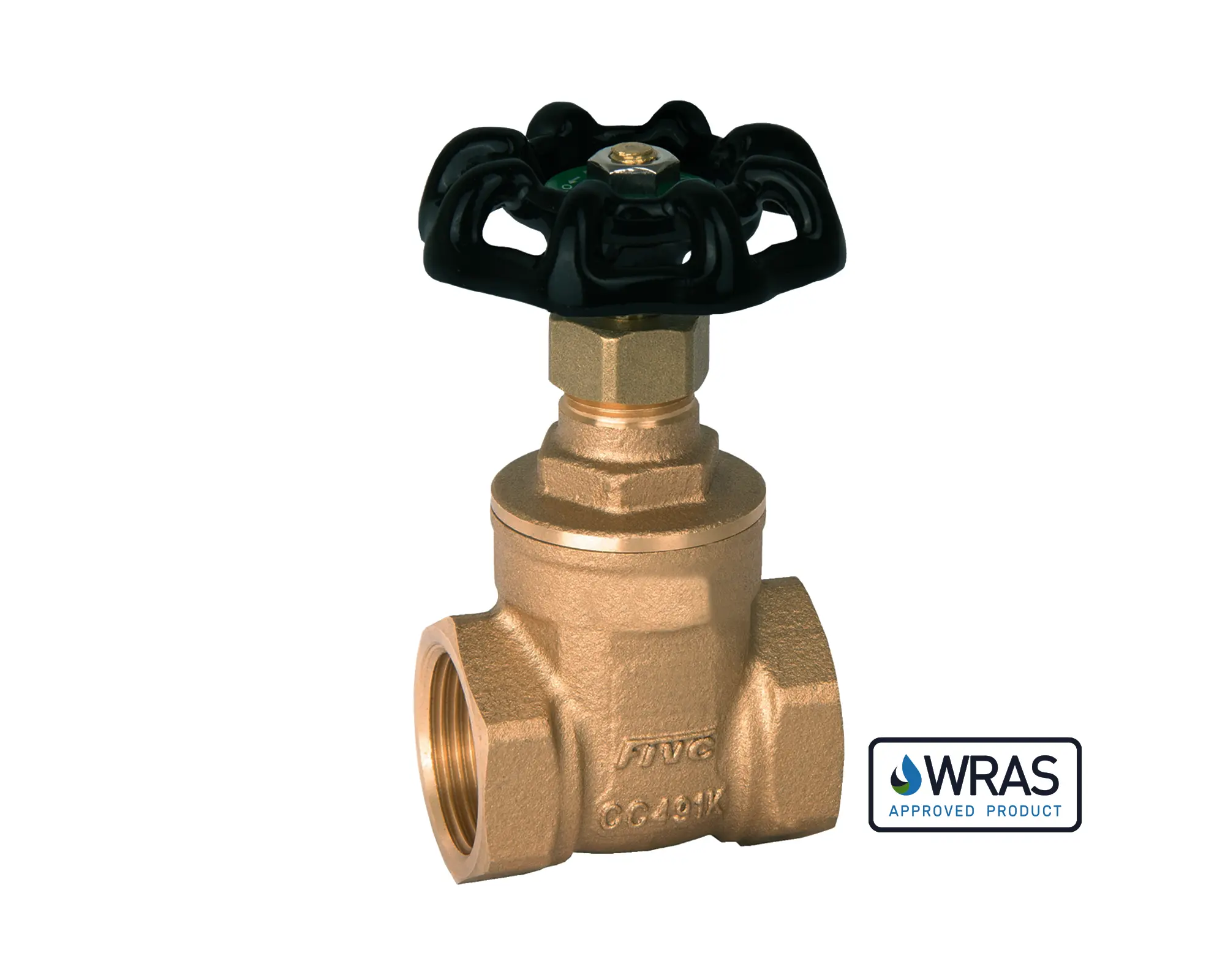

Model FGA_O20_NS75
FGA_O20_NS75
FGA_O20_NS75

Summary Card

FunctionOn-Off isolation
Stem typeRising stem (OS&Y)
RangeDN 50 – 600
ConnectionEN 1092-2 PN 16
DimensionsFace-to-Face EN 558-1 series 14
Material (Body)Ductile Iron GGG40
Temperature range-10 to 120 °C
Max. working pressure PN 16
MediaWater
Find Distributor
Request Quote
Download Datasheet
  • View Drawing

Info

Use: On-off isolation

Avoid: Throttling and regulation

Why This Valve

WRAS approved

WRAS approved

Ready for drinking water

Full flow isolation

Full flow isolation

Need content

Tight shut-off

Tight shut-off

Need content

Built for demanding systems

Built for demanding systems

Need content

Product Overview

The FIVC Gate Valve is designed for dependable full-flow isolation in water systems. Its straight-through design ensures minimal pressure loss, while the robust ductile iron construction delivers long-term durability and tight shut-off performance. The rising stem design also provides clear visual confirmation of valve position while keeping critical threads outside the flow for improved reliability.

Technical Specifications

FunctionOn-Off isolation
Stem typeRising stem (OS&Y)
Bonnet typeBolted bonnet
StandardDIN 3202 F4
ConnectionEN 1092-2 PN 16
DimensionsFace-to-Face EN 558-1 series 14
External operationHandwheel
Testing standards"BS EN 12266-1 Shell test pressure: 2.40 MPa Sealing pressure: 1.76 MPa"

Materials

BodyDuctile Iron GGG40
BonnetDuctile Iron GGG40
WedgeDuctile Iron GGG40 + EPDM
StemStainless Steel 420
SeatDuctile Iron GGG40 (integral in body)

Field of Application

Temperature range-10 to 120 °C
Max. working pressure PN 16
MediaWater

Key Features

Corrossion resistanceOf durable materials, exhibiting excellent corrosion resistance.
Optimized flow efficiencyStraight-through bore minimizes pressure loss, supporting energy-efficient system operation.
Visible valve positionInstant visual confirmation of valve position while keeping critical threads outside the flow.
Secure shut-off Provides tight isolation for secure system operation.

Usage & Applications

UsageFlow isolation. Avoid throttling and regulation
ApplicationsPotable water, HVAC, Plumbing, Chilled Water, Filtration, Irrigation, Water management

Declaration

EN 1092-2

Full Technical Data

Datasheet
Datasheet
Download

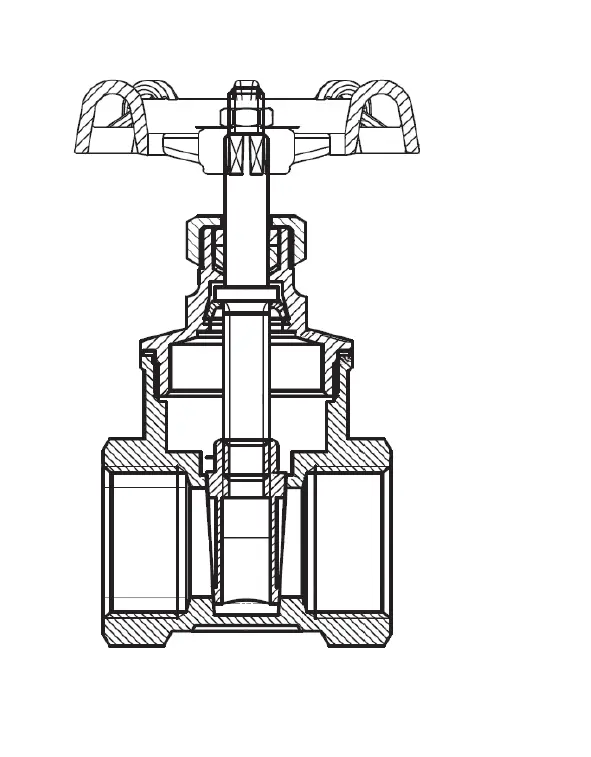

2D Drawing
2D Drawing
Download

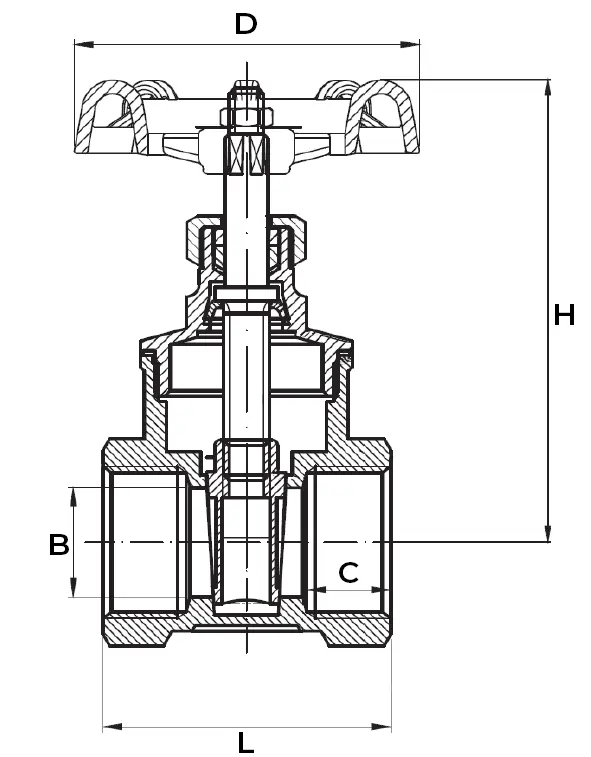

Quick Dimensions

FGA_O20_NS75
Size L D H B C Kg
15 45.0 53 71.5 15 12.0 0.3
20 48.5 60 81.0 20 12.5 0.4
25 55.0 72 94.7 25 14.0 0.5
32 61.0 72 108.0 32 15.0 0.8
40 63.0 80 122.5 38 15.0 1.0
50 73.0 100 147.0 50 17.5 1.7

Full Technical Data

Datasheet
Datasheet
Download
2D Drawing
2D Drawing
Download
FGA_O20_NS75

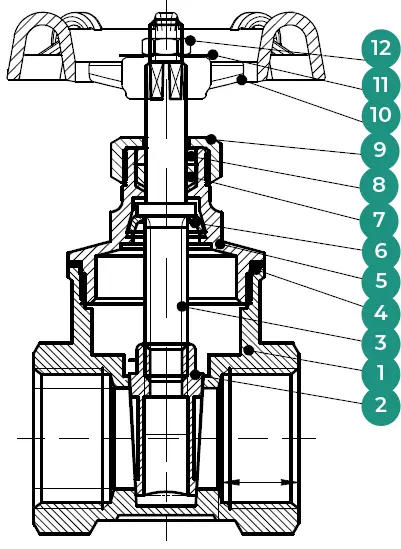

N° Name Material
1 Body Bronze CC491K
2 Disc Bronze CC491K
3 Stem DZR CZ132A
4 Washer PTFE
5 Bonnet Bronze CC491K
6 Lock nut Brass CS8000
7 Packing PTFE
8 Gland Brass CS8000
9 Packing nut Brass CW617N
10 Hand wheel HT 200
11 Nameplate L2
12 Hex nut Stainless Steel 304
Frequently Asked Questions
What type of valve is this? +
"It is a linear-operated gate valve designed for full-flow pipeline isolation. The valve operates by raising or lowering a wedge to open or close the flow path."
Is the valve CE marked? +
No. According to PED 2014/68/EU Art. 4.3, it is manufactured under Sound Engineering Practice (SEP) and therefore exempt from CE marking.
What stem types are available? +
"The valve is available in both rising stem and non-rising stem configurations. What this means in practice: Rising stem: The stem moves upward when the valve opens, providing clear visual position indication. Non-rising stem: The stem remains in position while operating, making it suitable for installations with limited vertical space."
What is the advantage of a full-flow gate valve design? +
"A gate valve: Provides minimal pressure loss when fully open Maintains full flow capacity Reduces unnecessary turbulence Supports efficient system operation This makes it ideal for isolation in systems where flow performance is important."
Can this valve be used for flow regulation? +
"No. Gate valves are designed for isolation only and should be operated in fully open or fully closed positions. For continuous regulation or throttling, a globe valve or control valve is typically the better engineering choice."
