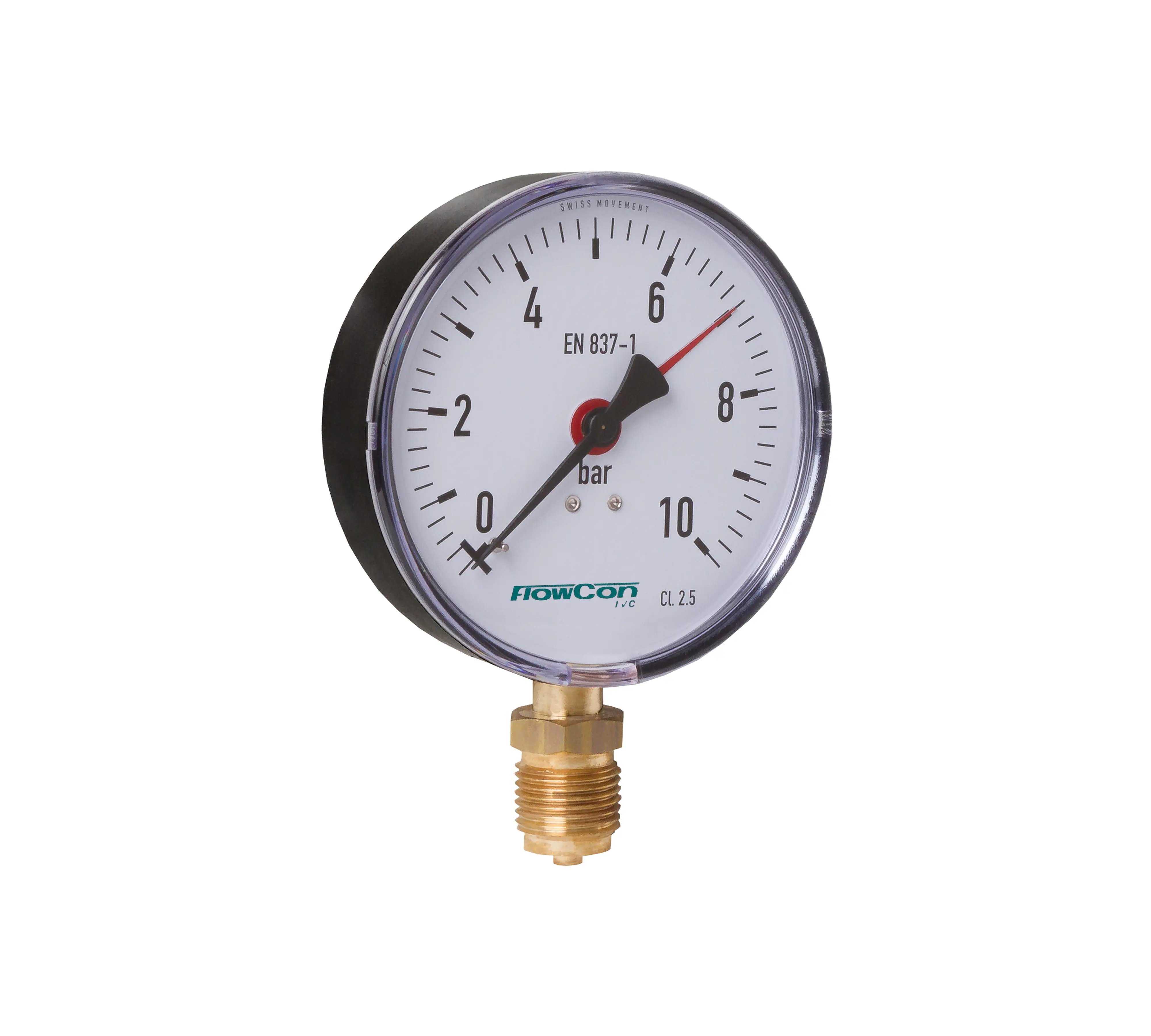

Model FPGB_P010
FPGB_P010
FPGB_P010

Summary Card

FunctionPressure measurement
Gauge typeBourdon pressure gauge
Nominal size40, 50, 63, 80, 100, 160
Scale range0-10 bar
Process connectionMale, lower mount
MaterialCase:Plastic, black,Process connection:Copper Alloy,Window:Plastic, crystal-clear, snap-fitted in case
Temperature rangeAmbient: -20 to 60 °C Medium: max. +60 °C
Max. working pressure0-10 bar
Accuracy classCl. 2.5
Design standardEN 837-1
MediaGaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
Find Distributor
Request Quote
Download Datasheet
  • View Drawing

Info

Use: Local pressure indication and monitoring
Avoid: Media that are highly viscous, crystallising or attack copper alloy parts

Why This Valve

Clear pressure reading

Cost-effective monitoring

Easy installation

General-purpose service

Product Overview

The IFPGB_P010 is a Bourdon-type gauge for local pressure indication in general-duty applications. This 0-10 bar version offers a simple and cost-effective solution for routine pressure monitoring in heating, air-conditioning, pneumatics, and related systems.

Technical Specifications

FunctionPressure measurement
Measuring principleBourdon tube
Connector locationLower mount
Design standardEN 837-1
Accuracy classCl. 2.5
Scale range0-10 bar
Process connection details

Materials

CasePlastic, black
Process connectionCopper alloy, lower mount (LM)
Pressure elementCopper alloy, C-type or helical type
Dial / pointer"Plastic dial, white, with pointer stop pin DN 80, 100, and 160: Aluminium, white with pointer stop pin Pointer: Plastic, black"
Window / movement"Window: Plastic, crystal-clear Movement: Copper alloy"

Field of Application

Temperature range"Ambient: -20 to 60 °C Medium: max. 60 °C"
Max. working pressure0–10 bar
MediaGaseous and liquid media that are not highly viscous or crystallizing and will not attack copper alloy parts

Key Features

Clear pressure readingProvides fast and easy local pressure reading for routine system checks.
Data-driven decision-makingRisk-prevention tool that helps detect deviations early, avoid costly downtime, and maintain stable system performance.
Easy installationLower-mount configuration supports straightforward installation in standard applications.
Broad size rangeAvailable in multiple nominal sizes to suit common installation preferences.
General-purpose serviceSuitable for compatible gaseous and liquid media in general-duty service.

Usage & Applications

UsageLocal pressure indication and monitoring
Applications"Pneumatic systems, HVAC systems, and general mechanical installations."

Declaration

EN 1092-2

Full Technical Data

Datasheet
Datasheet
Download

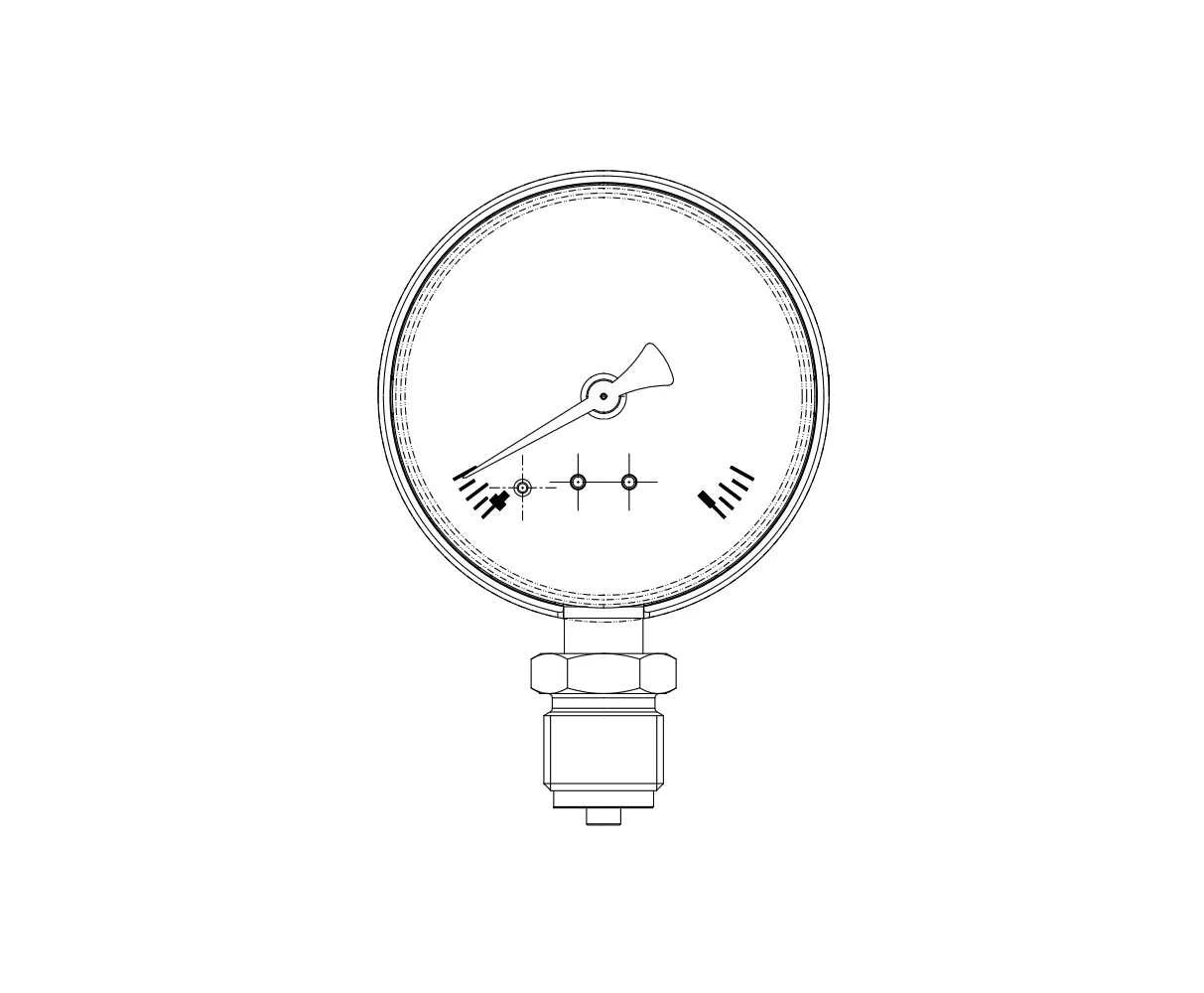

2D Drawing
2D Drawing
Download

Quick Dimensions

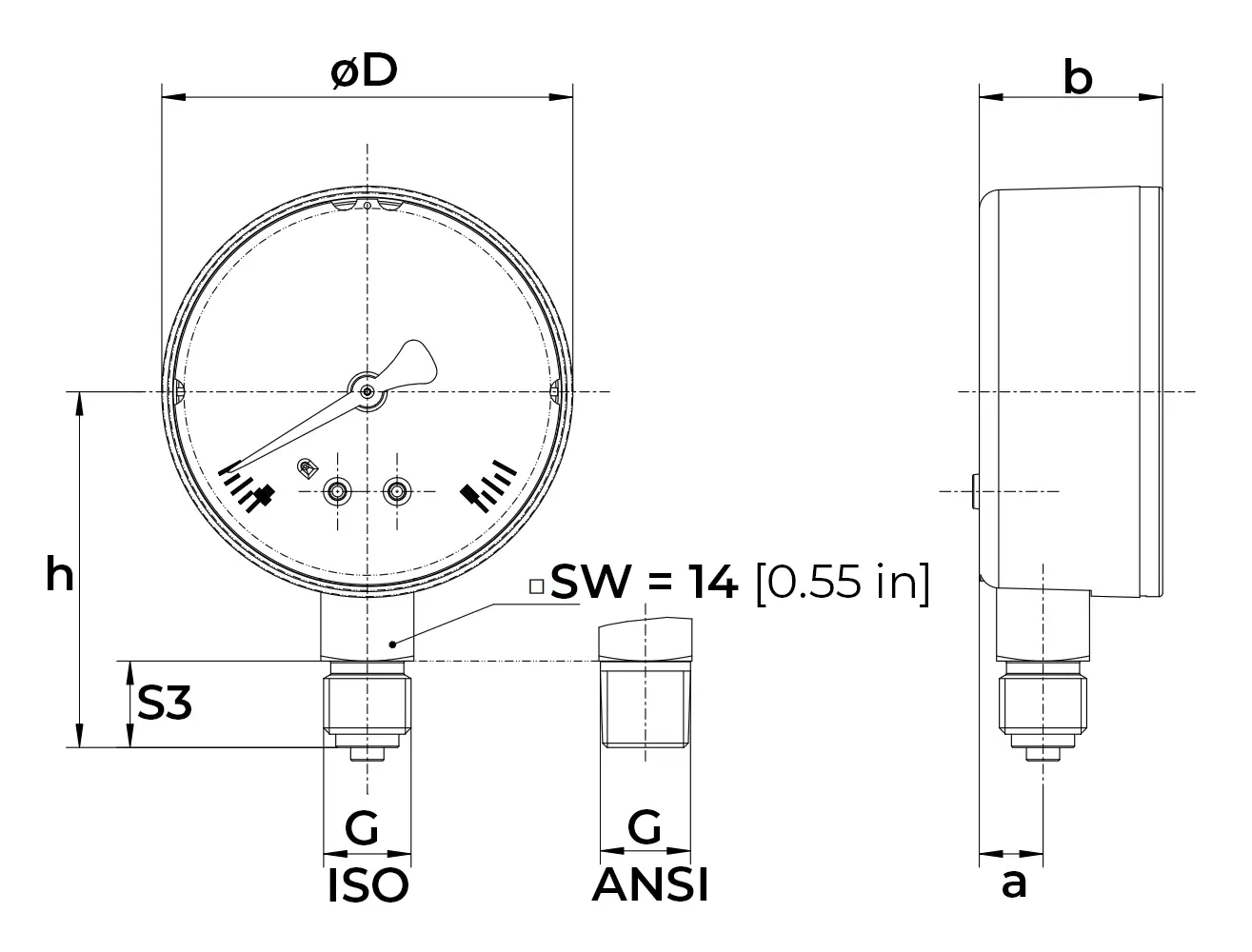

FPGB_P010-SW14
Size NS* a b±0.5 D h1 SW PC* Kg
3 40 9.5 26 39 36 14 Male, 0.08
6 50 10 27.5 49 45 14 14 mm flats 0.10
6 63 9.5 27.5 62 53.5 14 14 mm flats 0.13
15 80 11.5 30 79 72 22 Male, 0.18
15 100 11.5 30.5 99 83.5 22 22 mm flats 0.21
15 160 15.5 42 160 115.5 22 – 0.85

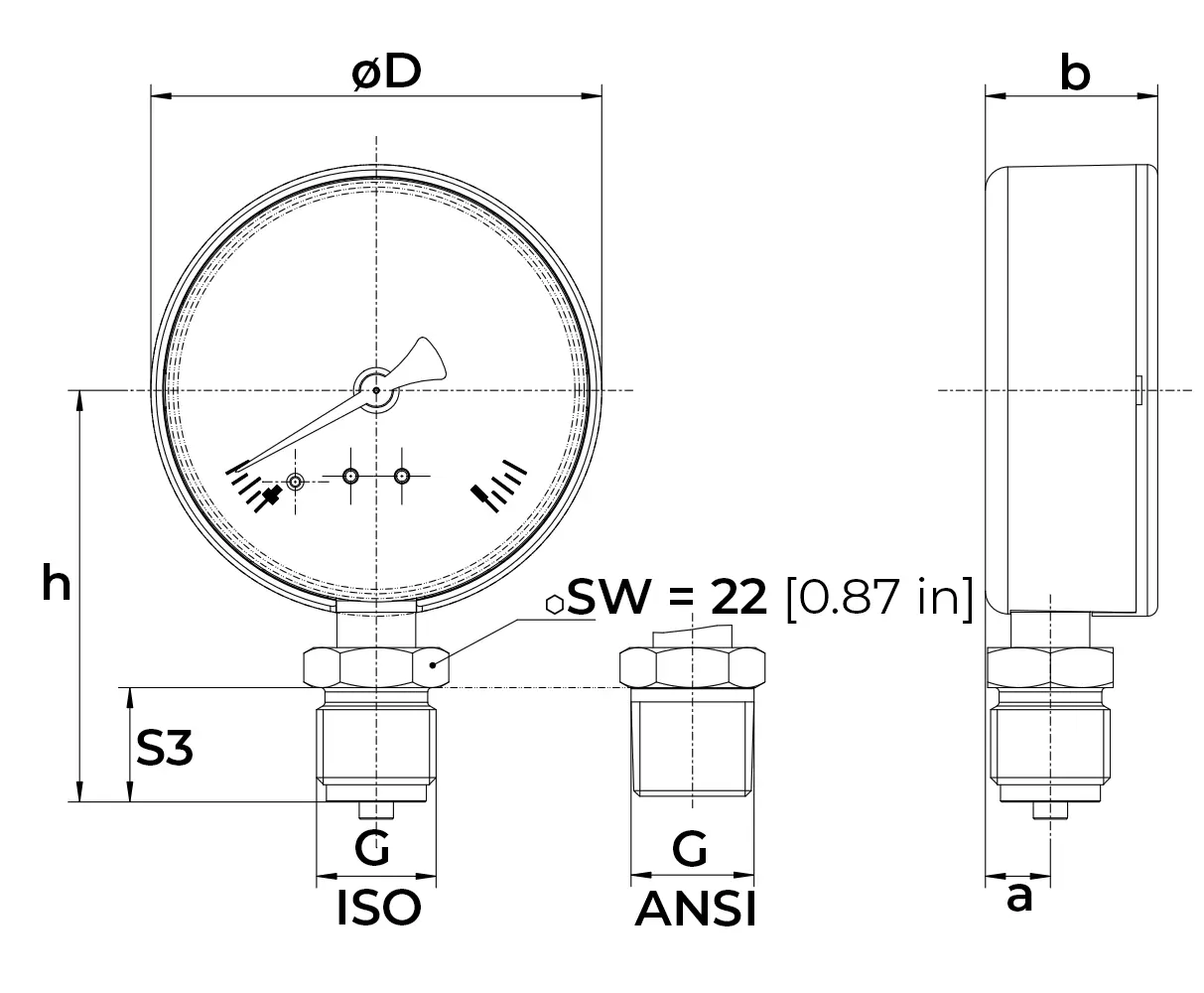

FPGB_P010-SW22
Size NS* a b±0.5 D h1 SW PC* Kg
3 40 9.5 26 39 36 14 Male, 0.08
6 50 10 27.5 49 45 14 14 mm flats 0.10
6 63 9.5 27.5 62 53.5 14 14 mm flats 0.13
15 80 11.5 30 79 72 22 Male, 0.18
15 100 11.5 30.5 99 83.5 22 22 mm flats 0.21
15 160 15.5 42 160 115.5 22 – 0.85

Full Technical Data

Datasheet
Datasheet
Download
2D Drawing
2D Drawing
Download

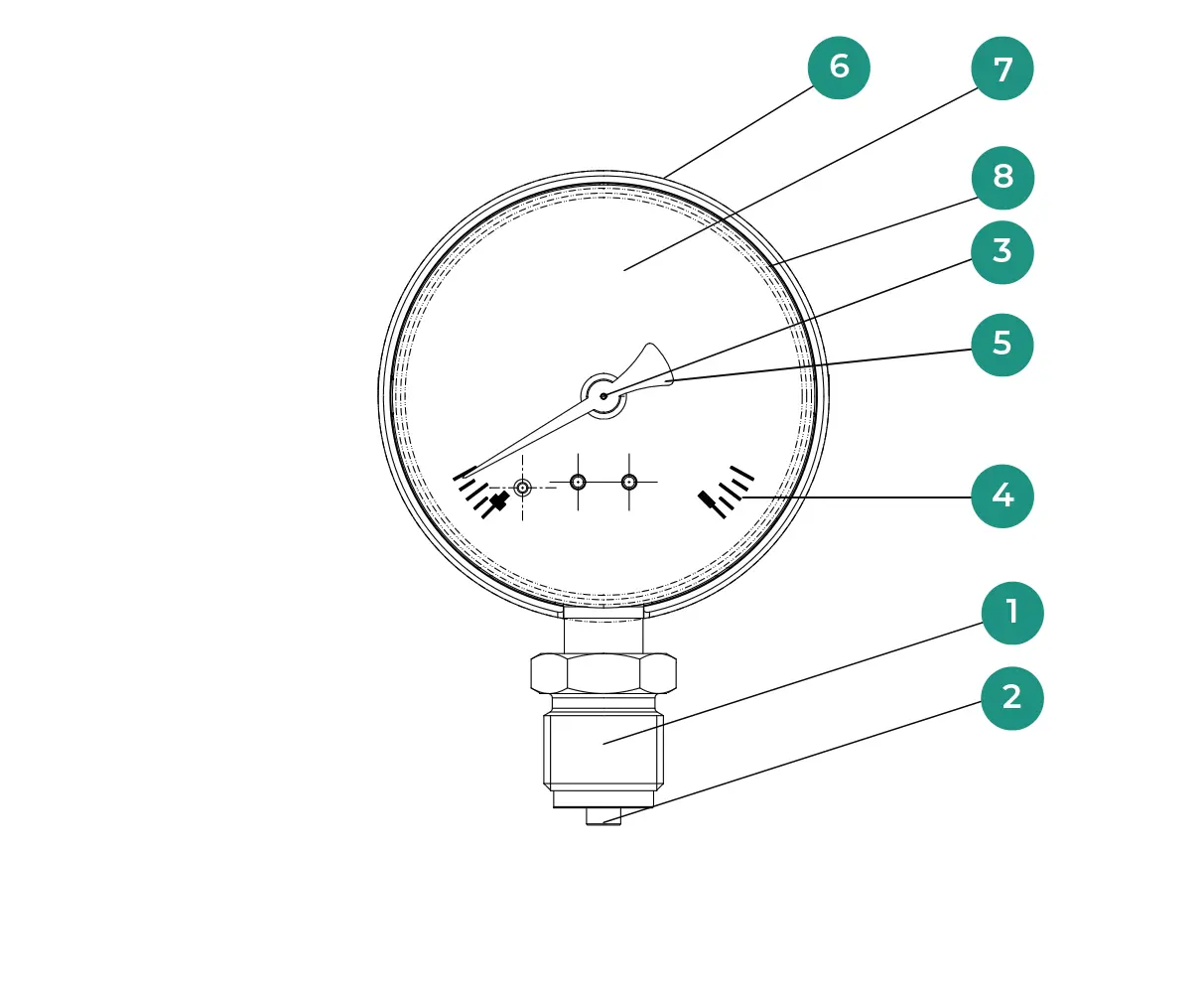

FPGB_P010
N° Name Material
1 Process connection Copper Alloy, lower mount (LM)
2 Pressure element Copper Alloy, C-type or helical type
3 Movement Copper Alloy
4 Dial DN 40, 50, 63: Plastic, white, with pointer stop pin.
DN 80, 100, and 160: Aluminium, white, with pointer stop pin.

Black lettering, red mark pointer with measuring ranges 0…0.6 to 0…60 bar.

5 Pointer Plastic, black
Except DN 160: Steel, black.
6 Case Plastic, black
Except DN 160: Steel, black.
7 Window Plastic, crystal-clear, snap-fitted in case.
Except DN 160: Instrument glass.
8 Bezel ring DN 40-100: without a bezel ring
DN 160: With a bezel ring
Frequently Asked Questions
What type of pressure gauge is this? +
It is a Bourdon-type pressure gauge for local pressure indication. The dry versions cover standard-duty use, while the SG version is glycerine-filled for harsher operating conditions.
Does it read gauge pressure or absolute pressure? +
Gauge pressure. The dry-gauge datasheets state that the device is zero-referenced against ambient pressure and reads zero when disconnected from the equipment.
When should the glycerine-filled version be selected? +
Choose the FPGB_SG016 version where vibration, pulsation or higher dynamic pressure loads are present. The glycerine filling improves pointer stability and is better suited to rougher service conditions.
Can these gauges be used with any fluid or gas? +
No. The datasheets limit use to gaseous and liquid media that are not highly viscous or crystallising and that will not attack copper alloy parts.
Are all versions CE-marked? +
No. The FPGB_P010 and FPGB_P016 datasheets state PED 2014/68/EU Art. 4.3 SEP exemption from CE marking, while the FPGB_SG016 datasheet shows PED 2014/68/EU and CE marking.
