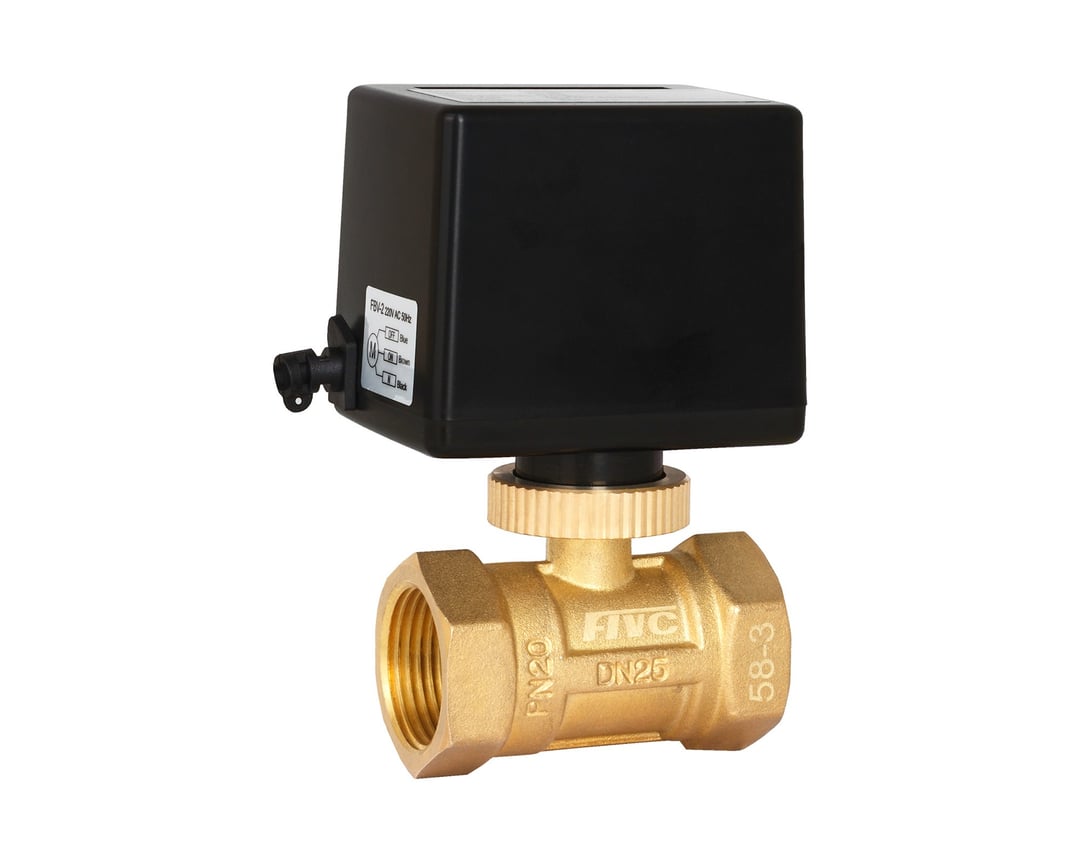

F2BA_B20_C24

FIVC 2-WAY VALVES

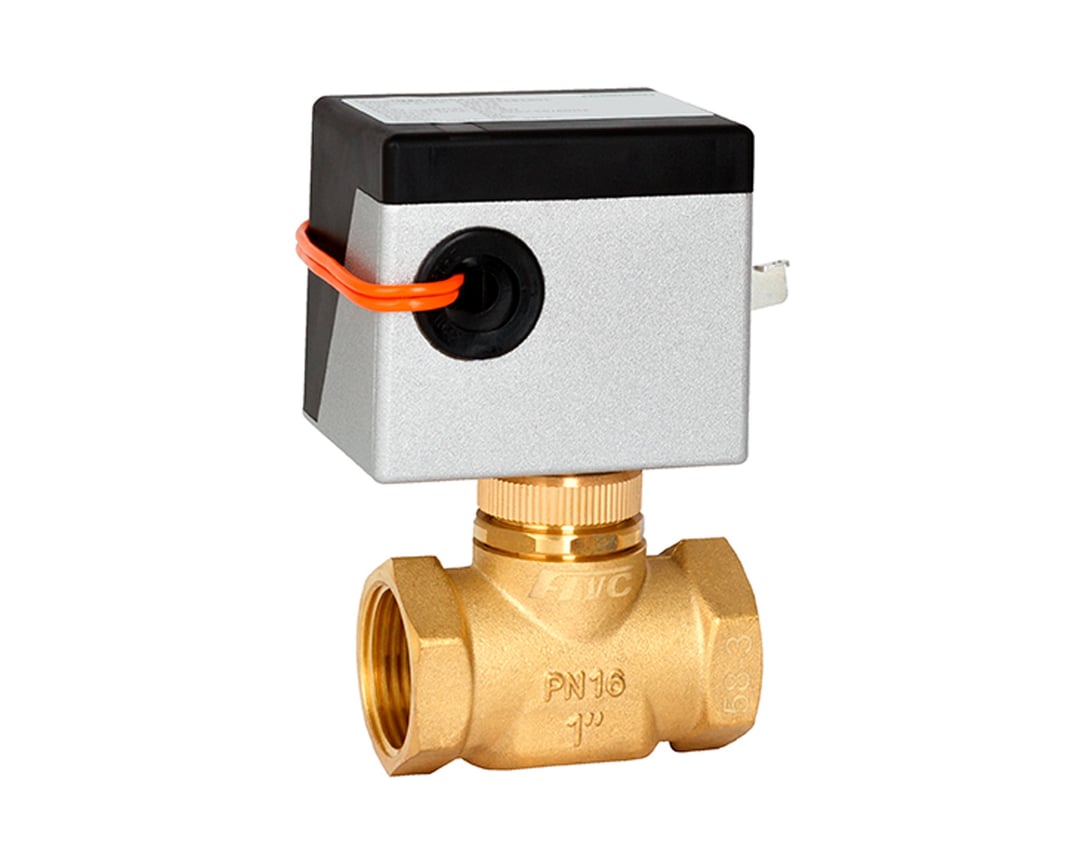

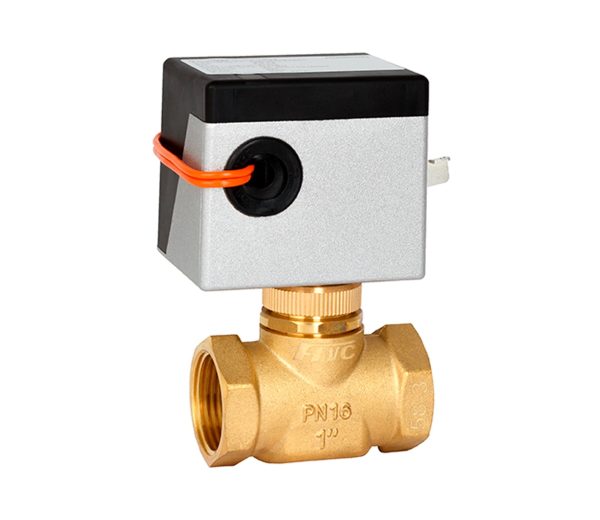

F2GL_B16_C24 – Brass – PN 16 – ON-OFF – 24V DC – Normally closed – ISO 228

FIVC Motorized Globe Valve is designed with a high-quality electrical ON-OFF actuator that offers excellent control performance, allowing flow isolation and/or regulation that reduces energy consumption.

For many HVAC industries, motorized 2-way valves are a perfect choice, especially for safety applications since they are able to stop fluid flow in the event of a power failure.

Additionally, the 2-way globe valve is fast-acting and has a failsafe system that ensures flow stops in the event of a power outage.

The actuator includes an integrated clutch that enables operating the valve manually.

This valve is suitable for water.

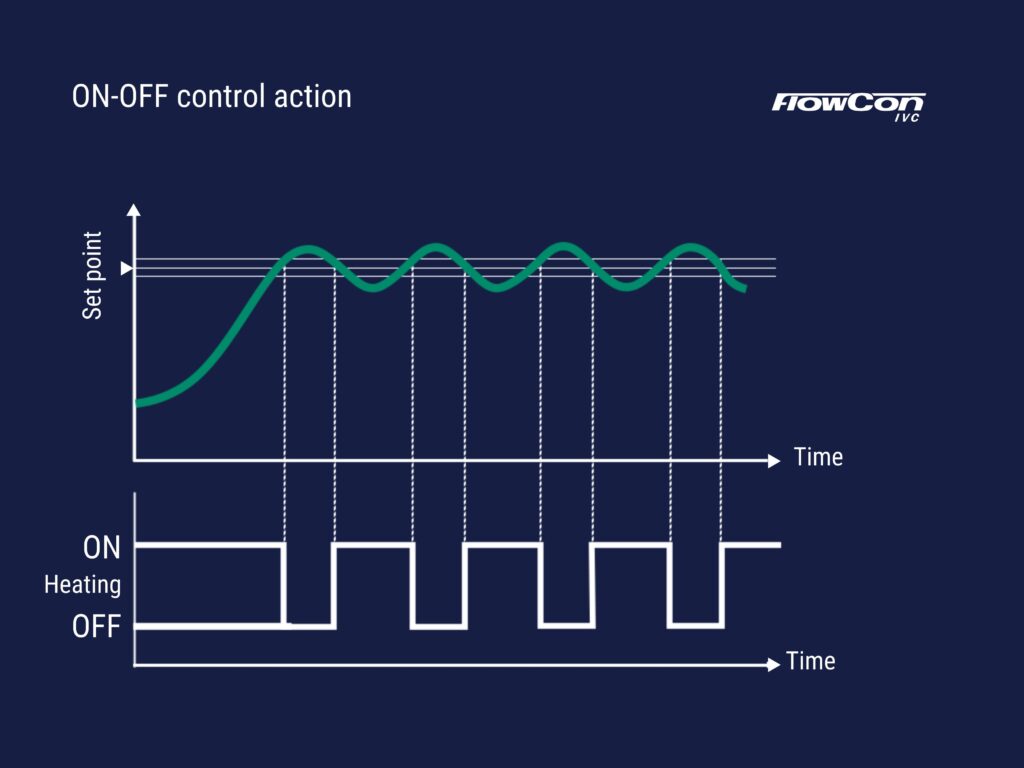

The valve is commonly used in fan coil units, cooling ceilings, or cooling/heating ends and is electrically connected to a room thermostat or temperature controller. The valve reacts by opening or closing to maintain temperature according to the temperature setpoint on the temperature controller.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Self-actuating via its actuator
Standard position: Normally closed
Actuator type: ON-OFF
Voltage: 220V AC 50/60 Hz
Power: 6 W
IP class: IP40
Drive force: 196.2 N
Stroke: 3 mm (max. 5 mm)
Operating time:
Opening: ≤10 sec.
Closing: ≤5 sec.
Cable length: 50 cm
Threading: ISO 228
USP: Integrated failsafe. Manual disc operation mode.
High-tightness. Long lifespan. Increased process efficiency. Resistant to clogging. Contributes to energy and cost savings.

MAIN MATERIALS

Body: Forged Brass
Trim: Forged Brass
Seal: Forged Brass
O-Ring: EPDM/NBR
Shaft: Stainless Steel
Spring: Stainless Steel
Packing: EPDM/NBR

FIELD OF APPLICATION

Max. medium temperature: 1 to 95 °C
Max. temperature of actuator: 100 °C
Max. working pressure: 16 bar
Max. closing pressure: 5 bar
Media: Water

DECLARATION

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
