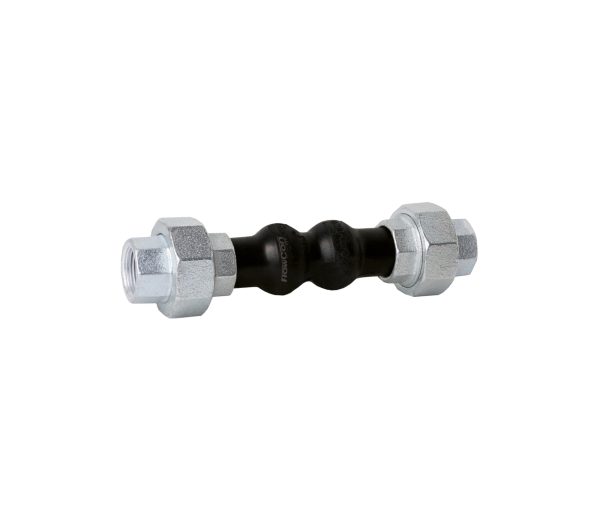

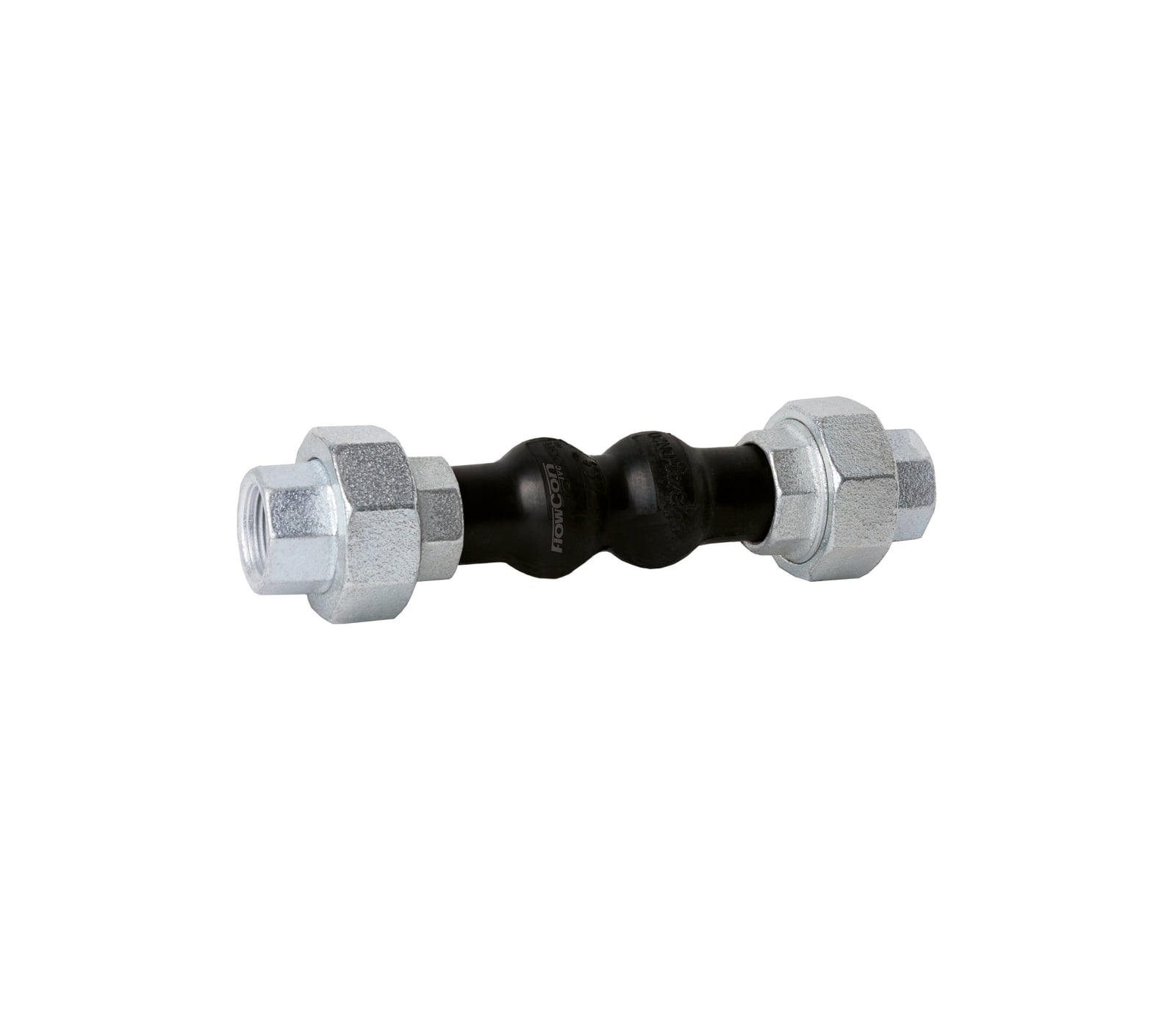

FIVC EXPANSION JOINT

FFC_M20_EPDM02 – EPDM rubber – SS fitting – PN 20 – Double Sphere Union – BSPT/Rc

The FIVC Expansion joint is designed to be installed in pipelines as a safety component to eliminate the effects of thermal expansion, a movement induced by vibration. Its main task is to absorb sound and manage the pipeline’s thermal energy and shock, thereby protecting the system from damage.

The expansion joint is not only a solution for the internal movement and vibration in the system but is also a proper solution for managing the cyclic motion associated with temperature changes in the application system. The hose is to be connected between water supply networks and is frequently used in fan-coil units.

This valve is suitable for water.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Absorb sound, thermal energy in 4 directions, and shock.
Spherical design: Double
Connection: BSPT/Rc
USP: Pump and system component protection. High strength and flexibility. Long lifespan leading to cost efficiency. Noteworthy efficient noise reduction. Anti-burst damage and good elasticity.

MAIN MATERIALS

Rubber: EPDM
Carcass: Nylon Cord Fabric
Reinforcing wire: Spring Steel Wire
Union coupling: Malleable Iron (Zinc plated)

FIELD OF APPLICATION

Temperature range: -15 to 115 °C Max. working pressure: 20 bar Max. bursting pressure: 30 bar Vacuum rating: 400 mmHg Media: Cold/hot water, steam, oxidant, animal, and vegetable oils.
