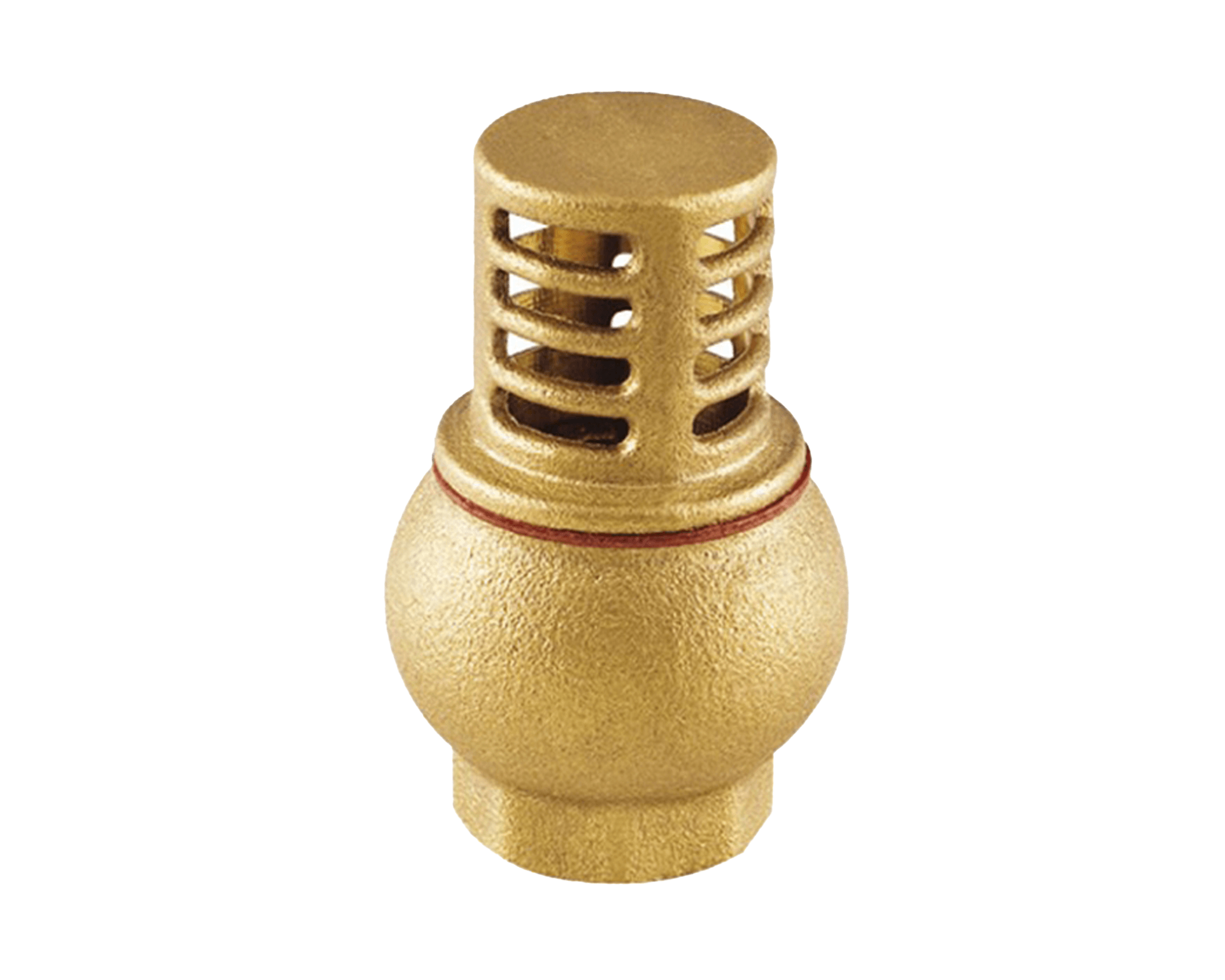

FIVC FOOT VALVE
FFV_B10_S21 – Bronze body – PN 10 – ISO 228
The FIVC Foot Valve is designed to be installed in suction lift applications and functions as a check valve with an integrated strainer. It is designed as a spring-assisted and single-direction valve that protects the pump by eliminating the return of pressurized fluid and simultaneously prevents solid impurities from entering the pump.
This valve is suitable for Water, Oil, and Gas.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Eliminates gravity-influenced flow
- Pump protection
- Maximizes system efficiency
- Ease of installation and maintenance
- Reliable
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Filtration. Elimination of the return of pressurized fluid.
Threading: ISO 228
USP: Valuable component providing several benefits, including improved efficiency, pump protection, and ease of installation and maintenance.
MAIN MATERIALS
Body: Bronze CC491K
Gasket: Fiber
Cover: Bronze CC491K
Disc: Brass CW614N
Disc face: NBR
FIELD OF APPLICATION
Max. temperature: 110 °C
Max. working pressure: 10 bar
Media: Water, Oil, and Gas
DECLARATION
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
