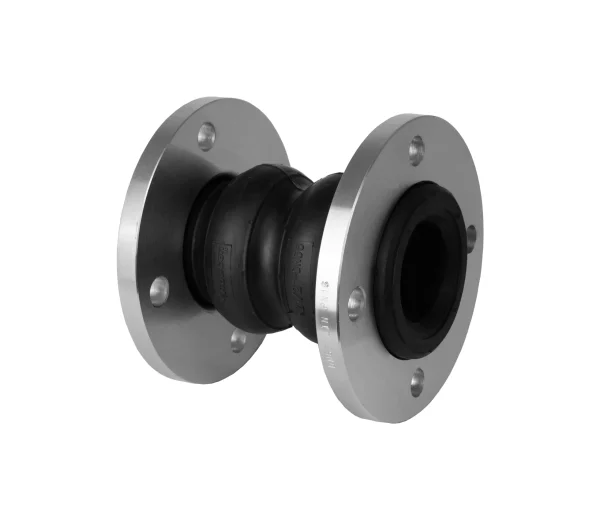

The FIVC Expansion joint is designed to be installed in pipelines as a safety component to eliminate the effects of thermal expansion, a movement induced by vibration. Its main task is to absorb sound and manage the pipeline’s thermal energy and shock, thereby protecting the system from damage.
The expansion joint is not only a solution for the internal movement and vibration in the system but is also a proper solution for managing the cyclic motion associated with temperature changes in the application system. The hose is to be connected between water supply networks and is frequently used in fan-coil units.
This valve is suitable for water.
Function and benefits
QUICK DATASHEET DOWNLOAD
Feature: Absorb sound, thermal energy in 4 directions, and shock.
Spherical design: Double
Connection: EN 1092-2
USP: Pump and system component protection. High strength and flexibility. Long lifespan leading to cost efficiency. Noteworthy efficient noise reduction. Anti-burst damage and good elasticity.
Rubber: EPDM
Carcass: Nylon Cord Fabric
Wire: Carbon Steel
Flanged: Carbon Steel
Temperature range: -15 to 115 °C
Max. working pressure: 16 bar
Max. bursting pressure: 48 kg/cm2
Vacuum rating:
DN 32-300: 500 mmHg
DN 350-600: 400 mmHg
Media: Water and steam
Size, material, approval, pressure rate, etc. are available upon request.
