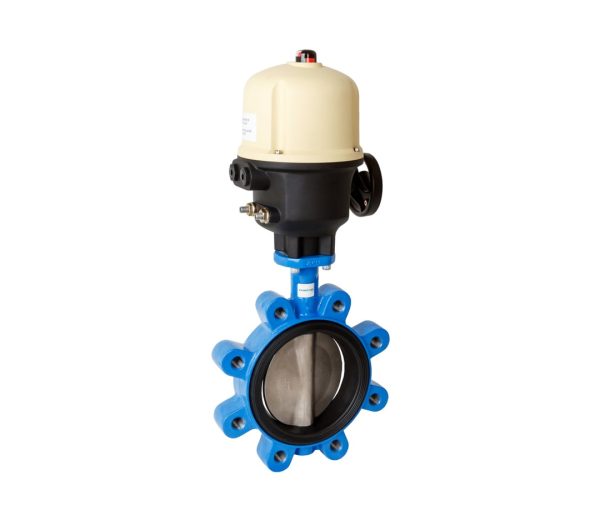

FIVC MOTORIZED LUGGED BUTTERFLY VALVE
LUGN5_MSEENG_2509BC – Ductile Iron – PN 25 – Lugged – Bernard Controls Actuator – Glued – Pinless – EN 1092-2
FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.
This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges.
It operates through its high-quality actuator from Bernard Controls and provides fast, reliable flow-regulating and isolating.
This valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
✔️ Excellent control performance with bubble-tightness
✔️ Cost-efficient
✔️ Small size and light in weight
✔️ Small driving torque
✔️ Easy operation, and fast-acting
LET'S TALK
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 25
Shaft: SS AISI 420
Thread: Metric
Seat: Glued
Construction: Pinless
External operator: Electrical actuator from Bernard Controls
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20) DIN 3202 T3 K1 - ISO 5752 T5 API 609
BS 5155 series (except DN 350)
Top flange acc. to ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Stainless Steel
Stem: Stainless Steel
Seat: Glued EPDM
Electrical actuator: Ductile Iron
Coating: Epoxy
FIELD OF APPLICATION
Temperature range: -20 to 110°C
Max. working pressure: 16 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
