Use: Flow control in HVAC systems, fan coil units, cooling ceilings, refrigeration, and heating/cooling applications.
Avoid: Throttling and regulation applications.
No unnecessary pressure loss
Quarter-turn isolation
Need content

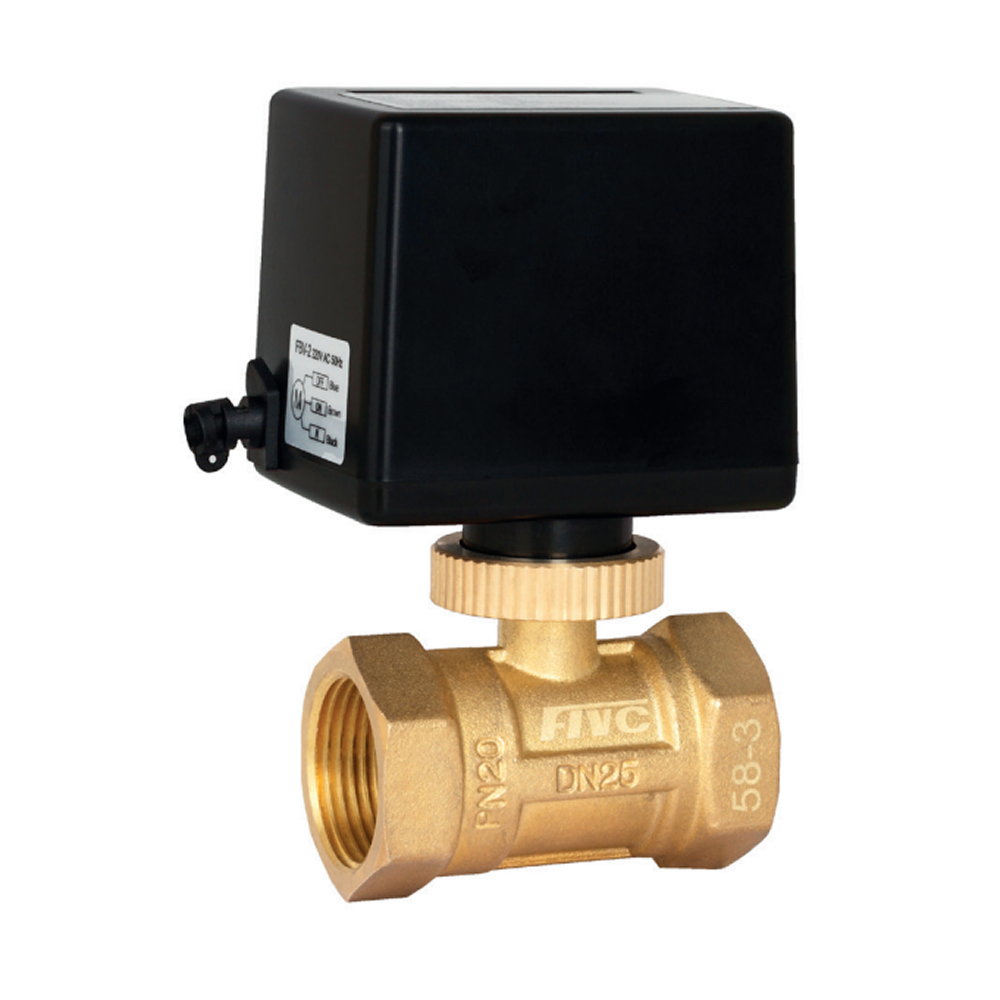

The FIVC Motorized Ball Valve (Normally Open) is engineered to control fluid flow by opening, closing, or partially blocking flow passages using a reliable ON-OFF or 3-point floating actuator. It is commonly used in fan coil units, cooling ceilings, and heating/cooling systems where accurate temperature control is required.
The valve is electrically connected to a room thermostat or temperature controller and automatically reacts by opening or closing to maintain the desired temperature setpoint. Its robust forged brass body, full-bore design, and high-tightness sealing ensure long service life, reduced operating energy consumption, and reliable leak prevention.
It is suitable for fresh water, hot water, and ethylene glycol solutions up to 60%, making it ideal for HVAC, refrigeration, and industrial water circulation systems.

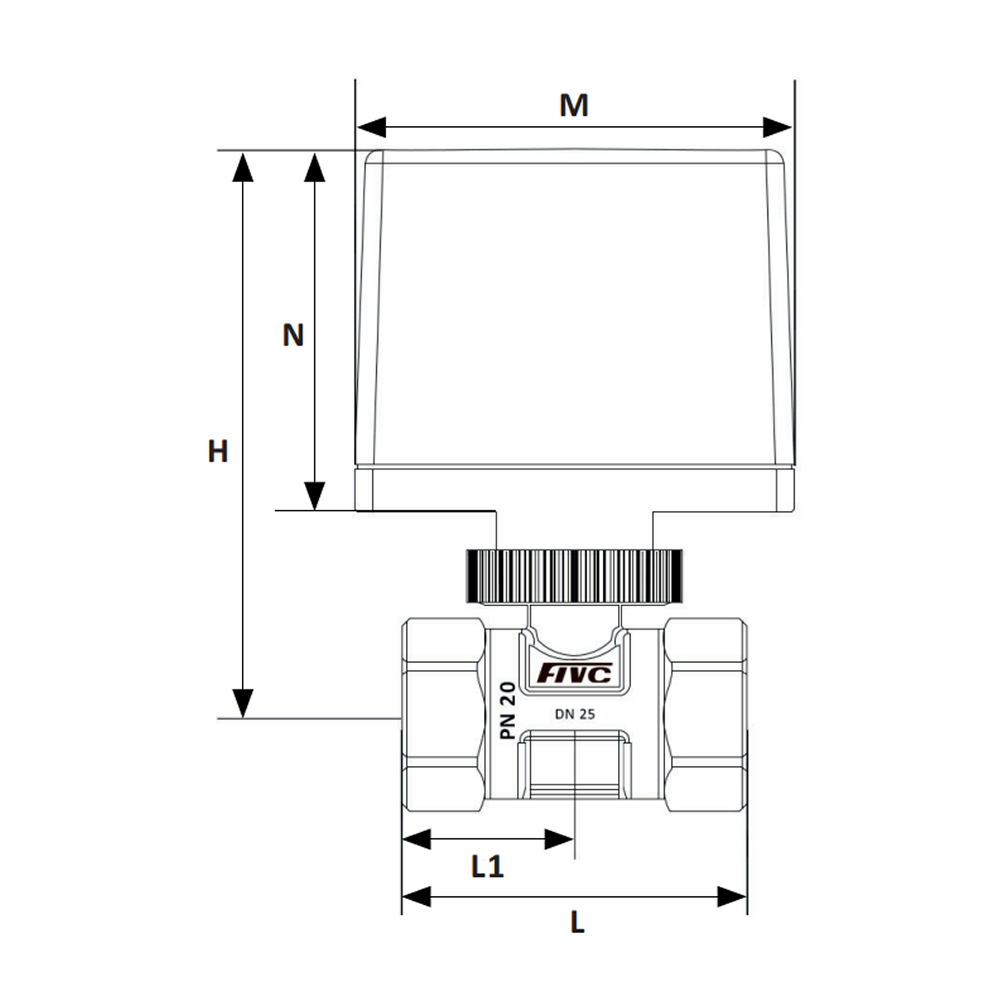

| Product Code | Size | L | S | L1 | D1 | Kvs | Kg |
|---|---|---|---|---|---|---|---|
| F2BA015B20N24 | 15 | 62 | 32.5 | 31.5 | 10 | 4.4 | 0.66 |
| F2BA020B20N24 | 20 | 63 | 32.5 | 31.5 | 12 | 6 | 0.61 |
| F2BA025B20N24 | 25 | 73 | 40 | 36.5 | 16 | 13.6 | 0.72 |
| F2BA032B20N24 | 32 | 83 | 48 | 41.5 | 20 | 16 | 0.99 |
| M (mm) | H (mm) | N (mm) | Q (mm) | R (mm) |
|---|---|---|---|---|
| 81.5 | 105 | 67.5 | 63.5 | 19 |

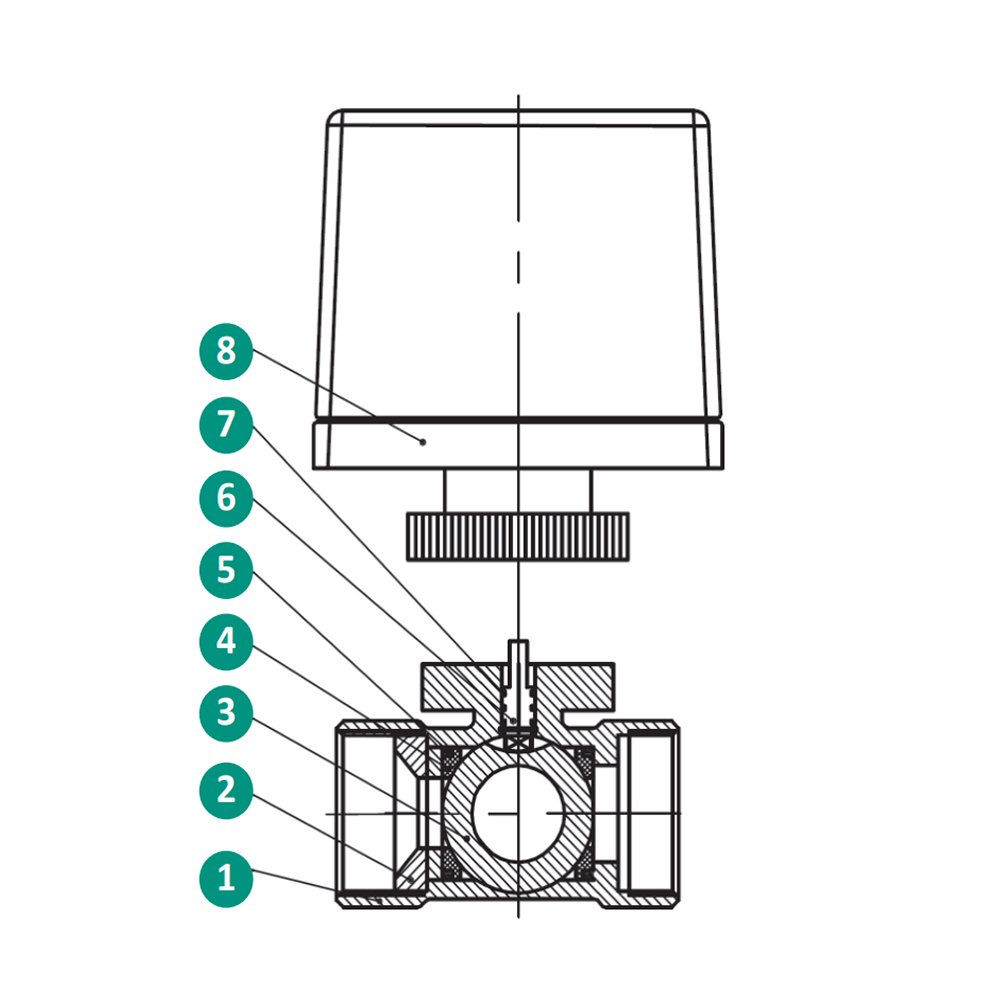

| No. | Name | Material |
|---|---|---|
| 1 | Body | Forged Brass |
| 2 | Bonnet | Forged Brass |
| 3 | Sphere | Forged Brass |
| 4 | Seat | Plastic |
| 5 | O-Ring | EPDM/NBR (Ø21 × 1.8) |
| 6 | Shaft | Forged Brass |
| 7 | O-Ring | EPDM/NBR |
| 8 | Electric Actuator | – |
