FIVC 2-WAY VALVES

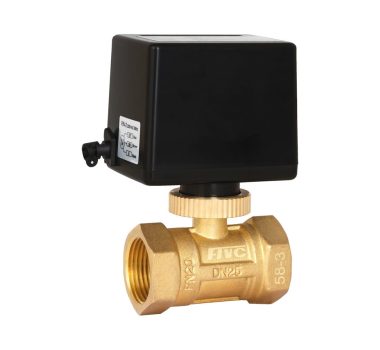

F2BA_B20_C24 - Brass – PN 20 – Normally closed – ON-OFF or 3-Point floating control – 24V DC – Full Port – ISO 228

FIVC Motorized Ball Valve is designed with a high-quality electrical ON-OFF/3-Point floating actuator that offers excellent control performance, allowing flow isolation and regulation that reduces energy consumption.
This valve is suitable for freshwater, hot water, and up to 60 pct. ethylene glycol solutions.
F2BA_B20_C24
The valve is commonly used in fan coil units, cooling ceilings, or cooling/heating ends and is electrically connected to a room thermostat or temperature controller. The valve reacts by opening or closing to maintain temperature according to the temperature setpoint on the temperature controller.
ON-OFF
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • Excellent control performance
  • ON-OFF or 3-Point floating control
  • Leakage tightness
  • Fast response time
  • Low-power consumption
  • Systems at variable flow rates - reducing costs in operation and maintenance
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Self-actuating via its actuator
Standard position: Normally closed
Actuator type: ON-OFF or 3-Point floating control
Voltage: 24V DC
Power: 6 W
IP class: IP65
Drive torque: 10.5 Nm
Stroke: 90°
Operating time: 15 sec.
Cable length: 50 cm
Threading: ISO 228
Dimensions: Face-to-Face acc. to BS 7350:1990​
USP: High tightness. Long lifespan. Increased process efficiency. Resistant to clogging. Contributes to energy and cost savings.

MAIN MATERIALS

Asset-7

Body: Forged Brass
Bonnet: Forged Brass
Seat: Plastic
O-Ring: EPDM/NBR

FIELD OF APPLICATION

Asset-7

Temperature range of media: 1 to 95 °C
Max. temp. of the actuator: 100 °C
Max. working pressure: 20 bar
Max. closing pressure: 5 bar
Media: Freshwater, hot water, and up to 60 pct. ethylene glycol solutions.

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL
Industrial-water-7
Cooling-system-blue-and-white-3
Heating-System-Icon
glycol-6
HVAC-19

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.

For the complete product overview please refer to Products

F2BA_B20_C24
F2BA_B20_N01
Brass – PN 20 – 220V AC 50/60 Hz – ON-OFF/3-Point floating control – Normally open – Full Port – ISO 228
PDF
F2BA_B20_C24
F2BA_B20_C01
Brass – PN 20 – 2220V AC 50/60 Hz – ON-OFF/3-Point floating control – Normally closed – Full Port – ISO 228
PDF

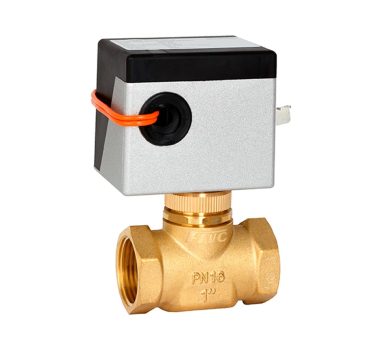

F2GL_B16_C01
