FIVC 2-WAY VALVES

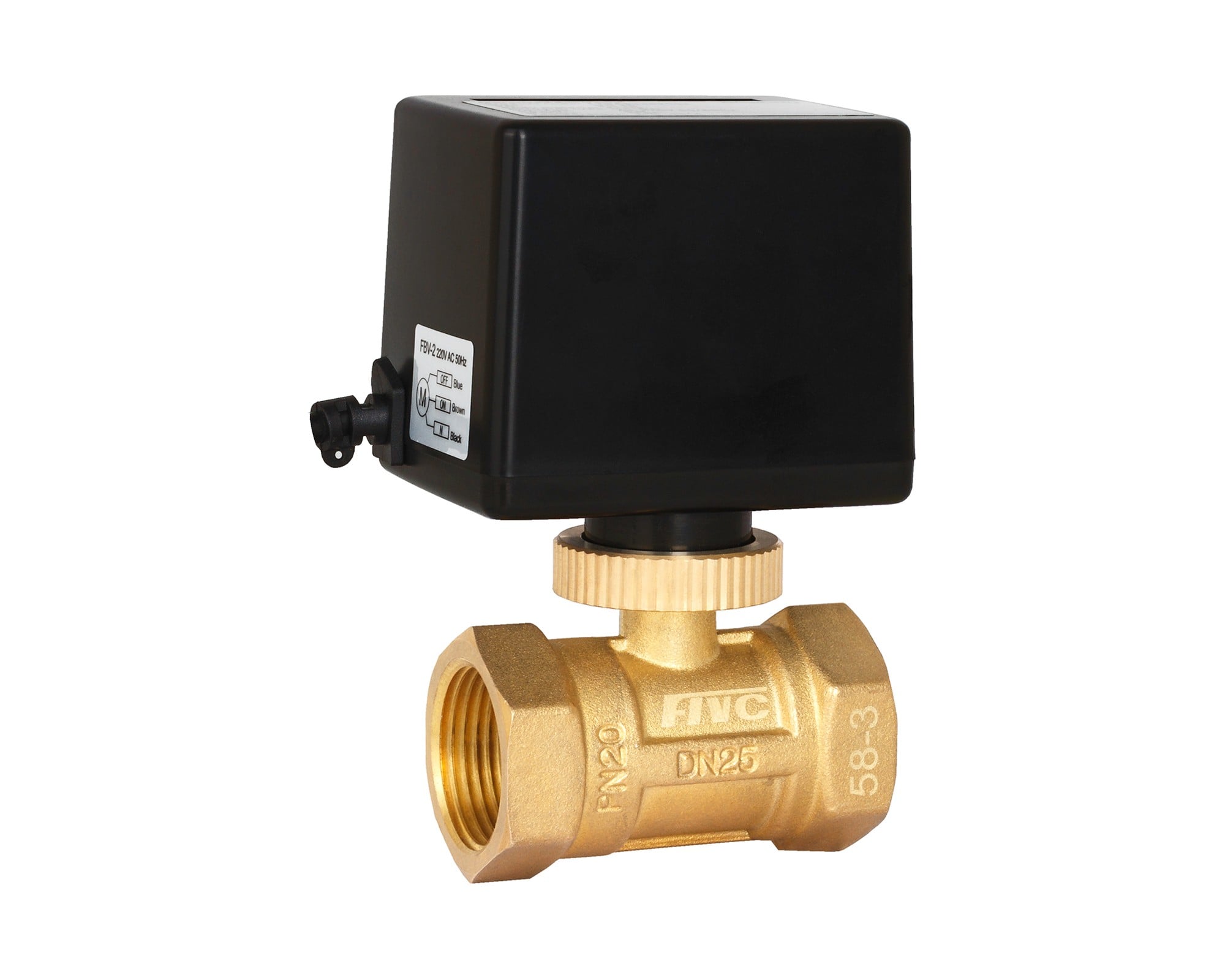

F2BA_B20_N01 - Brass – PN 20 – Normally open – ON-OFF or 3-Point floating control – 24V DC – Full Port – ISO 228

FIVC Motorized Ball Valve is designed with a high-quality electrical ON-OFF/3-Point floating actuator that offers excellent control performance, allowing flow isolation and regulation that reduces energy consumption.

This valve is suitable for freshwater, hot water, and up to 60 pct. ethylene glycol solutions.

The valve is commonly used in fan coil units, cooling ceilings, or cooling/heating ends and is electrically connected to a room thermostat or temperature controller. The valve reacts by opening or closing to maintain temperature according to the temperature setpoint on the temperature controller.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Self-actuating via its actuator
Standard position: Normally open
Actuator type: ON-OFF or 3-Point floating control
Voltage: 24 V DC
Power: 6 W
IP class: IP65
Drive torque: 10.5 Nm
Stroke: 90°
Operating time: 15 sec.
Cable length: 50 cm
Threading: ISO 228
Dimensions: Face-to-Face acc. to BS 7350:1990
USP: High tightness. Long lifespan. Increased process efficiency. Resistant to clogging. Contributes to energy and cost savings.

MAIN MATERIALS

Body: Forged Brass
Bonnet: Forged Brass
Seat: Plastic
O-Ring: EPDM/NBR

FIELD OF APPLICATION

Temperature range of media: 1 to 95 °C
Max. temp. of the actuator: 100 °C
Max. working pressure: 20 bar
Max. closing pressure: 5 bar
Media: Freshwater, hot water, and up to 60 pct. ethylene glycol solutions.

DECLARATION

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
