FIVC ORIFICE PLATES

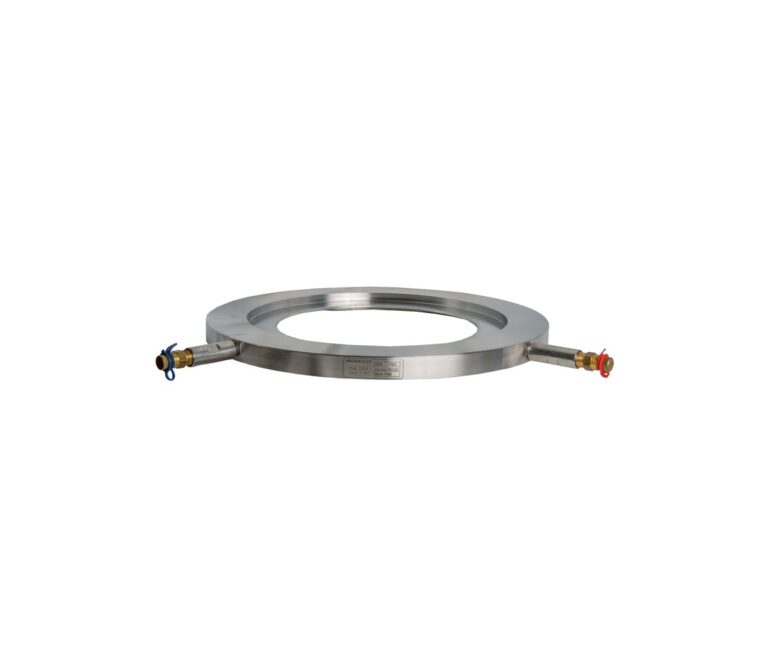

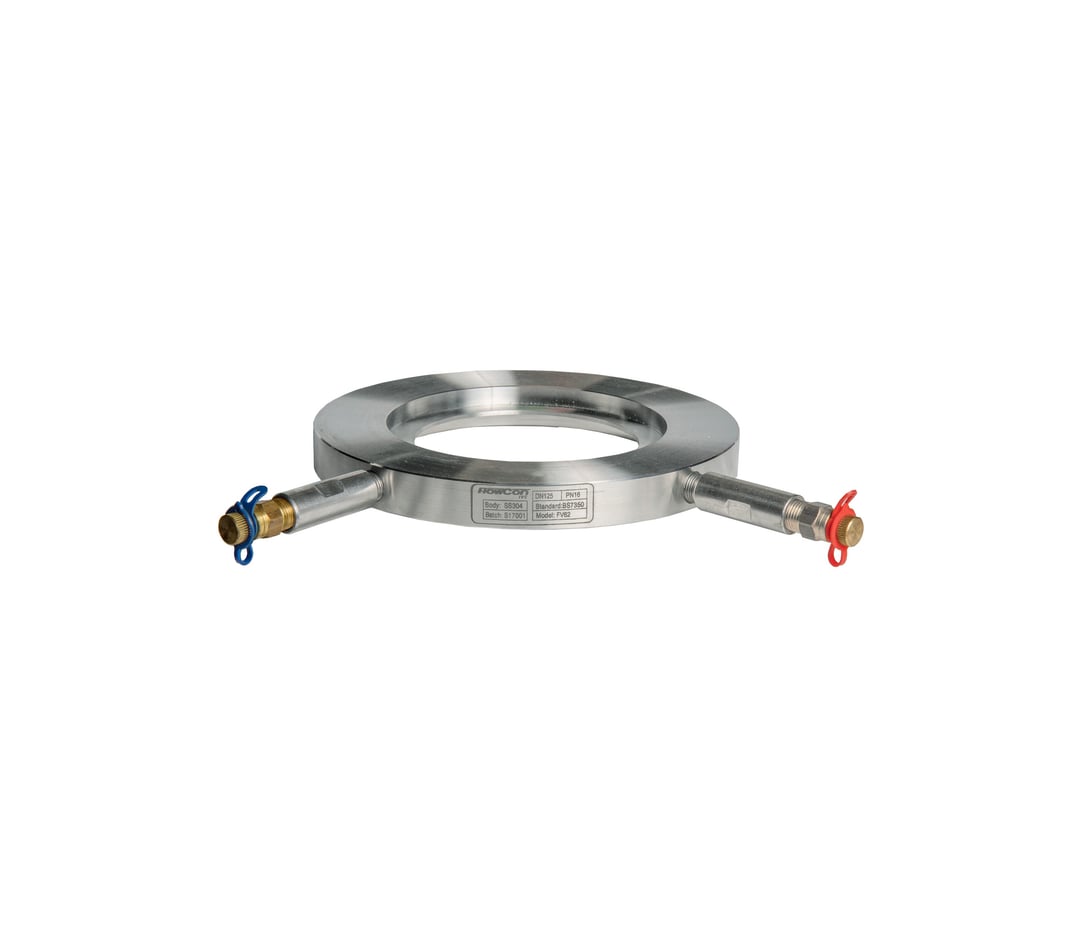

FOP_ST25_511 – Stainless Steel – PN 25 – Wafer – EN 1092-2

FIVC Regulating Valves are designed to be installed in pipelines for system balancing providing flow regulation and measurement.

FIVC Orifice Plates are designed to ensure precise flow and pressure drop measurements through two test points. FIVC Metering Stations can be attached directly to the pipeline with gaskets or coupled to other regulating- or isolation valves, e.g. the FIVC Static Balancing Valves, Butterfly valves, etc.

The orifice plate is mainly used in applications systems where the fluid is filtered or has low-velocity steam flow circuits.

This orifice plate is suitable for water and non-hazardous Group 2 liquids.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Self-actuating except for measurement
Orifice: Variable
Flange: EN 1092-2
Dimensions: Face-to-Face acc. to BS 7350:1990
USP: Contributes to energy and cost savings. Accurate measurement. Upstream/downstream identification colors for test points.

MAIN MATERIALS

Body: Stainless Steel
Extension rod: Stainless Steel
Test points: DZR Brass

FIELD OF APPLICATION

Temperature range: -20 to 120 °C
Max. working pressure: 25 bar
Media: Water, non-hazardous Group 2 liquids

DECLARATION

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
