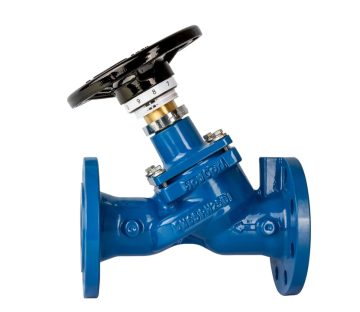

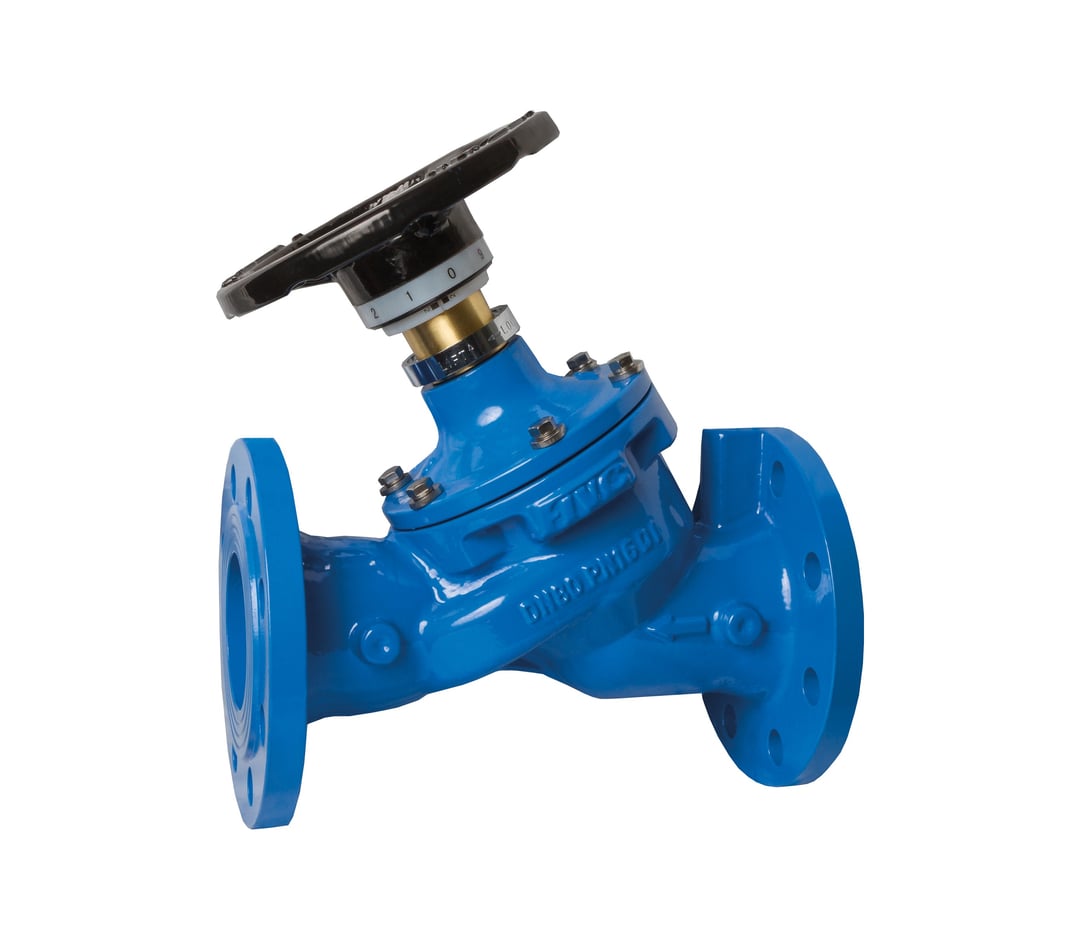

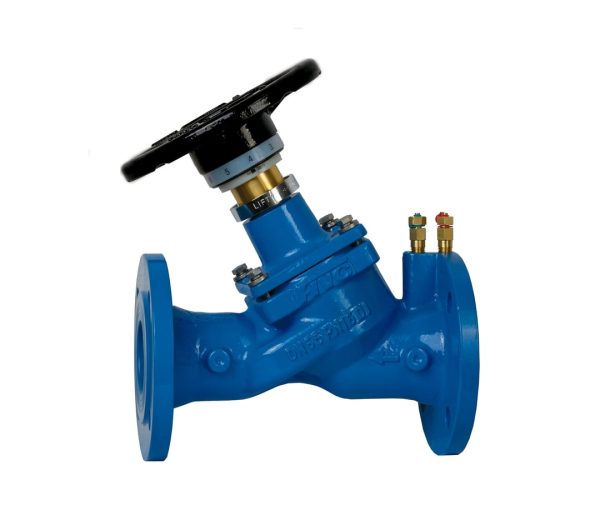

FIVC Regulating Valves are designed to be installed in pipelines for system balancing providing flow regulation and measurement.
Regulating valves ensure efficient and regulated flow distribution to all heating-/cooling units in the circuit. By balancing the system, the water flow is distributed equally to each unit and floor in a controlled amount, eliminating unnecessary energy consumption and ensuring an optimized room temperature throughout the building.
This fixed orifice regulating valve is suitable for water.
Function and benefits
QUICK DATASHEET DOWNLOAD
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 420
Thread: Metric
Seat: Replaceable
Construction: Pinless
External operator: Electrical actuator from Bernard Controls
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20) DIN 3202 T3 K1 – ISO 5752 T5 API 609
BS 5155 series (except DN 350)
Top flange acc. to ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
Body: Ductile Iron
Disc: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Electrical actuator: Ductile Iron
Coating: Epoxy
Temperature range: -20 to 110°C
Max. working pressure: 16 bar
Media: Water
Size, material, approval, pressure rate, etc. are available upon request.
