FIVC REGULATING VALVE
FSB_N16_GF231 – Ductile Iron – PN 16 – Fixed Orifice – WRAS – EN 1092-2
FIVC Regulating Valves are designed to be installed in pipelines for system balancing providing flow regulation and measurement.
Regulating valves ensure efficient and regulated flow distribution to all heating-/cooling units in the circuit. By balancing the system, the water flow is distributed equally to each unit and floor in a controlled amount, eliminating unnecessary energy consumption and ensuring an optimized room temperature throughout the building.
This fixed orifice regulating valve is suitable for potable water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- WRAS-Approved
- Excellent flow regulation and shut-off
- Efficient flow distribution - system balance
- Accurate flow measurement
- Eliminating unnecessary energy consumption
LET’S TALK
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF and flow measurement via pressure probes.
Orifice: Fixed
Flange: EN 1092-2
Dimensions: Face-to-Face acc. to BS 7350:1990
USP: WRAS-Approved. Contributes to energy and cost savings. Accurate measurement.
MAIN MATERIALS
Body: Ductile Iron
Bonnet: Ductile Iron
Disc: Ductile Iron + EPDM
Stem: Stainless Steel
Handwheel: Ductile Iron
FIELD OF APPLICATION
Temperature range: -10 to 120°C
Max. working pressure: 16 bar
Accuracy of flow measurement: ±5%
Media: water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.
RELATED DOCUMENTS
DOWNLOADS
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

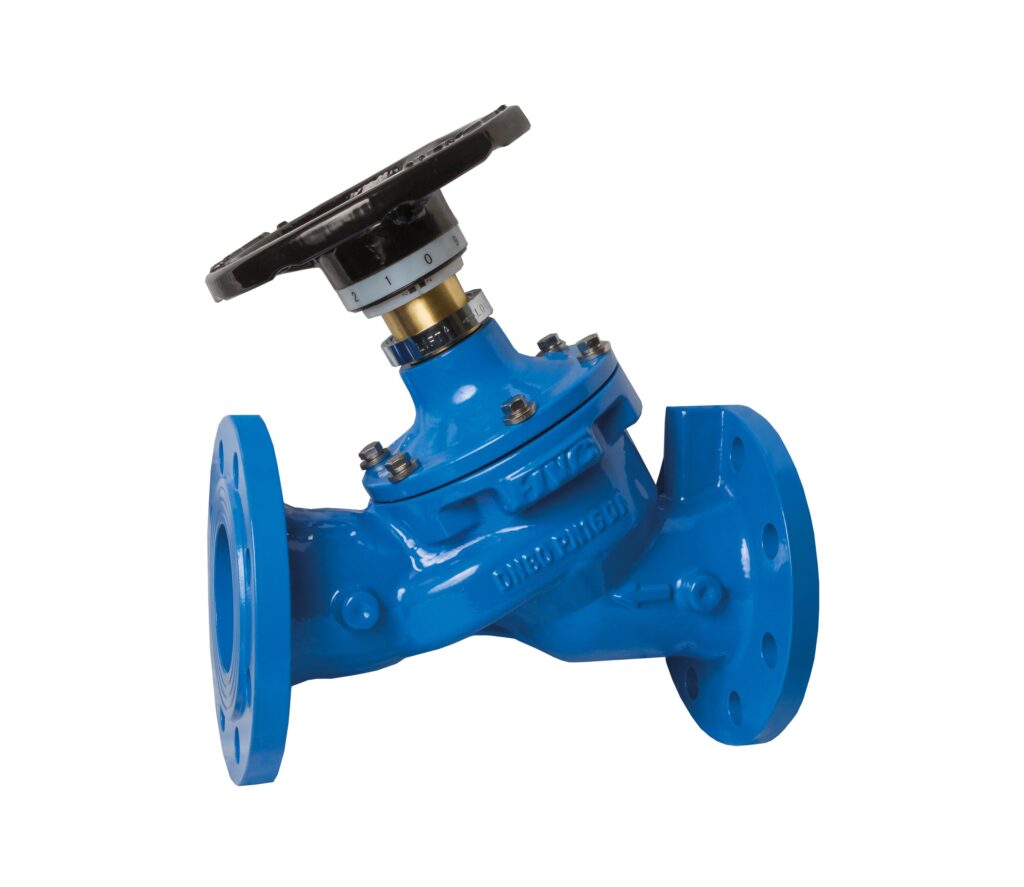

FSB_N16_GV230
Ductile Iron – PN 16 – Variable Orifice – EN 1092-2

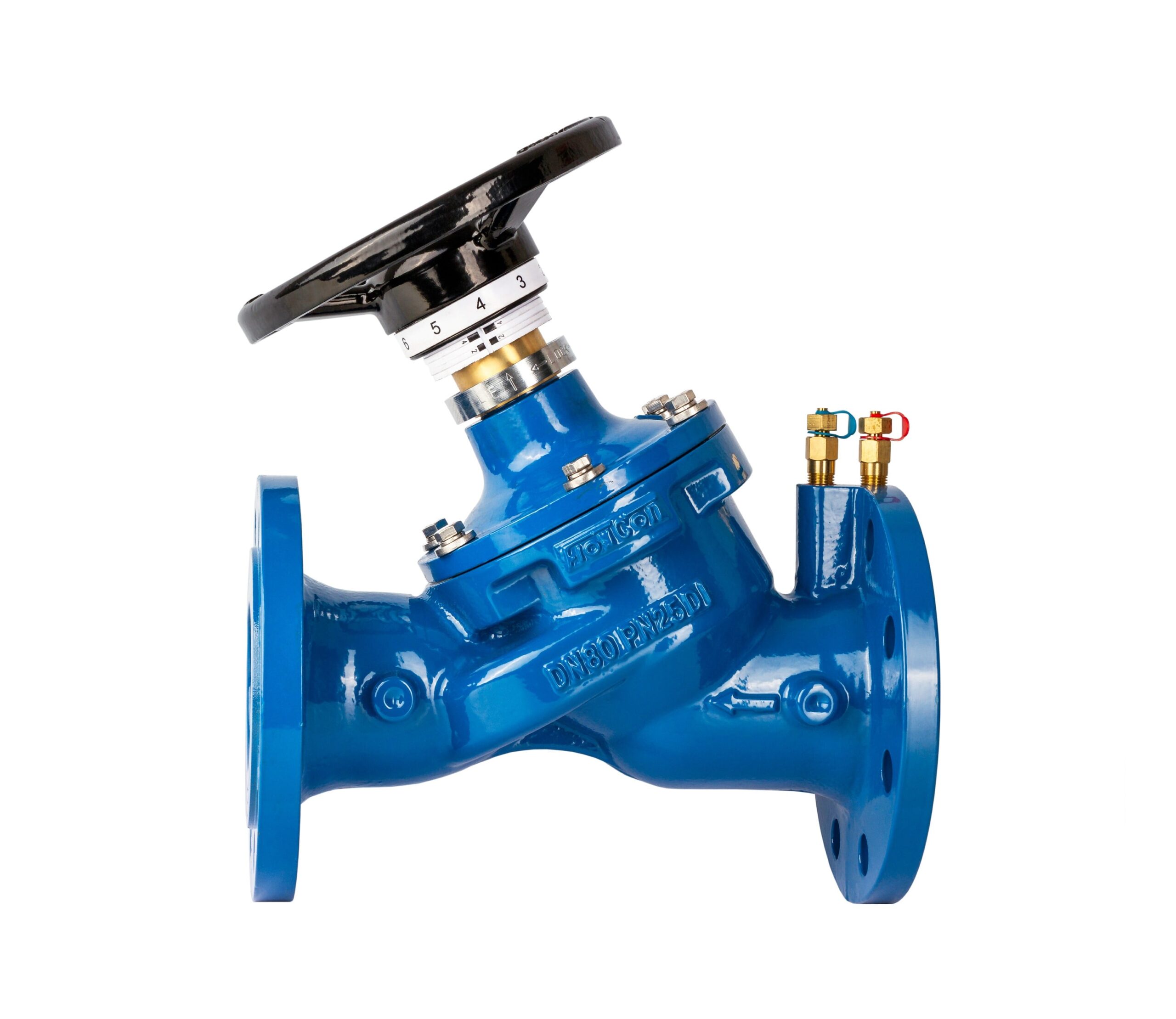

FSB_N25_GF230
Ductile Iron – PN 25 – Fixed Orifice – EN 1092-2

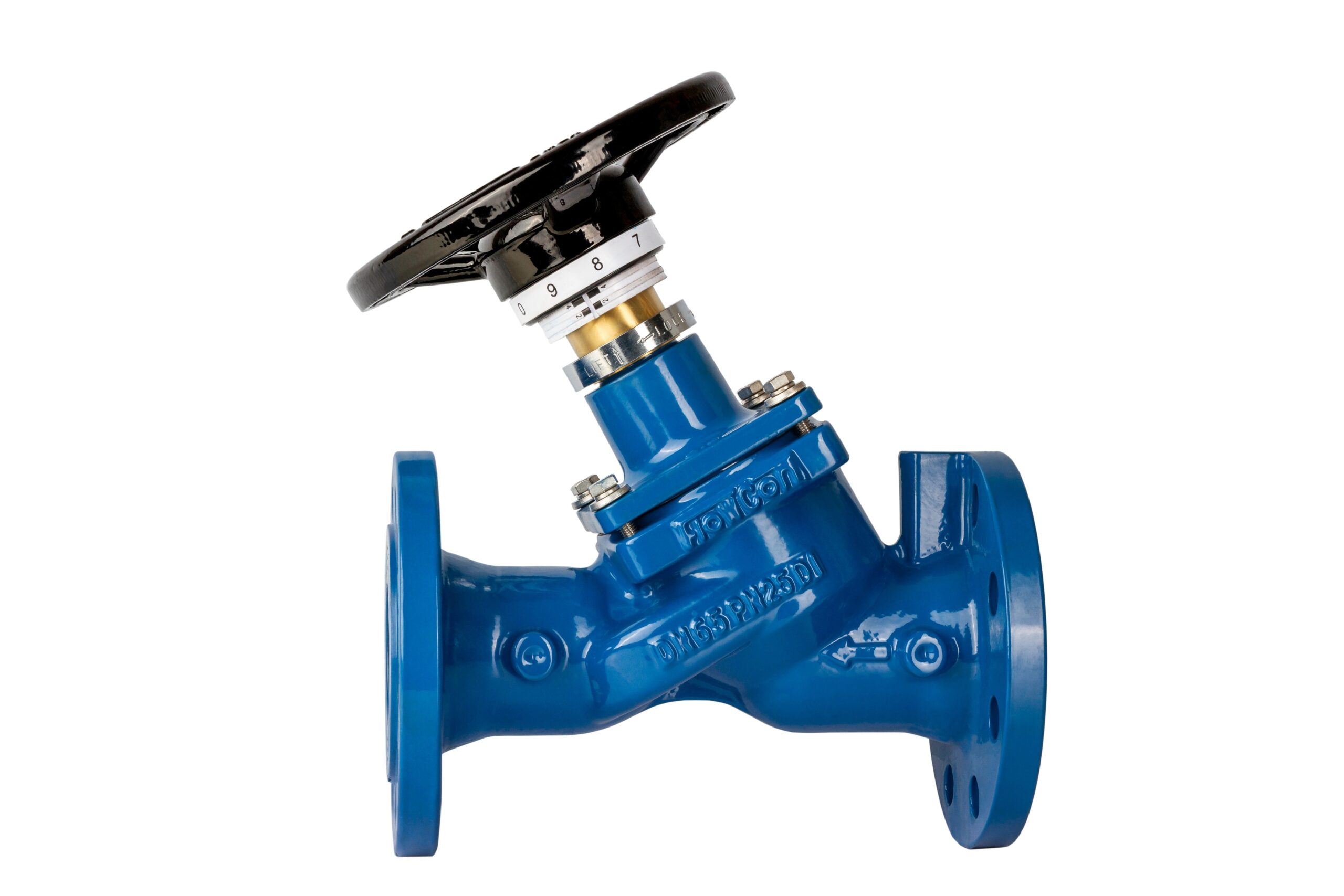

FSB_N25_GV230
