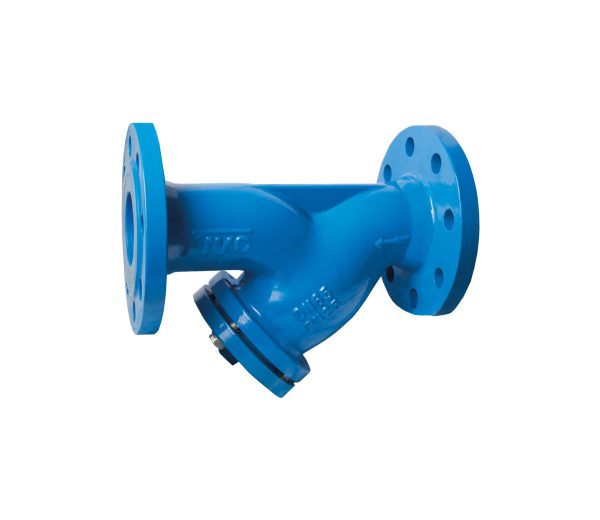

FIVC Y-STRAINER

FYS_C16_210 – Grey Cast Iron – PN 16 – EN 1092-2

The FIVC Strainer is designed to be installed in pipelines to collect and prevent solid impurities from entering the system. By separating solids in the fluids and depositing residues in the passage, they prevent solid impurities from entering the pipeline, resulting in increased pressure losses and oxidation. The collected debris can thereby be disposed of, and the filter can be cleaned without removing the strainer from the line.
Strainers are usually installed prior to the isolation valve, check valve, and pressure reducer at the entrance to the water supply system. It may also be used in closed heating circuits at the entrance to the heat generator to protect the exchanger from impurities arising from the system.
This Y-Strainer is suitable for water.
FYS-C16-210-2
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Self-actuating, except for regular screen cleaning.
Screen type: Mesh
Flange: EN 1092-2 PN 16
Dimensions: Face-to-Face acc. to ISO 5752 DIN 3202 F1 Closing tightness: BS EN 12266-1
USP: Cleaning without disassembling. Excellent system protector. Long lifetime.

MAIN MATERIALS

Asset-7

Body: DN 65-300: Grey Cast Iron
DN 350-600: Ductile Iron
Cover: DN 65-300: Grey Cast Iron
DN 350-600: Ductile Iron
Screen: Stainless Steel
Gasket: DN 65-300: Graphite
DN 350-600: Graphite+Steel

FIELD OF APPLICATION

Asset-7

Max. temperature: DN 65-300: 150 °C
DN 350-600: 130 °C
Max. working pressure: 16 bar
Opening area in %: DN 65-150: 34.1
DN 200-350: 33.6
DN 400-600: 38.6
Media: Water

DECLARATION

Asset-7

The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.
WRAS-Approved.

RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
Filtration-system-3
Industry-2
HVAC-19

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request. For the complete product overview please refer to Products.

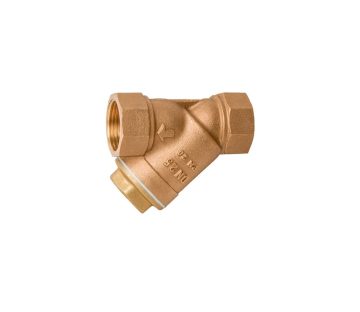

Brass – PN 16 – ISO 228

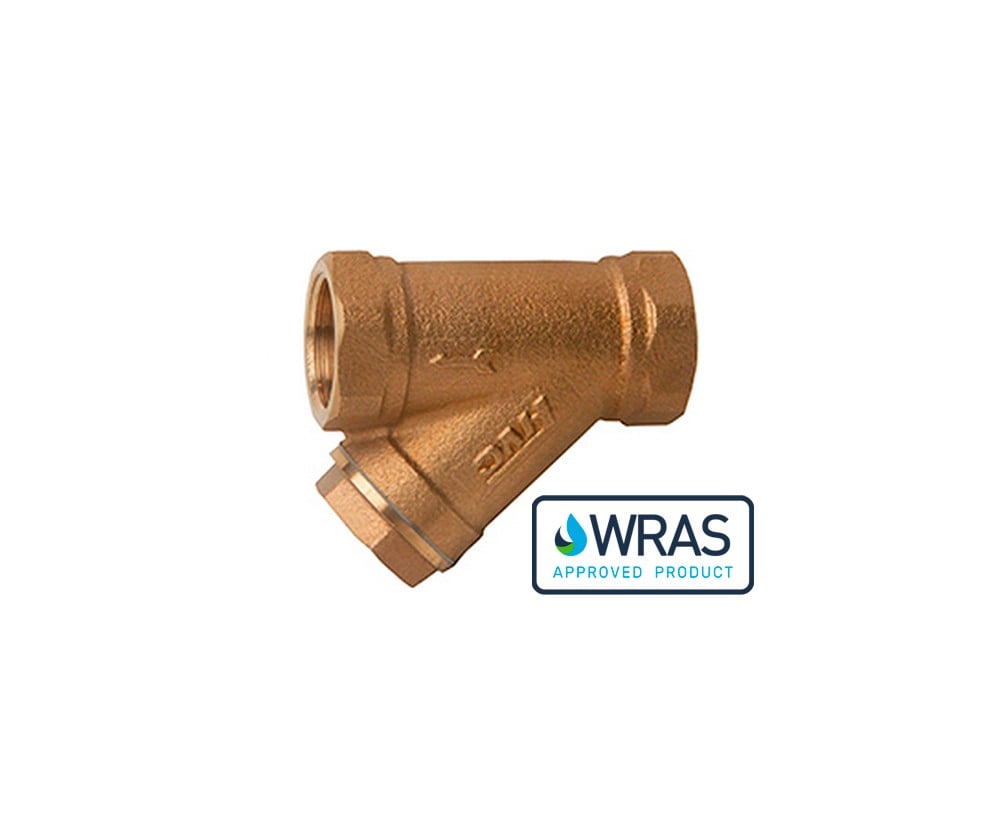

Bronze – PN 20 – WRAS – ISO 228
