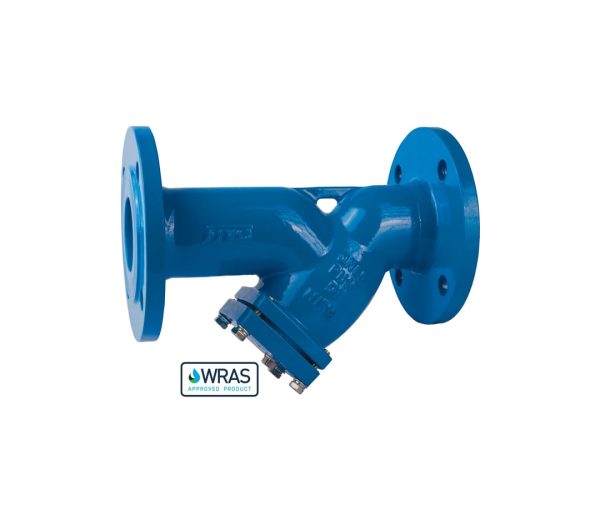

FIVC Y-STRAINER
FYS_N16_231 – Ductile Iron – Y-Strainer – PN 16 – WRAS – EN 1092-2
The FIVC Strainer is designed to be installed in pipelines to collect and prevent solid impurities from entering the system. By separating solids in the fluids and depositing residues in the passage, they prevent solid impurities from entering the pipeline, resulting in increased pressure losses and oxidation. The collected debris can thereby be disposed of, and the filter can be cleaned without removing the strainer from the line.
Strainers are usually installed prior to the isolation valve, check valve, and pressure reducer at the entrance to the water supply system. It may also be used in closed heating circuits at the entrance to the heat generator to protect the exchanger from impurities arising from the system.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent system protection
- Ensure high media quality
- WRAS-Approved
- Lower pressure losses and oxidation
- Ensure system efficiency
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating, except for regular screen cleaning.
Screen type: Perforated
Flange: EN 1092-2
Dimensions: Face-to-Face acc. to EN 558 (series 1)
Closing tightness: BS EN 12266-1 PN 16
USP: WRAS approval. Excellent system protector. Long lifetime.
MAIN MATERIALS
Body: Ductile Iron
Cover: Ductile Iron
Screen: Stainless Steel
Sealing ring: WRAS EPDM
Coating: Epoxy
FIELD OF APPLICATION
Temperature range: -10 to 85 °C
Max. working pressure: PN 16
Opening area in %: DN 50-150: 28, DN 200-350: 20
and DN 400-600: 33
Media: Drinking water
DECLARATION
WRAS-approved.
RELATED PRODUCTS

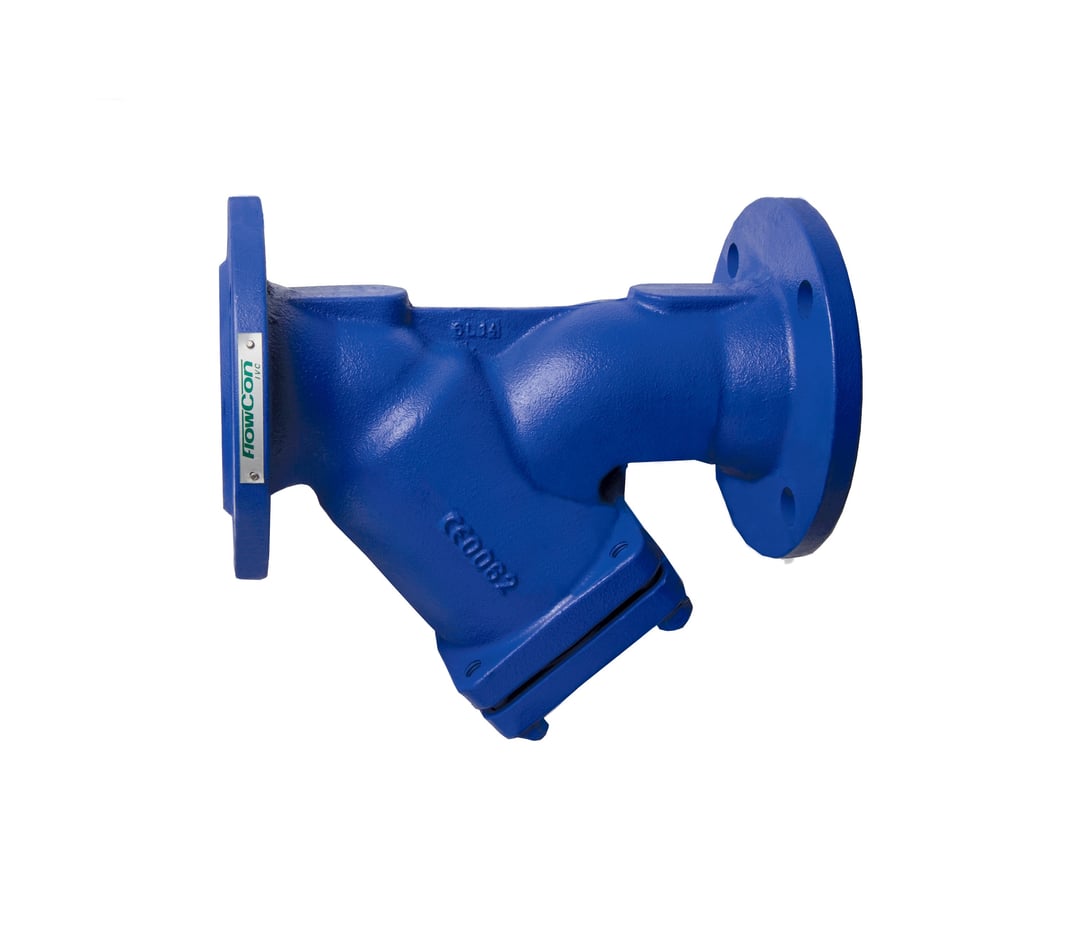

FYS_C16_B52
