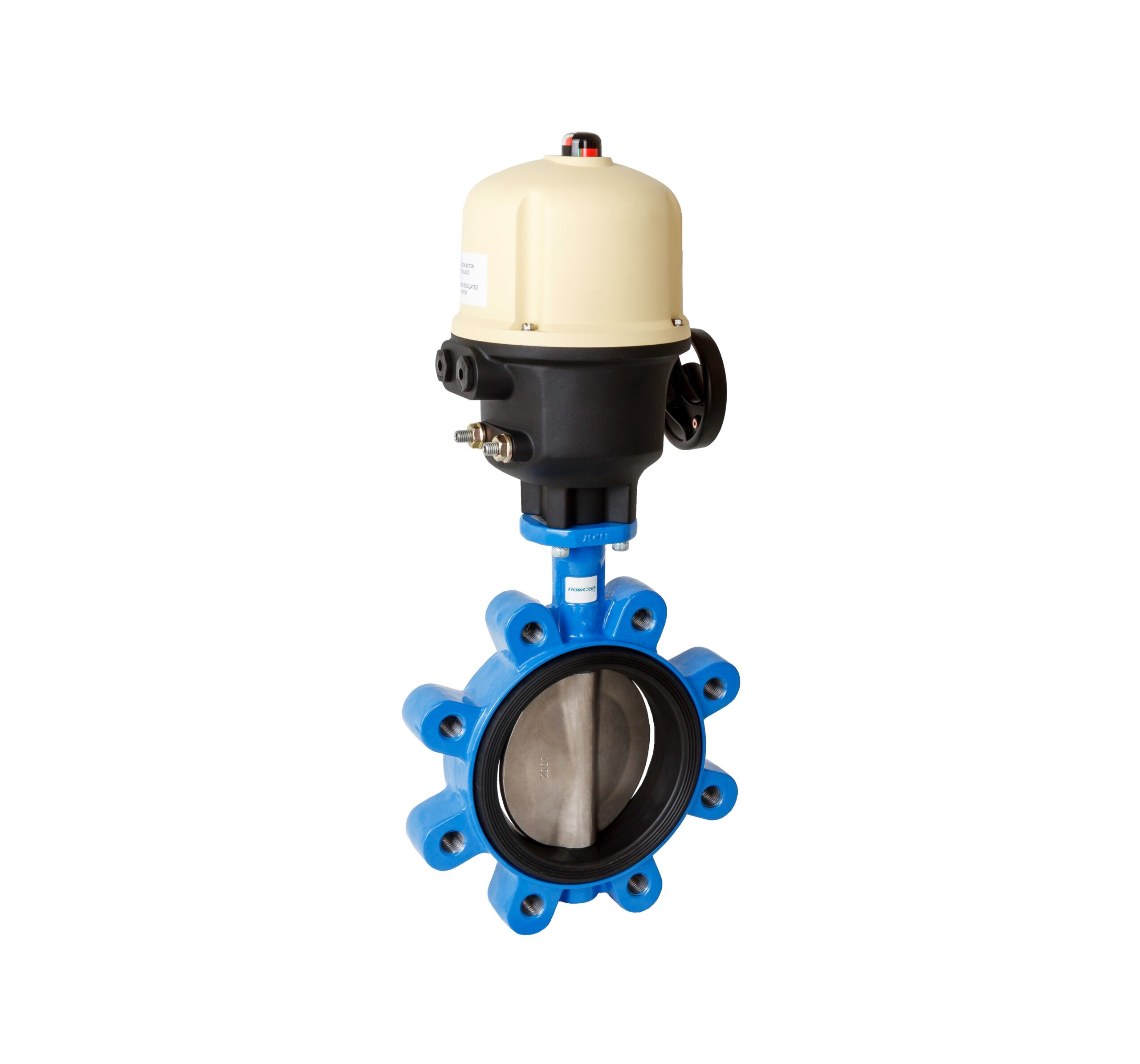

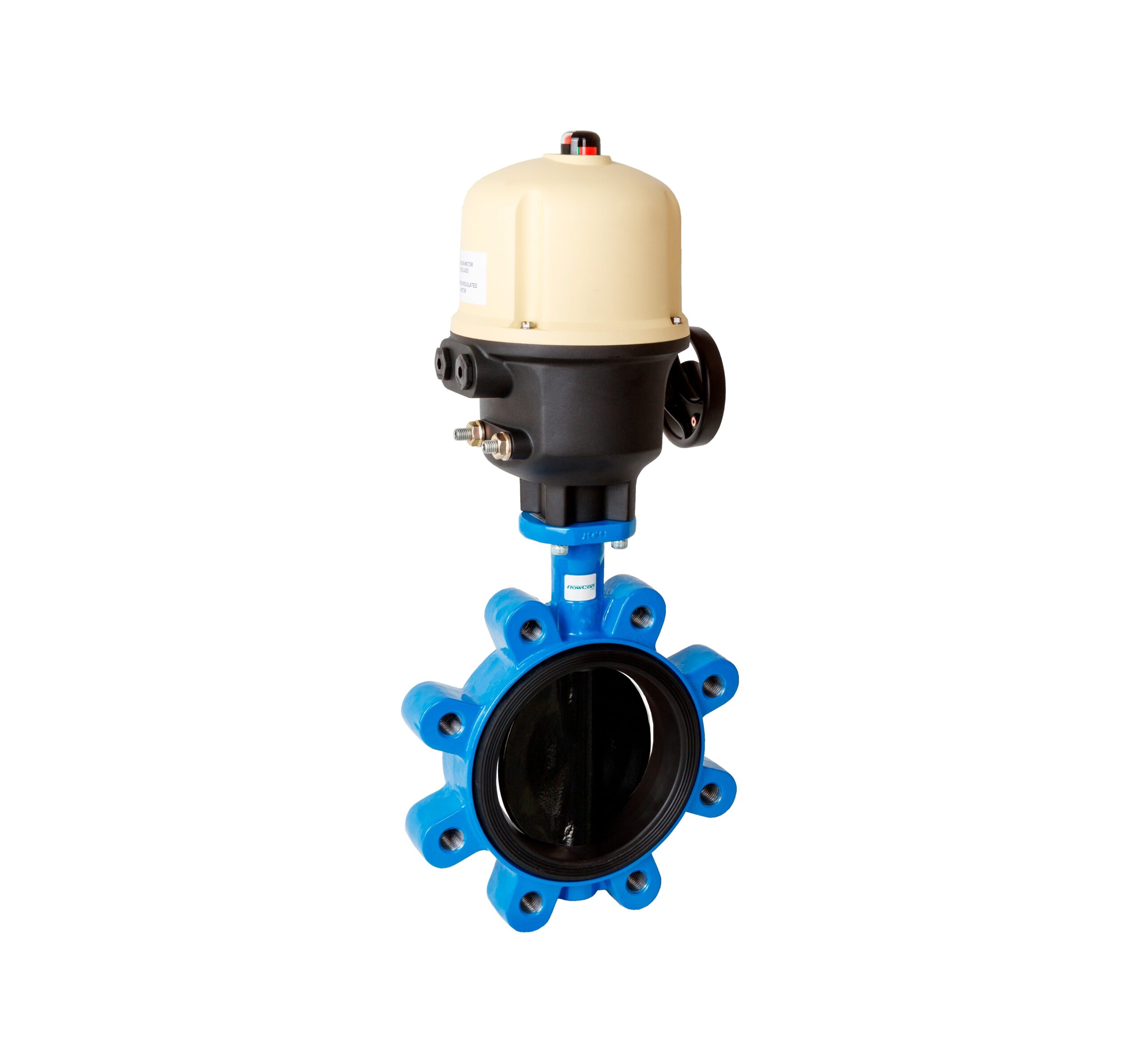

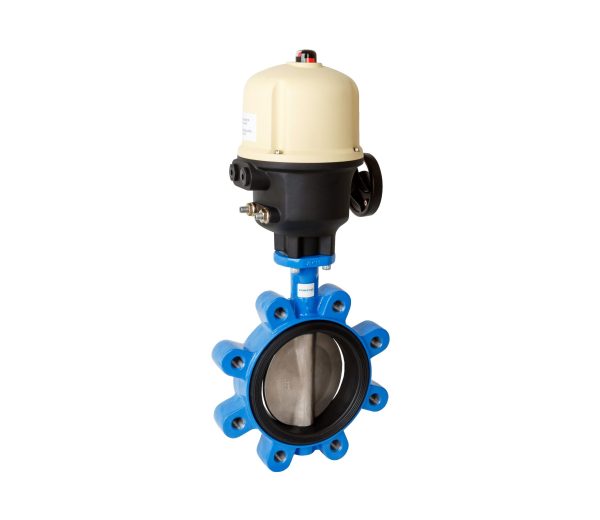

LUGN5_MSEENR_1603BC – Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Bernard Controls actuator – Replaceable – Pinless – EN 1092-2

FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.

This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges.

It operates through its high-quality actuator from Bernard Controls and provides fast, reliable flow-regulating and isolating.

This valve is suitable for water.

LUGN5-MSEENR-1603-8
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • Excellent control performance with bubble-tightness
  • Cost-efficient
  • Small size and light in weight
  • Small driving torque
  • Easy operation, and fast-acting
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 420
Thread: Metric
Seat: Replaceable
Construction: Pinless
External operator: Electrical actuator from Bernard Controls
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20) DIN 3202 T3 K1 – ISO 5752 T5 API 609
BS 5155 series (except DN 350)
Top flange acc. to ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.

MAIN MATERIALS

Asset-7

Body: Ductile Iron
Disc: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Electrical actuator: Ductile Iron
Coating: Epoxy

FIELD OF APPLICATION

Asset-7

Temperature range: -20 to 110°C
Max. working pressure: 16 bar
Media: Water

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
