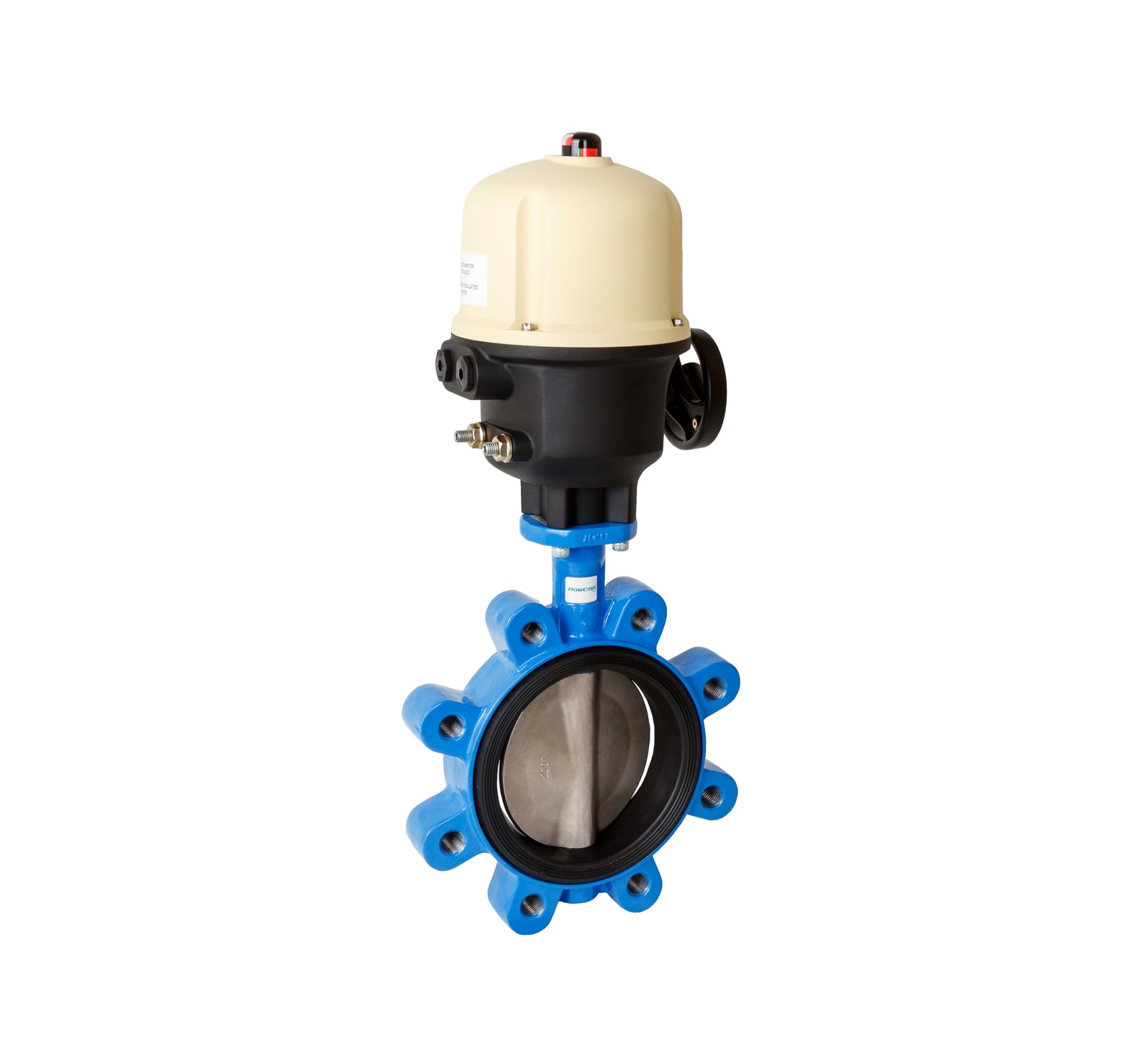

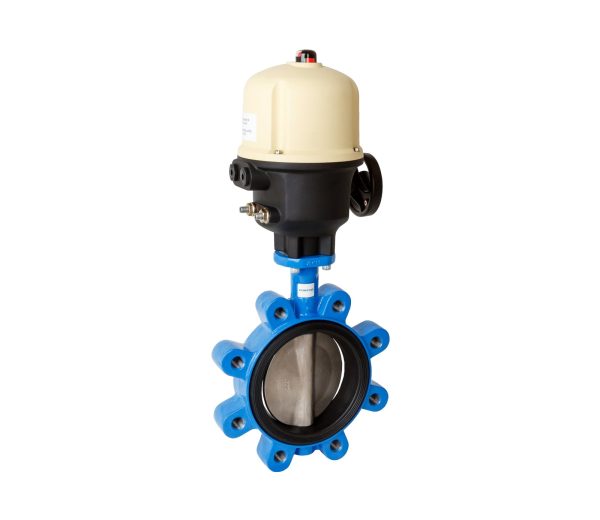

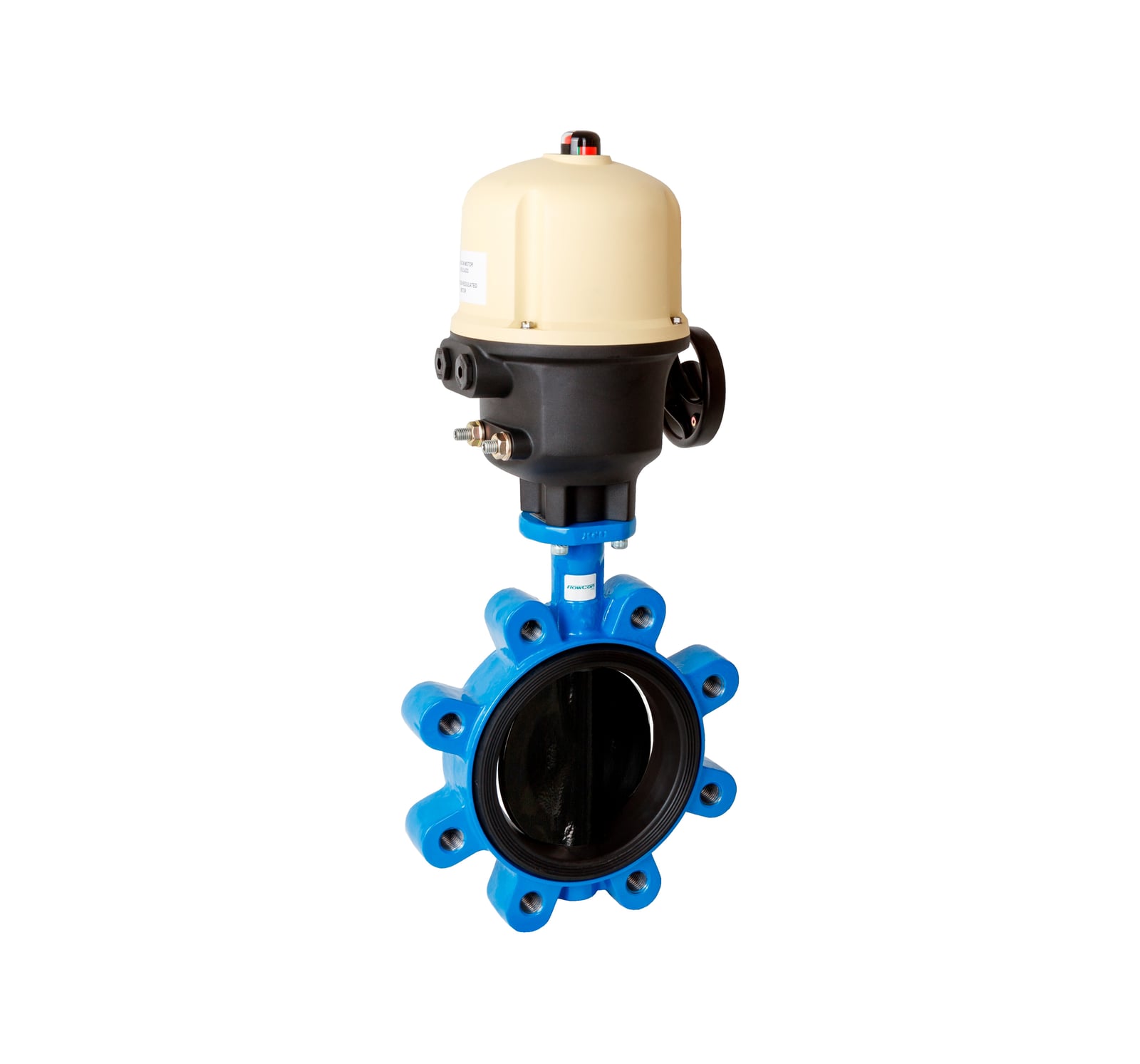

FIVC MOTORIZED LUGGED BUTTERFLY VALVE

LUGN5_MSEENV_1603BC – Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Bernard Controls actuator – Vulcanized – Pinless – EN 1092-2

FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.

This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges.

It operates through its high-quality actuator from Bernard Controls and provides fast, reliable flow-regulating and isolating.

This valve is suitable for water.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 420
Thread: Metric
Seat: Vulcanized
Construction: Pinless
External operator: Electrical actuator from Bernard Controls
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series DIN 3202 T3 K1 –
ISO 5752 T5 API 609
BS 5155 series (except DN 350)
Top flange acc. to ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.\
