FIVC WAFER BUTTERFLY VALVE
WAFN3_MDVENV_1620 – Ductile Iron body and disc – PN 16 – Wafer – Gearbox – Vulcanized – Pinless – EN 1092-2
This valve is constructed with four holes and is to be installed between two flanges in the pipeline. Please note that it is not suitable for dead-end services.
It operates through its high-quality gearbox providing comfortable and smooth flow-regulating and isolating.
This valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Wafer
Drilling: EN 1092-2 PN 16
Shaft: AISI 431
Seat: Vulcanized
Construction: Without pin
External operator: Gearbox
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558 (series 20)
Inspection test: BS EN 12266-1
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Ductile Iron
Stem: Stainless Steel
Seat: Vulcanized EPDM
Gearbox: Ductile Iron
Coating: Epoxy
FIELD OF APPLICATION
Temperature range: -15 to 120°C
Max. working pressure: 16 bar
Media: Water
DECLARATION
RELATED PRODUCTS

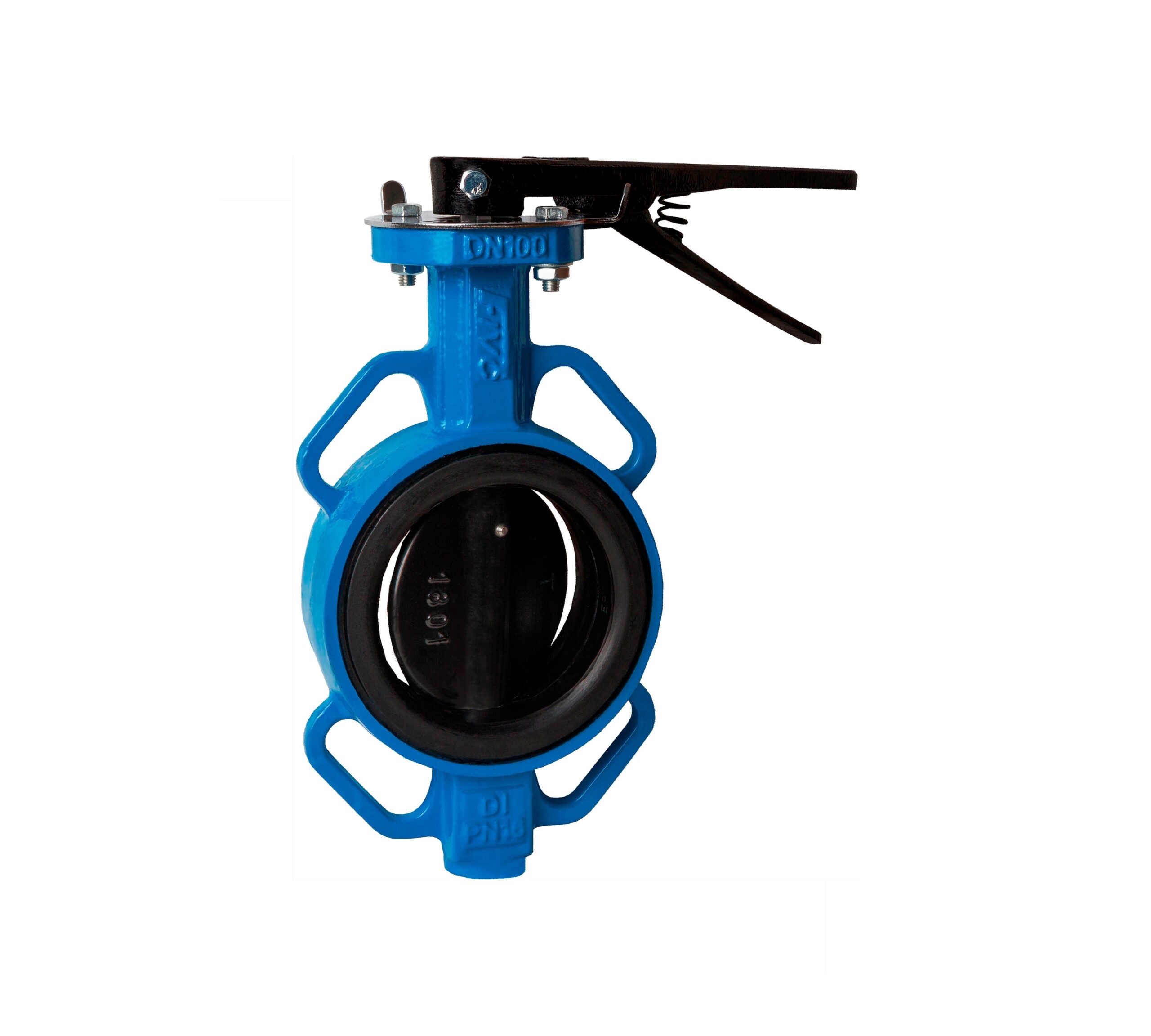

Ductile Iron body and disc – PN 16 – Wafer – Handlever – Vulcanized – w/Pin – EN 1092-2

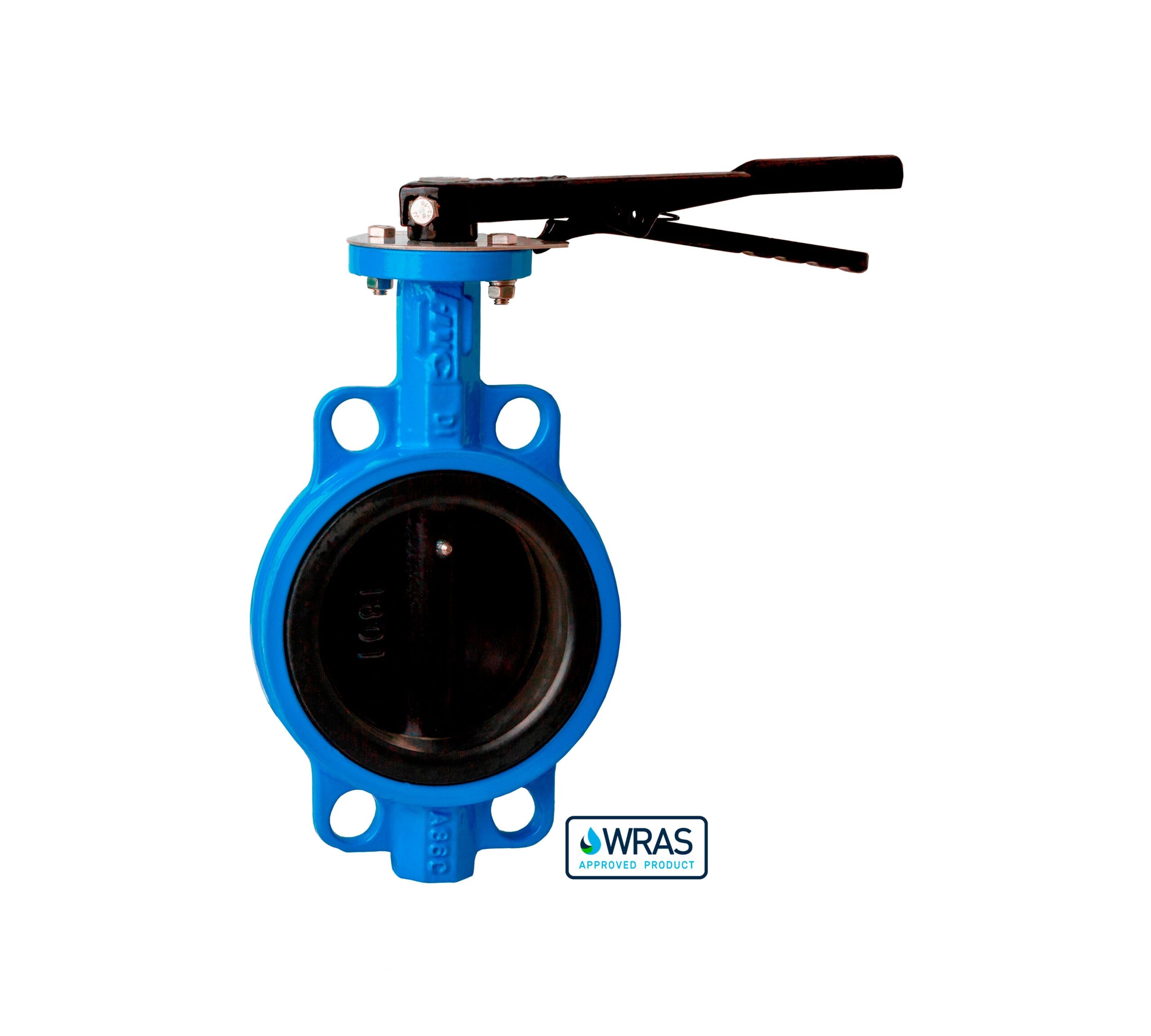

Ductile Iron body and disc – PN 16 – Wafer – Hand lever – Replaceable – w/Pin – WRAS – EN 1092-2

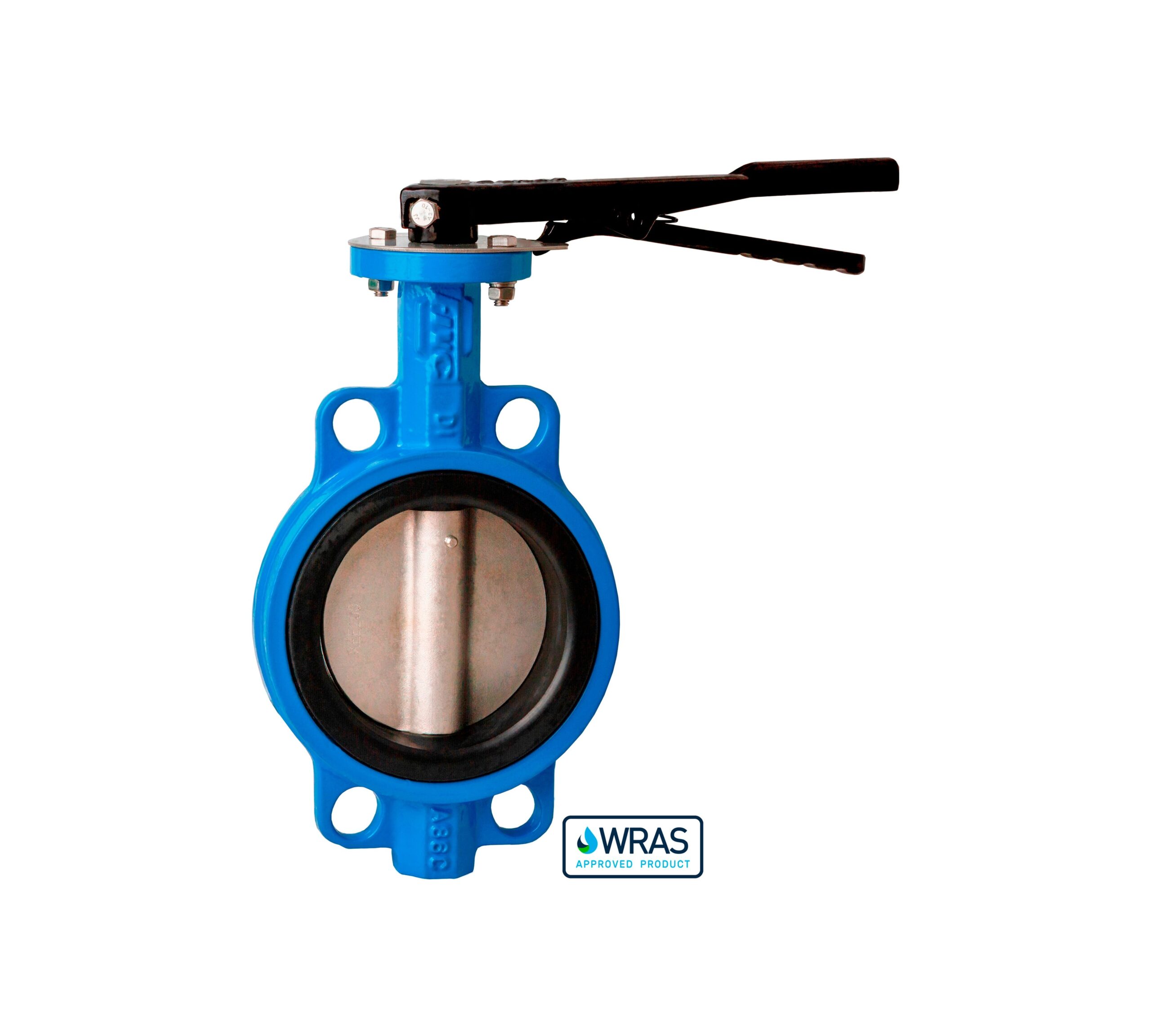

Ductile Iron body – Stainless Steel disc – PN 16 – Wafer – Hand lever – Replaceable – w/Pin – WRAS – EN 1092-2
