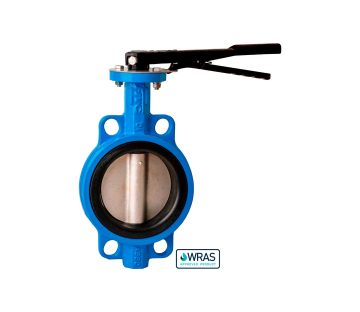

FIVC WAFER BUTTERFLY VALVE

WAFN3_MNEPR_1632 – Ductile Iron body and disc – PN 16 – Wafer – Hand lever – Replaceable – w/Pin – WRAS – EN 1092-2

FIVC Wafer Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.

This valve is constructed with four holes and is to be installed between two flanges in the pipeline. Please note that it is not suitable for dead-end services.

It operates through its robust and comfortable 15° notch hand lever that provides 7 to 10 lock positions.

This valve is suitable for drinking water and is WRAS-approved.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Regulating and isolating. Up to 90° turn movement.
Model: Wafer
Drilling: EN 1092-2 PN 16
Shaft: AISI 410
Seat: Replaceable
Construction: With pin
External operator: 15° notch hand lever with 7-10 lock positions.
Standard: BS EN 593
USP: WRAS-approved. Bubble tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.

MAIN MATERIALS

Body: Ductile Iron
Disc: Ductile Iron
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Hand lever: Ductile Iron
Coating: Epoxy

FIELD OF APPLICATION

Temperature range: -15 to 85° C
Max. working pressure: 16 bar
Media: Drinking water

DECLARATION

The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.

WRAS approval.
