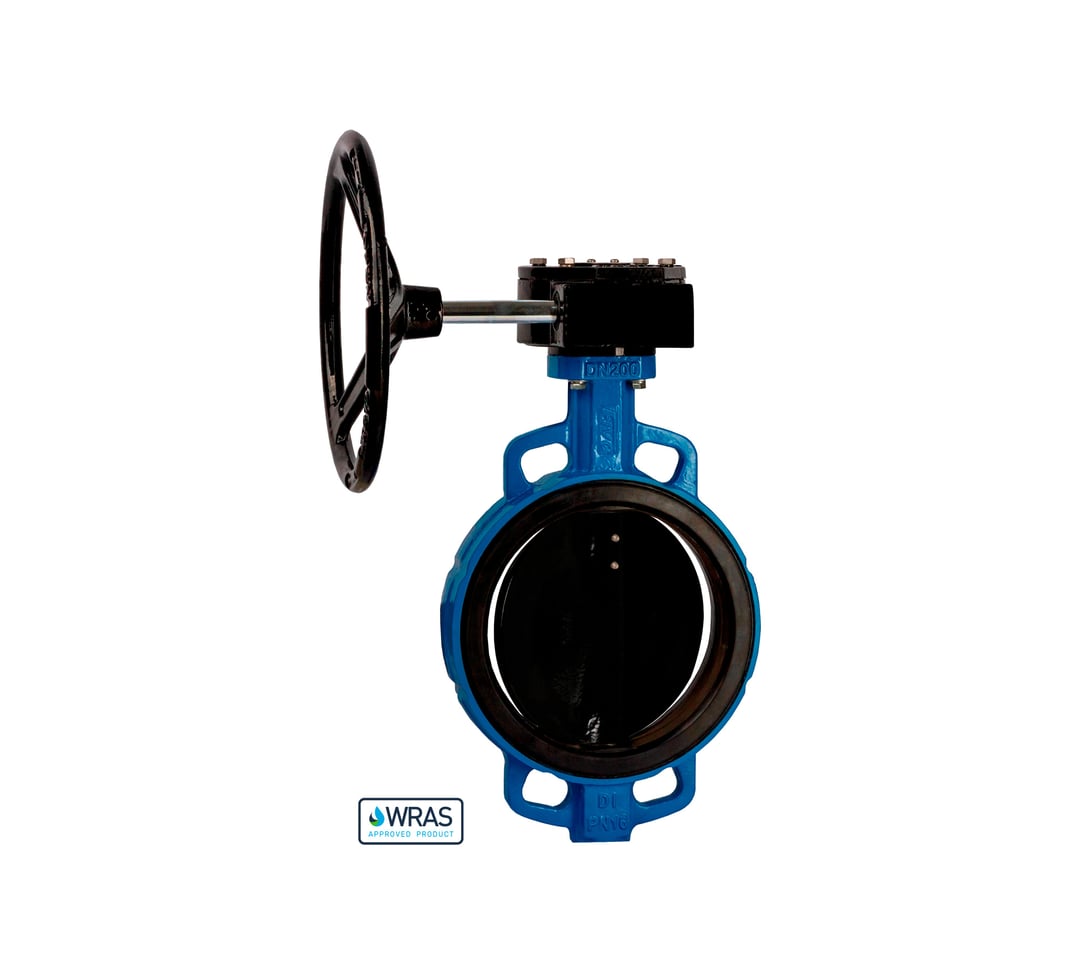

FIVC WAFER BUTTERFLY VALVE
WAFN4_MDVEPV_2520 – Ductile Iron body – Alu-Bronze disc – PN 25 – Wafer – Gearbox – Vulcanized – w/Pin – EN 1092-2
FIVC Wafer Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Wafer
Drilling: EN 1092-2 PN 25
Shaft:
DN 65-350: SS AISI 316
DN 400+: SS AISI 630
Seat: Vulcanized
Construction: With pin
External operator: Gearbox
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558 (series 20)
Inspection test: BS EN 12266-1
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Alu-Bronze
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Vulcanized EPDM
Gearbox: Ductile Iron
Coating: Epoxy
FIELD OF APPLICATION
Temperature range: -15 to 120°C
Max. working pressure: 25 bar
Media: Water
