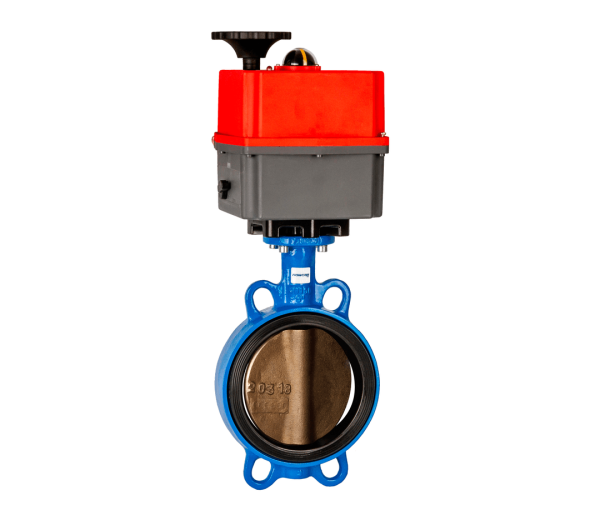

FIVC MOTORIZED WAFER BUTTERFLY VALVE
WAFN4_MSEENG_2501BC – Ductile Iron body – Alu-Bronze disc – PN 25 – Wafer – Bernard Controls actuator – Glued – EN 1092-2
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Wafer
Drilling: EN 1092-2 PN 25
Shaft: SS AISI 420/1.4542
Seat: Glued
Construction: Pinless
External operator: Electrical actuator from Bernard Controls
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20)
Tests: Hydraulic test acc. to 12266/ISO 5208
Resistance: Open valve: 37.5 kg/cm3
Closed valve: 27.5 kg/cm3
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Alu-Bronze
Stem: Stainless Steel
Seat: Glued EPDM
Electrical actuator: Ductile Iron
Coating: Epoxy
FIELD OF APPLICATION
Temperature range: -20 to 110°C
Max. working pressure: 25 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
