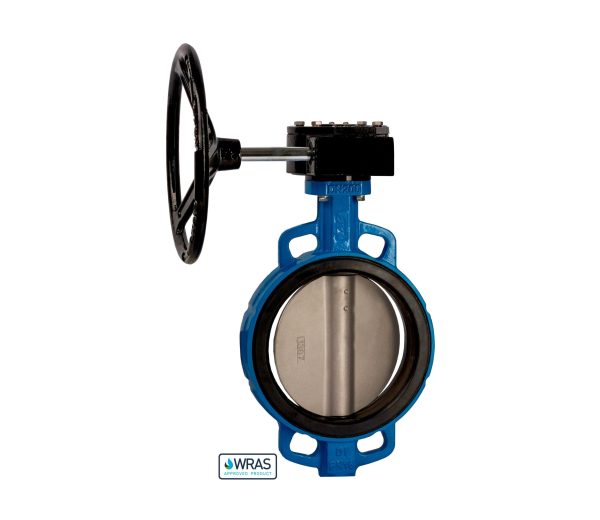

FIVC WAFER BUTTERFLY VALVE

WAFN5_MDVEPR_1632 - Ductile Iron body – Stainless Steel disc – PN 16 – Wafer – Gearbox – Replaceable – w/Pin – WRAS – EN 1092-2

FIVC Wafer Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.

This valve is constructed with four holes and is to be installed between two flanges in the pipeline. Please note that it is not suitable for dead-end services.

It operates through its high-quality gearbox providing comfortable and smooth flow-regulating and isolating.

This valve is suitable for drinking water and is WRAS-approved.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Self-actuating, except for regular screen cleaning.
Screen type: Mesh
Threading: ISO 228
USP: Excellent system protector. Long lifetime.

MAIN MATERIALS

Body:
DN 15-25: Brass CW617N
DN 32-50: Brass Delta C
Cap: Brass CW617N
Screen: Stainless Steel
Gasket: PTFE
Finishing: Sandblast

FIELD OF APPLICATION

Max. temperature: 80 °C
Max. working pressure: 20 bar
The number of holes per cm2 of the screen:
DN 15-25: 150 and DN 32-50: 80
Media: Water

DECLARATION

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
