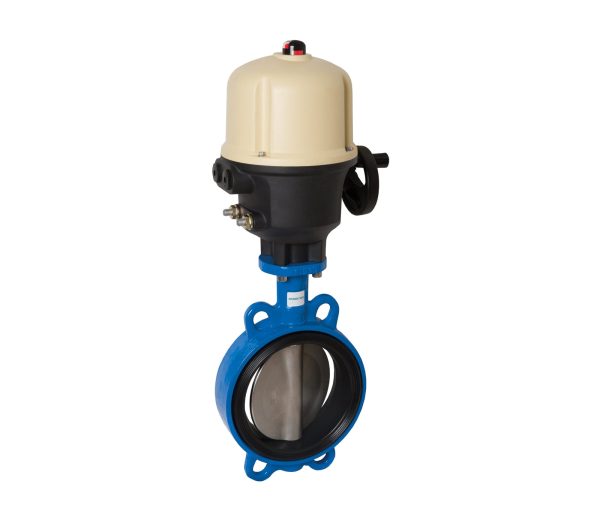

FIVC Wafer Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.
This valve is constructed with four holes and is to be installed between two flanges in the pipeline. Please note that it is not suitable for dead-end services.
It operates through its high-quality actuator from Bernard Controls and provides fast and reliable flow-regulating and isolating.
This valve is suitable for water.
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Wafer
Drilling: EN 1092-2
Shaft: SS AISI 420
Seat: Replaceable
Construction: Pinless
External operator: Electrical actuator from Bernard Controls
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20)
DIN 3202 T3 K1 – ISO 5752 T5 API 609 BS 5155 series (except DN 350)
Top flange acc. to ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
Body: Ductile Iron
Disc: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Electrical actuator: Ductile Iron
Coating: Epoxy
Temperature range: -20 to 110°C
Max. working pressure: 16 bar
Media: water

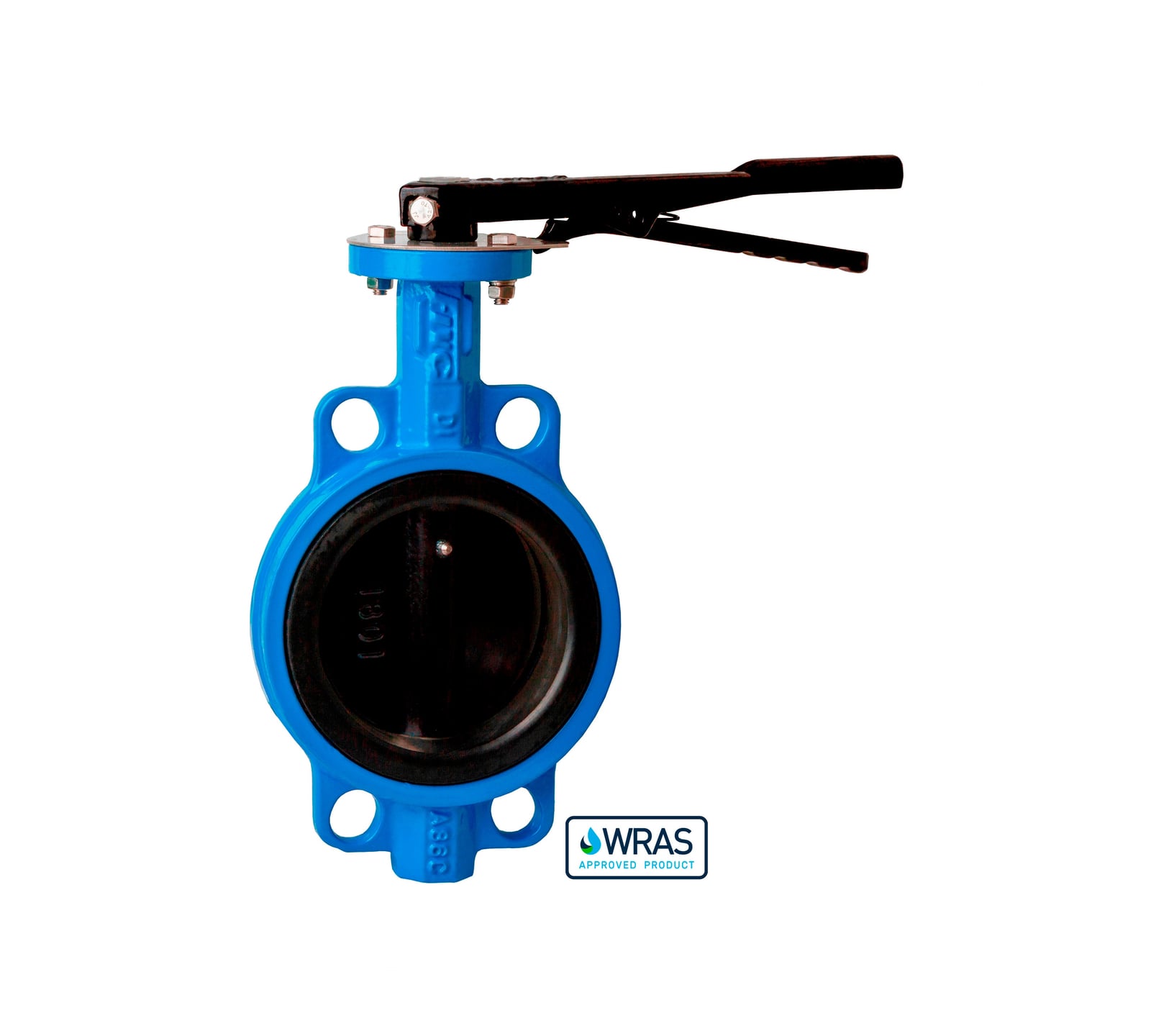

Ductile Iron body and disc – PN 16 – Wafer – Hand lever – Replaceable – w/Pin – WRAS – EN 1092-2

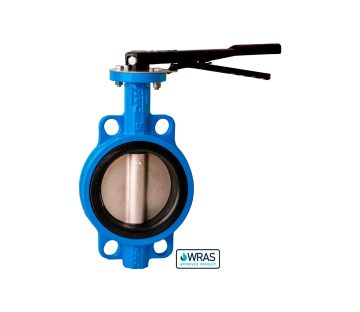

Ductile Iron body and disc – PN 16 – Wafer – Hand lever – Replaceable – w/Pin – WRAS – EN 1092-2
