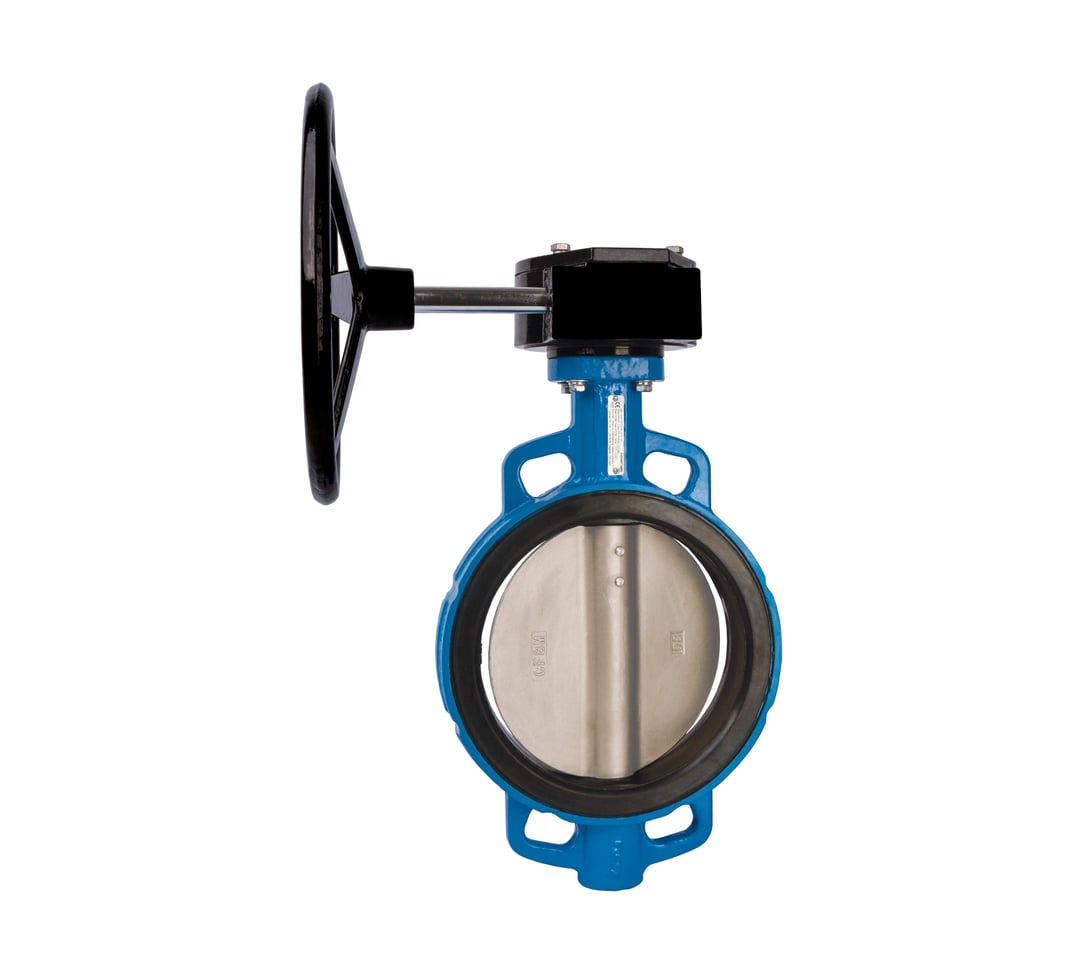

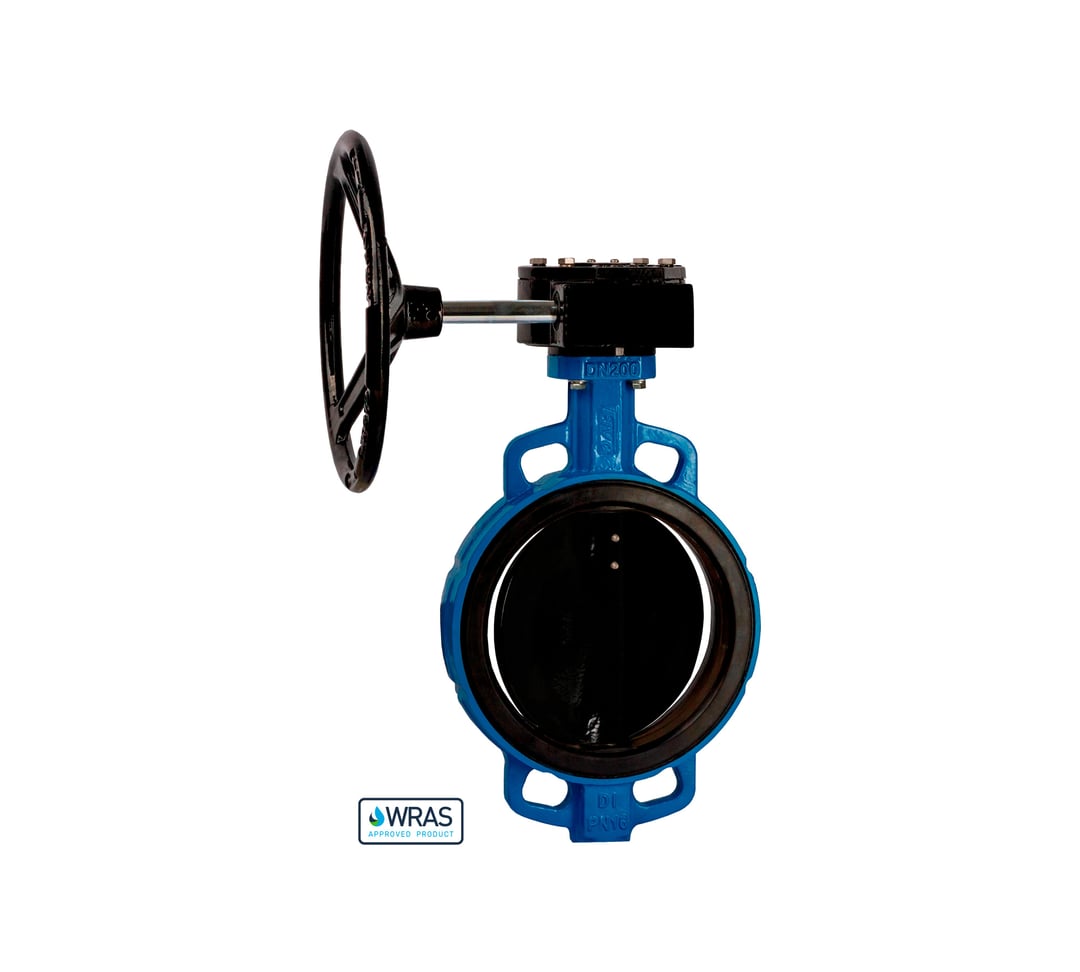

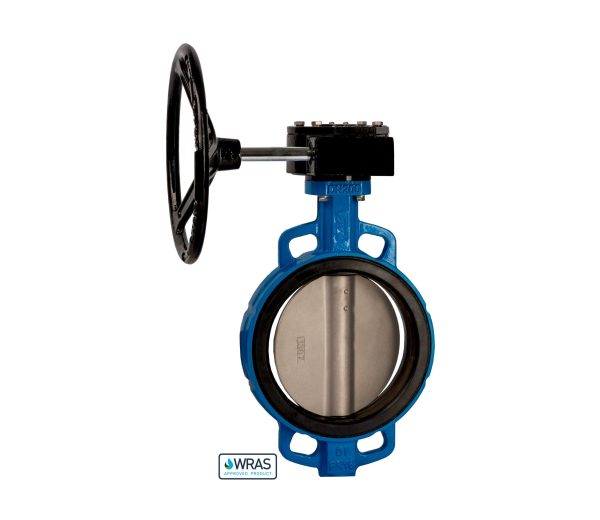

FIVC Wafer Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.
This valve is constructed with four holes and is to be installed between two flanges in the pipeline. Please note that it is not suitable for dead-end services.
It operates through its high-quality gearbox providing comfortable and smooth flow-regulating and isolating.
This valve is suitable for drinking water and is WRAS-approved.
Function and benefits
QUICK DATASHEET DOWNLOAD
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Wafer
Drilling: EN 1092-2 PN 16
Shaft: Shaft: SS AISI 410
Seat: Replaceable
Construction: With pin
External operator: Gearbox
Standard: BS EN 593
USP: WRAS approved. Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
Body: Ductile Iron
Disc: Stainless Steel
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Gearbox: Ductile Iron
Coating: Epoxy
Temperature range: -20 to 110°C
Max. working pressure: 16 bar
Media: Water
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
WRAS approval.
Size, material, approval, pressure rate, etc. are available upon request.
