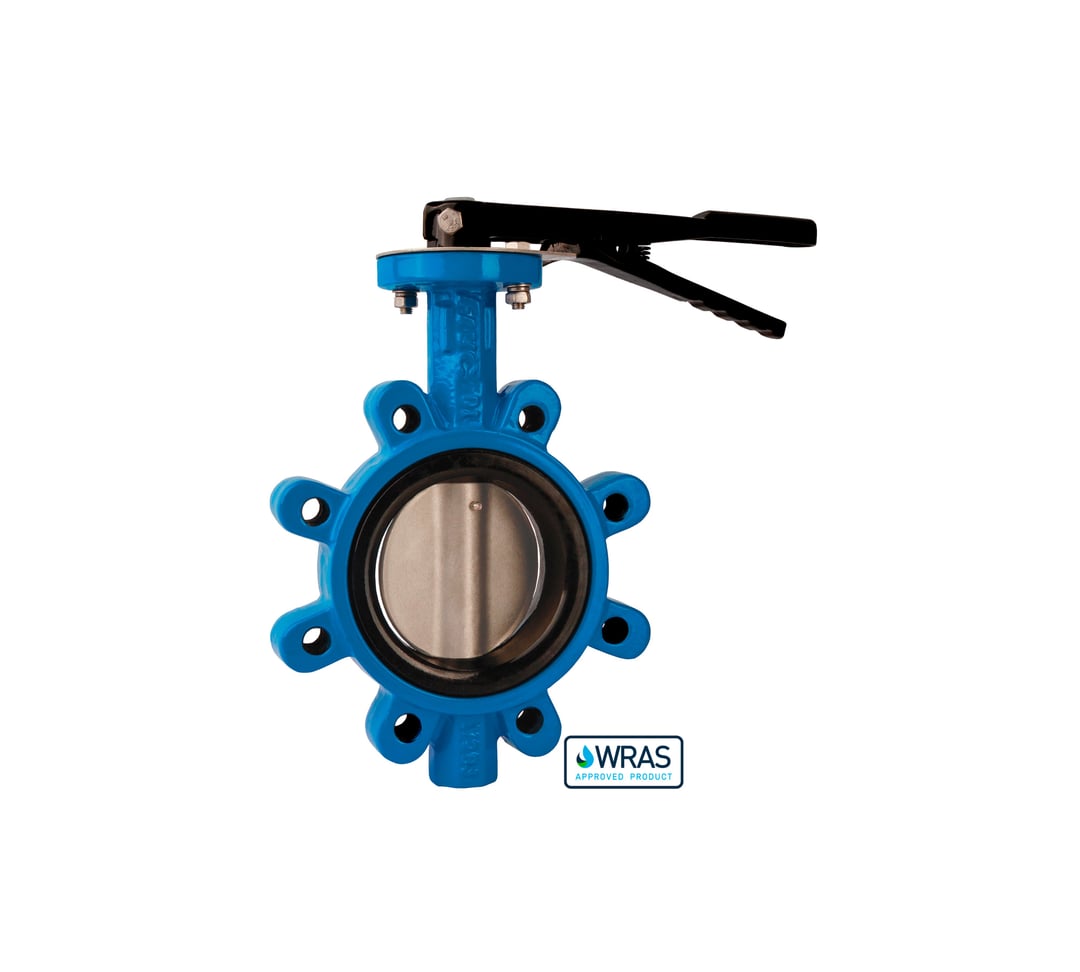

FIVC LUGGED BUTTERFLY VALVE

LUGN5_MNENR_1603 – Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Hand lever – Replaceable – Pinless – EN 1092-2

FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.
This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges.
It operates through its robust and comfortable 15° notch hand lever that provides 7 to 10 lock positions.
This valve is suitable for water.
LUGN5_MNENR_1603
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Regulating and isolating. Up to 90° turn movement.
Model: U-Flanged
Drilling: ANSI 150
Shaft: SS AISI 420
Thread: UNC
Seat: Replaceable
Construction: Pinless

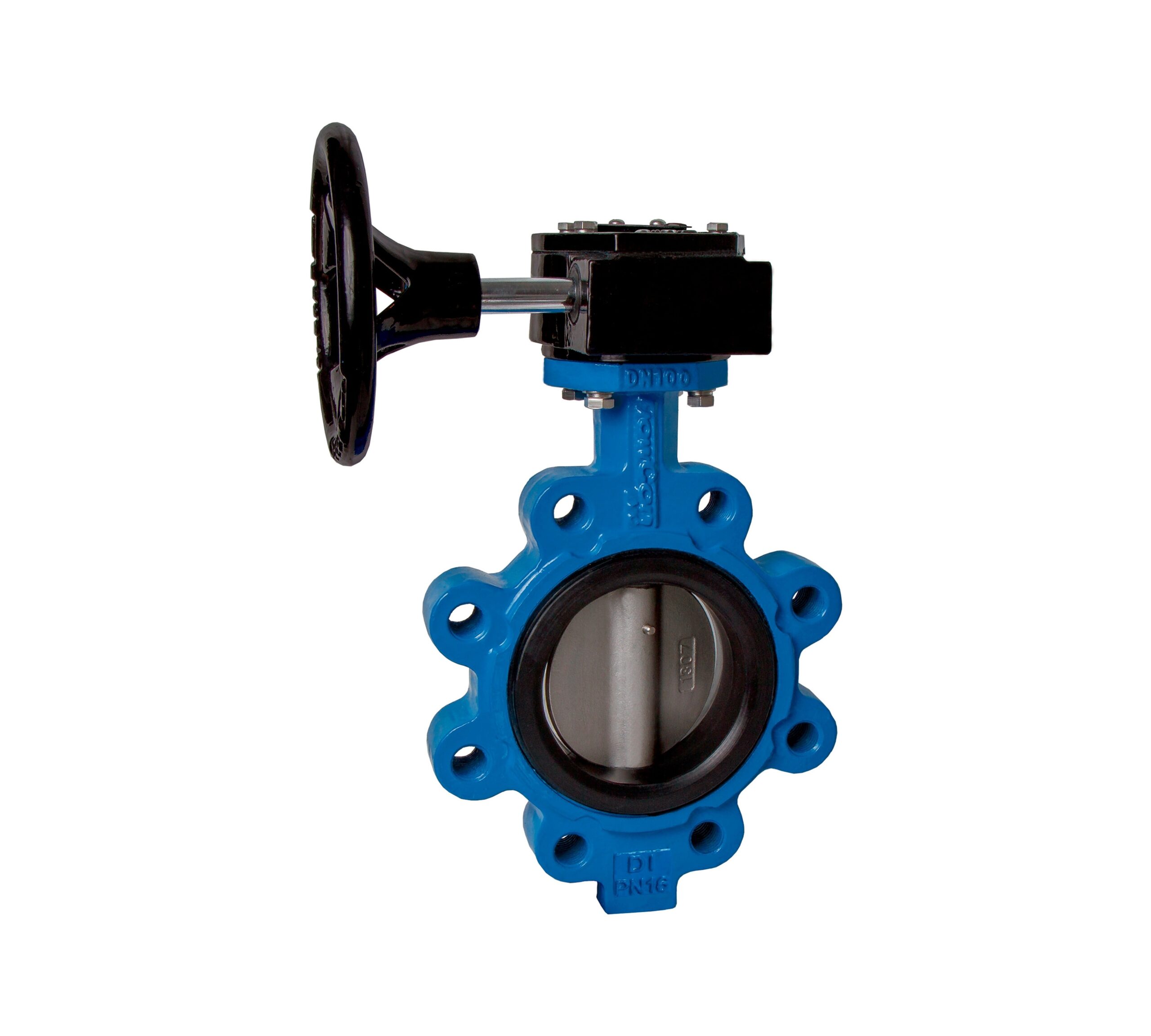

External operator: Gearbox
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20)
Top flange acc. to ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.

MAIN MATERIALS

Asset-7

Body: Ductile Iron
Disc: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Hand lever: Malleable Iron
Coating: Epoxy

FIELD OF APPLICATION

Asset-7

Temperature range: -20 to 110° C
Max. working pressure: 16 bar
Media: Water

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
