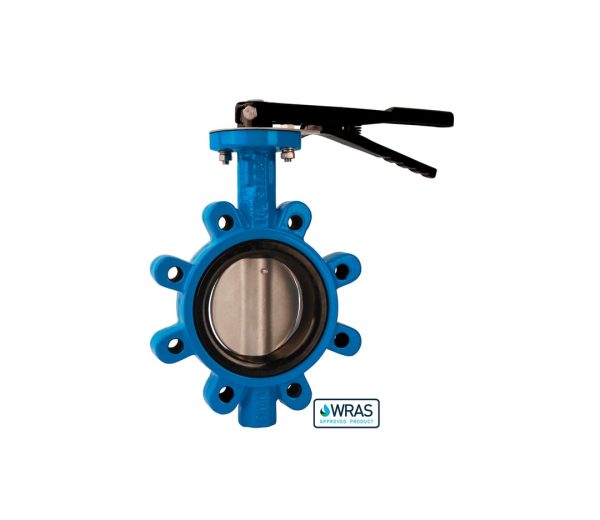

FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.
This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges.
It operates through its robust and comfortable 15° notch hand lever that provides 7 to 10 lock positions.
This valve is suitable for drinking water and is WRAS-approved.
Function and benefits
QUICK DATASHEET DOWNLOAD
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 410
Thread: Metric
Seat: Replaceable
Construction: With pin
External operator: 15° notch hand lever with 7-10 lock positions.
Standard: BS EN 593
USP: WRAS-approved. Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
Body: Ductile Iron
Disc: Stainless Steel
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Hand lever: Malleable Iron
Coating: Epoxy
Temperature range: -15 to 85° C
Max. working pressure: 16 bar
Media: Water
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products
Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Gearbox – Vulcanized – w/Pin – EN 1092-2
