F2GL B16 C24 - FlowCon IVC

FIVC WAFER BUTTERFLY VALVE

WAFN5_MDVEPR_1632 - Ductile Iron body – Stainless Steel disc – PN 16 – Wafer – Gearbox – Replaceable – w/Pin – WRAS – EN 1092-2

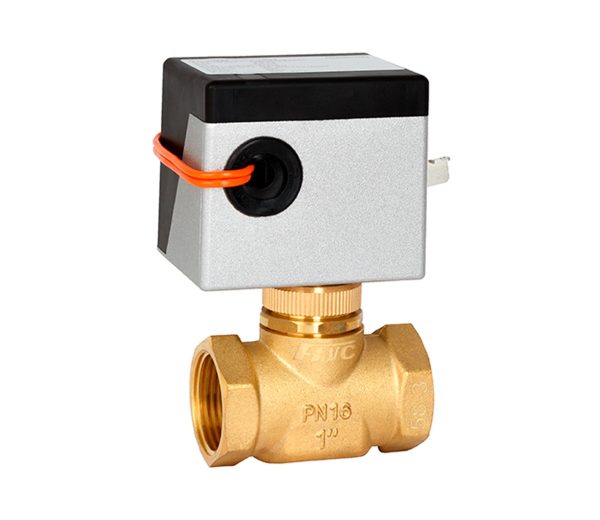

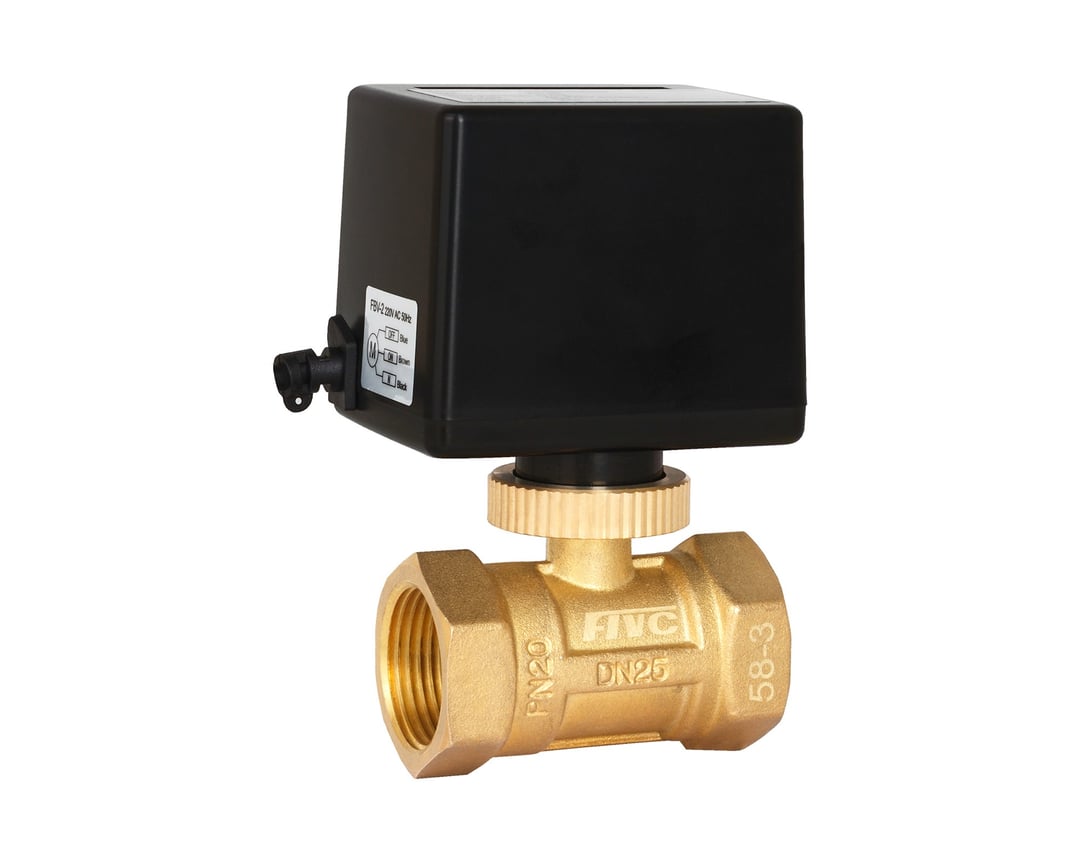

FIVC Motorized Globe Valve is designed with a high-quality electrical ON-OFF actuator that offers excellent control performance, allowing flow isolation and/or regulation that reduces energy consumption.

For many HVAC industries, motorized 2-way valves are a perfect choice, especially for safety applications since they are able to stop fluid flow in the event of a power failure.

Additionally, the 2-way globe valve is fast-acting and has a failsafe system that ensures flow stops in the event of a power outage.

The actuator includes an integrated clutch that enables operating the valve manually.

This valve is suitable for water.

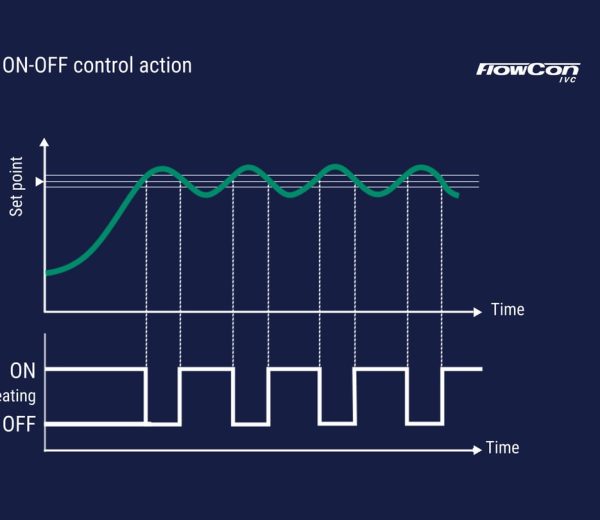

The valve is commonly used in fan coil units, cooling ceilings, or cooling/heating ends and is electrically connected to a room thermostat or temperature controller. The valve reacts by opening or closing to maintain temperature according to the temperature setpoint on the temperature controller.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Self-actuating, except for regular screen cleaning.
Screen type: Mesh
Threading: ISO 228
USP: Excellent system protector. Long lifetime.

MAIN MATERIALS

Body:
DN 15-25: Brass CW617N
DN 32-50: Brass Delta C
Cap: Brass CW617N
Screen: Stainless Steel
Gasket: PTFE
Finishing: Sandblast

FIELD OF APPLICATION

Max. temperature: 80 °C
Max. working pressure: 20 bar
The number of holes per cm2 of the screen:
DN 15-25: 150 and DN 32-50: 80
Media: Water

DECLARATION

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
