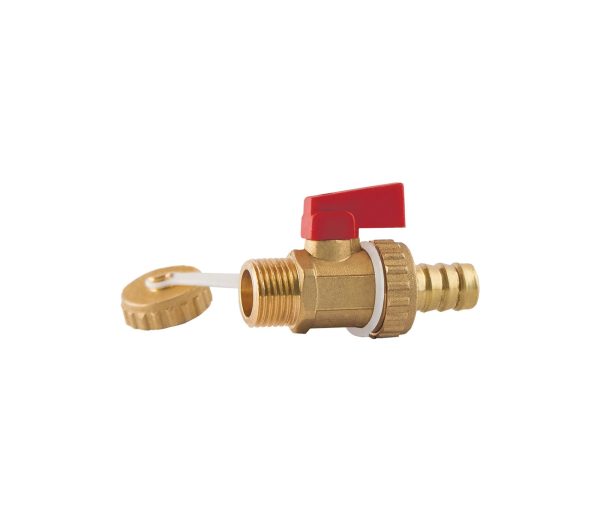

FIVC DRAIN COCK

FBA_B10_D – Brass – PN 10 – w/Ball – ISO 228

The FIVC Drain Cock is designed as a quarter-turn, full port valve for use in pipeline isolation.

This drain cock is suitable for water and non-dangerous liquids to the copper alloys.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Manual operated ON/OFF by handle rotation
Threading: ISO 228
USP: Easy shut-off. Long lifetime.

MAIN MATERIALS

Body: Brass CW617N
Stem: NBR rubber
Cap: Brass CW617N
Nut: Brass CW617N
Ball: Nickel and Chromium plated
Finishing: Sandblast
Seat: NBR rubber
Handle: Red ABS

FIELD OF APPLICATION

Max. temperature: 80 °C
Max. working pressure: 10 bar
Media: Water
Non-dangerous liquids to the copper alloys.

DECLARATION

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
