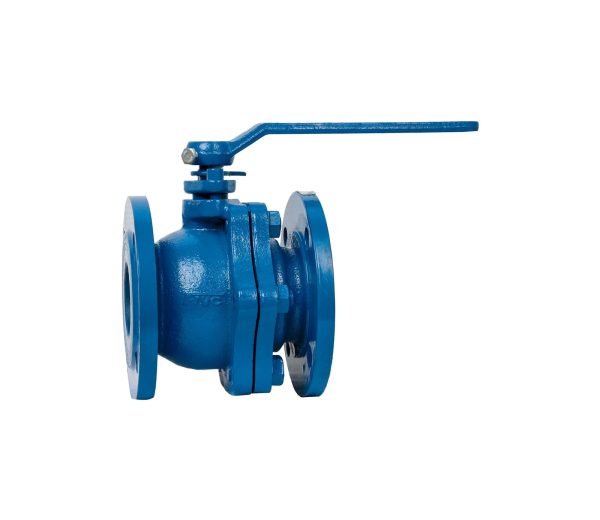

FIVC BALL VALVE

FBA_C16_F215 – Grey Cast Iron – PN 16 – EN 1092-2

The FIVC Ball Valve is designed as a quarter-turn, full port valve for use in pipeline isolation.

This ball valve is suitable for water.
FBA-C16-F215-4
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • Excellent flow isolation
  • Minimum friction loss
  • Long lifespan
  • Durable and reliable
  • Cost- and maintenance efficient
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Manual operated ON/OFF by handle rotation
Flange: EN 1092-2 PN 16
Design: DIN 2501/DIN 2533 API 598 or ISO 5208
DN 65-100: DIN F4
DN 125-300: DIN F5
USP: Excellent and easy shut-off. Durable. Long lifetime.

MAIN MATERIALS

Asset-7

Body: Grey Cast Iron
Gasket: Stainless Steel+Graphite
Seat: PTFE
Ball: Stainless Steel
Stem: Stainless Steel
Handle: Ductile Iron

FIELD OF APPLICATION

Asset-7

Temperature range: -10 to 120 °C
Max. working pressure: PN 16
Media: Water

DECLARATION

Asset-7

The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.

RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL
General-services
Irrigation-system

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

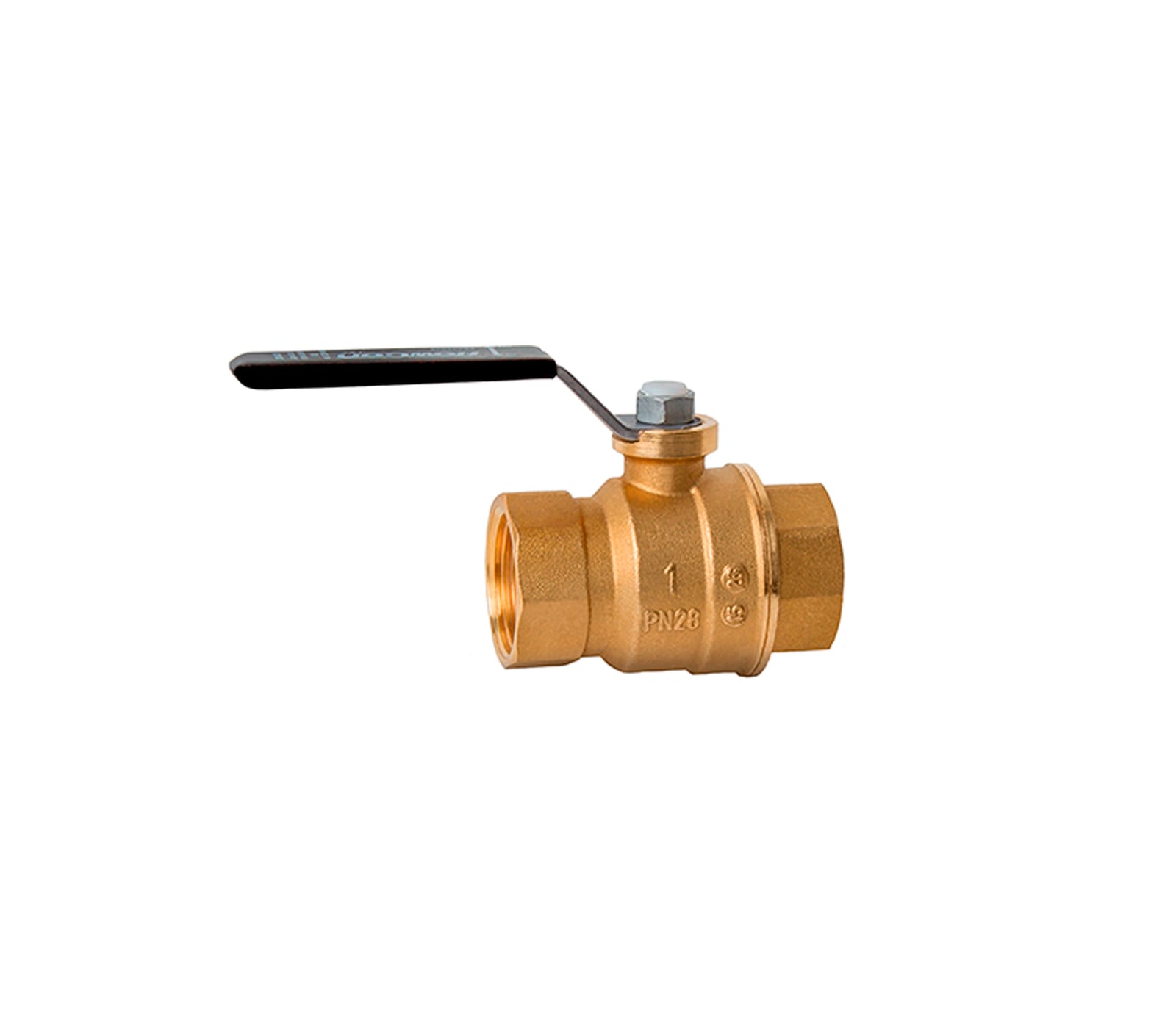

FBA_B35_F21001

Brass – PN 35/28 – ISO 228

PDF

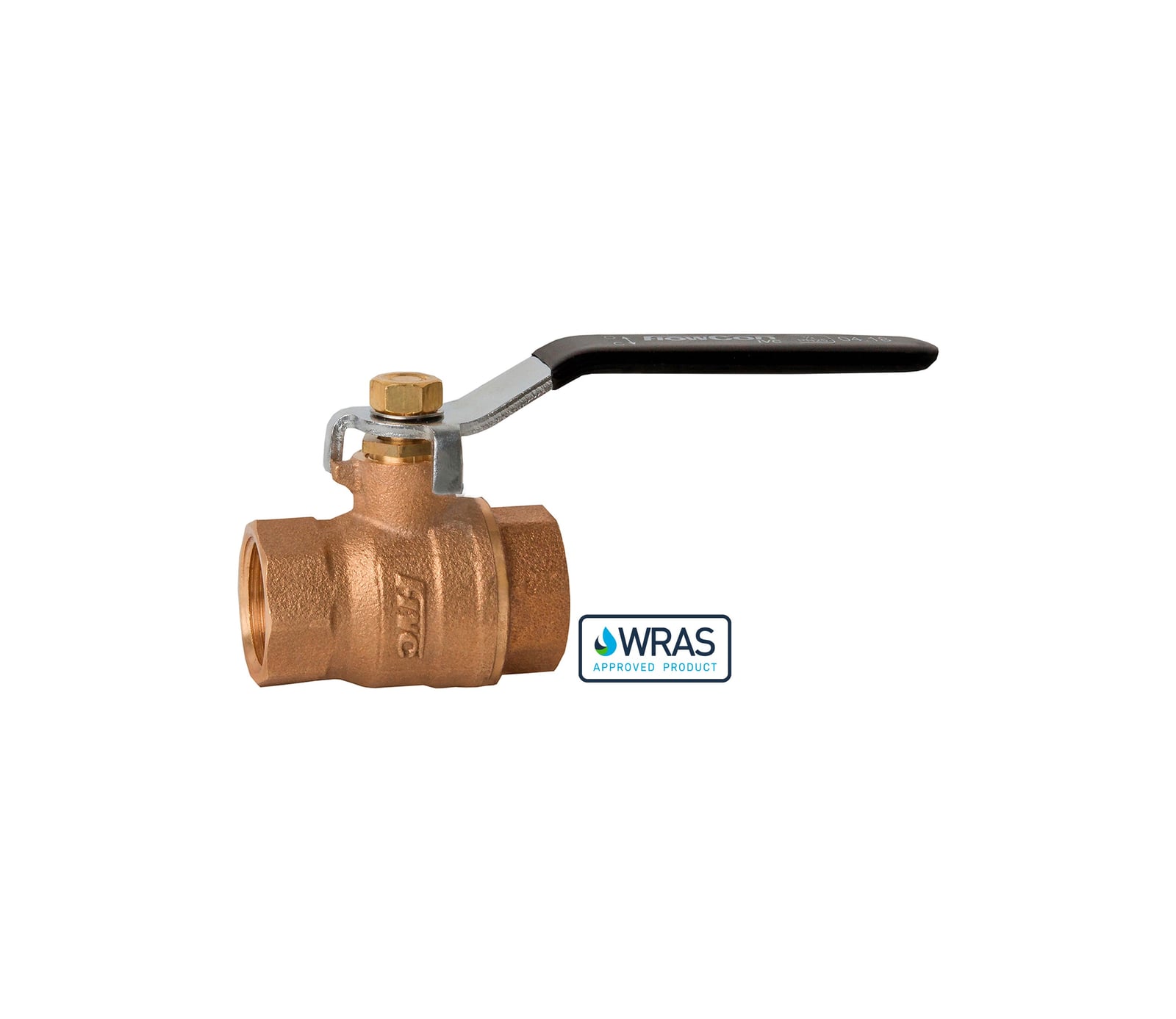

FBA_O25_F212012112
Bronze – PN 25 – Full port – WRAS
PDF

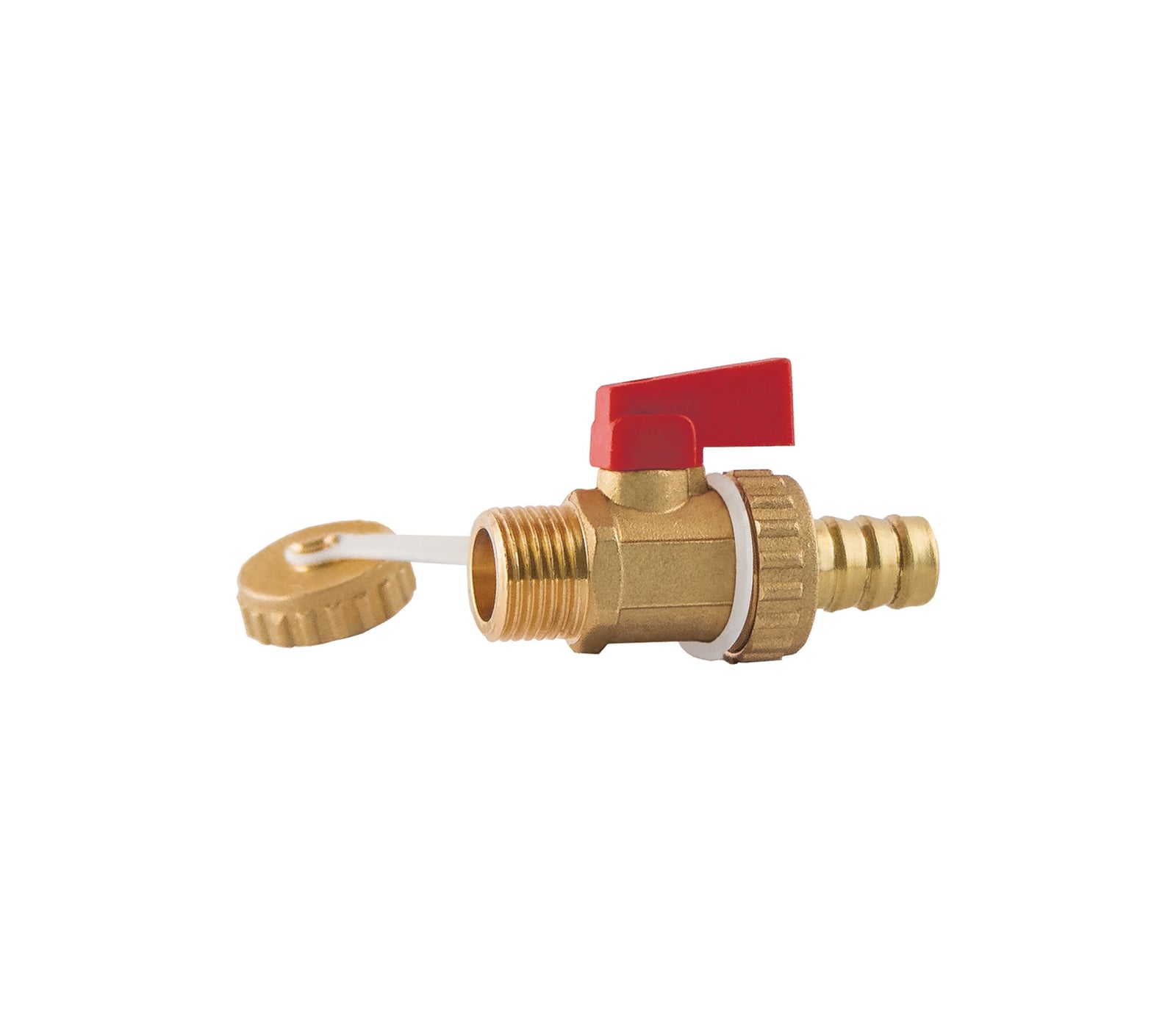

FBA_B10_D
