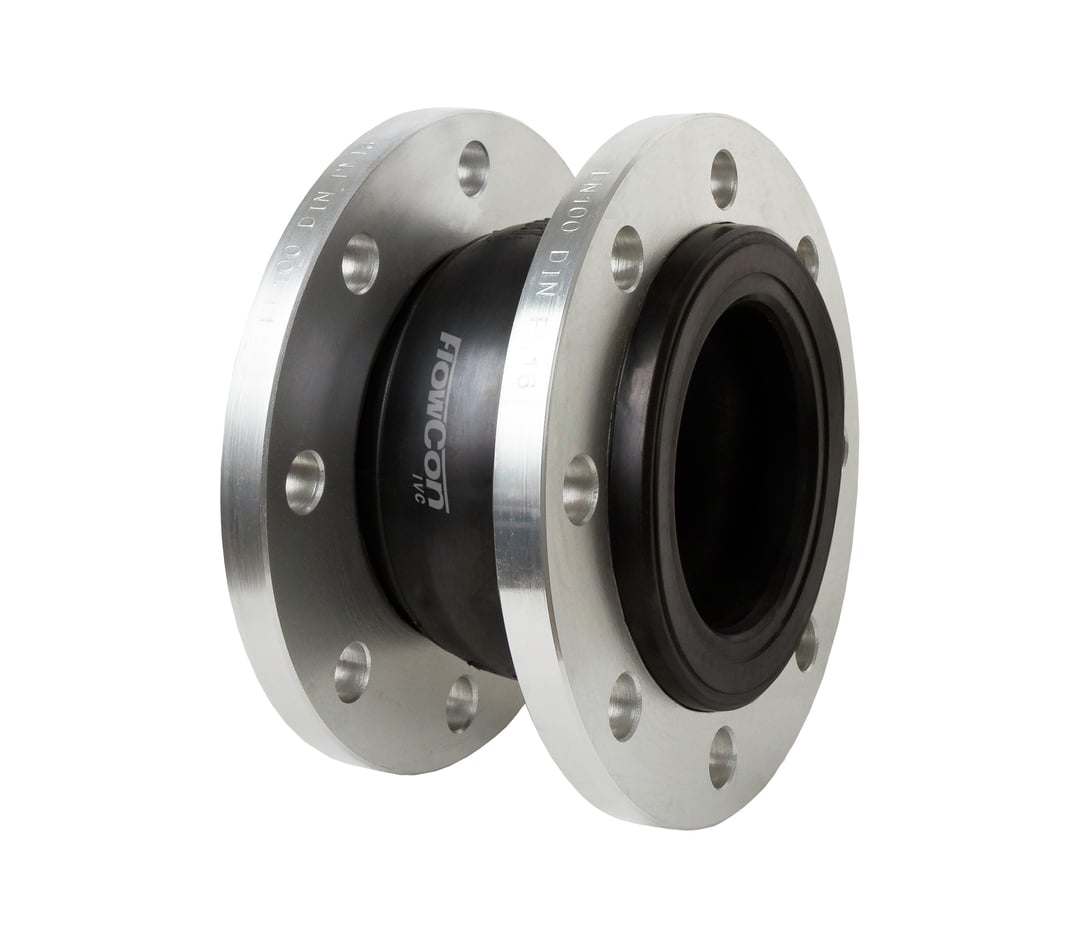

FIVC EXPANSION JOINT
FFC_W25_EPDM01 – EPDM rubber – SS fitting – PN 25 – Single Sphere Union – EN 1092-2
The FIVC Expansion Joint is designed to be installed in pipelines as a safety component to eliminate the effects of thermal expansion, a movement induced by vibration. Its main task is to absorb sound and manage the pipeline’s thermal energy and shock, thereby protecting the system from damage.
The expansion joint is not only a solution for the internal movement and vibration in the system but is also a proper solution for managing the cyclic motion associated with temperature changes in the application system. The hose is to be connected between water supply networks and is frequently used in fan-coil units.
This valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Eliminates the effects of thermal expansion
- Absorb sound
- Reduces vibrations
- High strength
- Increases system durability and versatility
- Ideal for systems that require flexibility and adaptability
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Absorb sound, thermal energy in 4 directions, and shock.
Spherical design: Single
Drilling: EN 1092-2
USP: Pump and system component protection. High strength and flexibility. Long lifespan leading to cost efficiency. Noteworthy efficient noise reduction. Anti-burst damage and good elasticity.
MAIN MATERIALS
Rubber: EPDM
Carcass: Nylon Cord Fabric
Reinforcing wire: Carbon Steel
Flange: Carbon Steel
FIELD OF APPLICATION
Temperature range: -15 to 115 °C
Max. working pressure: 25 bar
Max. bursting pressure: 60 bar
Vacuum rating: 750 mmHg
Media: Cold/hot water, steam, oxidant, animal, and vegetable oils.
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014 and is CE marked.

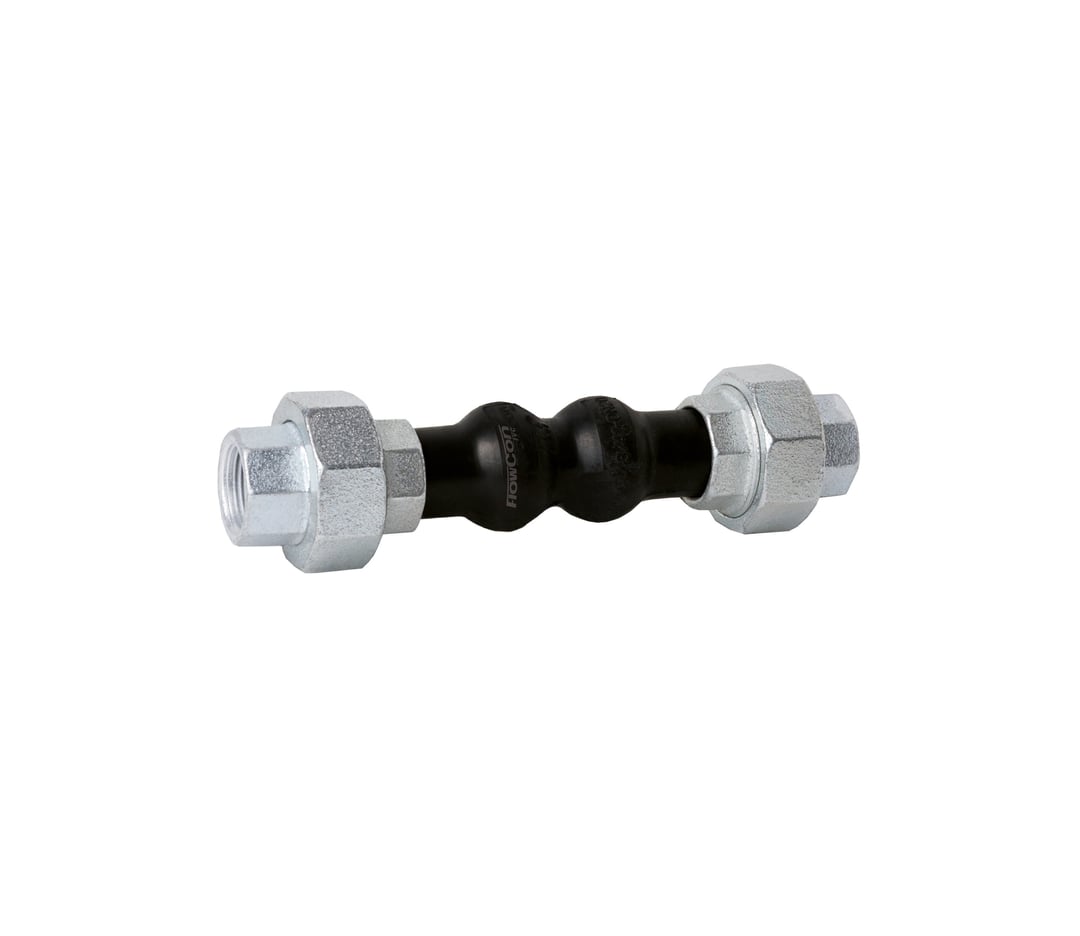

RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
