FIVC FLEXIBLE HOSE

FFL_BBS_MF01 – Stainless Steel braiding – EPDM rubber – PN 6/10/15/30 – MF connection

The FIVC Flexible Hose is designed to be installed in pipelines as a safety component to eliminate the effects of thermal expansion, a movement induced by vibration. Its main task is to absorb sound and manage thermal energy and shock in the pipeline and thereby protecting the system from damage. The expansion joint is not only a solution for the internal movement and vibration in the system but is also a proper solution for managing the cyclic motion associated with temperature changes in the application system. The hose is to be connected between water supply networks and is frequently used in fan-coil units.

Two series available

Low-pressure hoses: FFL series
High-pressure hoses: FFH series

This valve is suitable for water.

FFL-BBS-MF01-with-and-without-insulation-2
Asset-7

In short terms

QUICK DATASHEET DOWNLOAD

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Absorb sound, thermal energy, and shock.
Connection: Male ISO-R/Female ISO-G
Bending radius:
FFL: 45-220 mm
FFH: 90-130 mm
USP: Pump and system component protection. High strength and flexibility. Long lifespan leading to cost efficiency.

MAIN MATERIALS

Asset-7

Body inner hose:
FFL: EPDM
FFH: EPDM + Kevlar® or Rayon
Braiding: Stainless Steel
Fittings: Brass CW614N/CW617N and Steel
Sleeves: Stainless and Aluminium

FIELD OF APPLICATION

Asset-7

Temperature range:
FFL: -5 to 70 °C (peaks allowed up to 110 °C)
FFH: -5 to 90 °C
Max. working pressure:
FFL: 15-6 bar
FFH: 30-20 bar
Media: Water

DECLARATION

Asset-7
Insulation is available by request. Made of elastomer-foamed plastic, the insulation prevents heat loss as well as frost formation. It does also prevent the condensation process, ensuring a safer and more reliable pi­ping system. Thickness from 9-32 mm.
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request. For the complete product overview please refer to Products.
Malleable Iron rubber – SS fitting – PN 16 – Double Sphere Union – BSPT/Rc

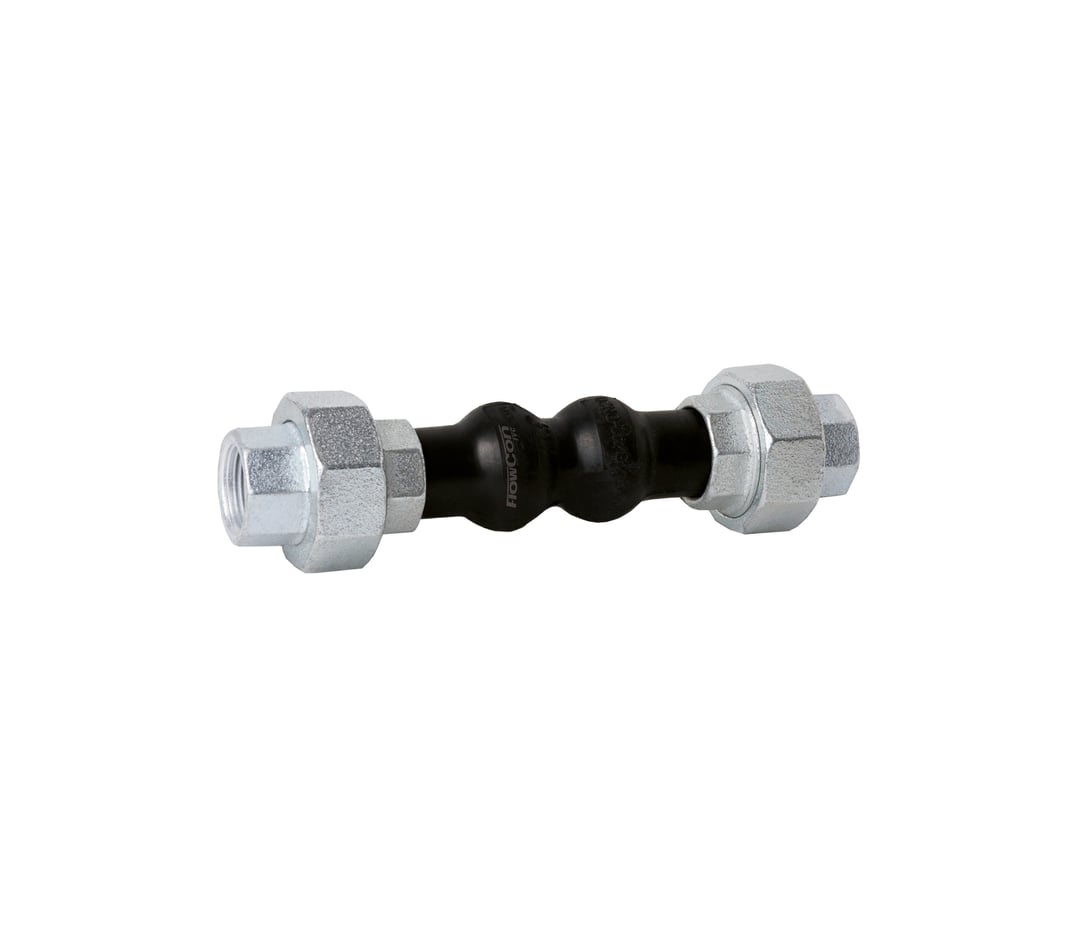

Malleable Iron rubber – SS fitting – PN 20 – Double Sphere Union – BSPT/Rc

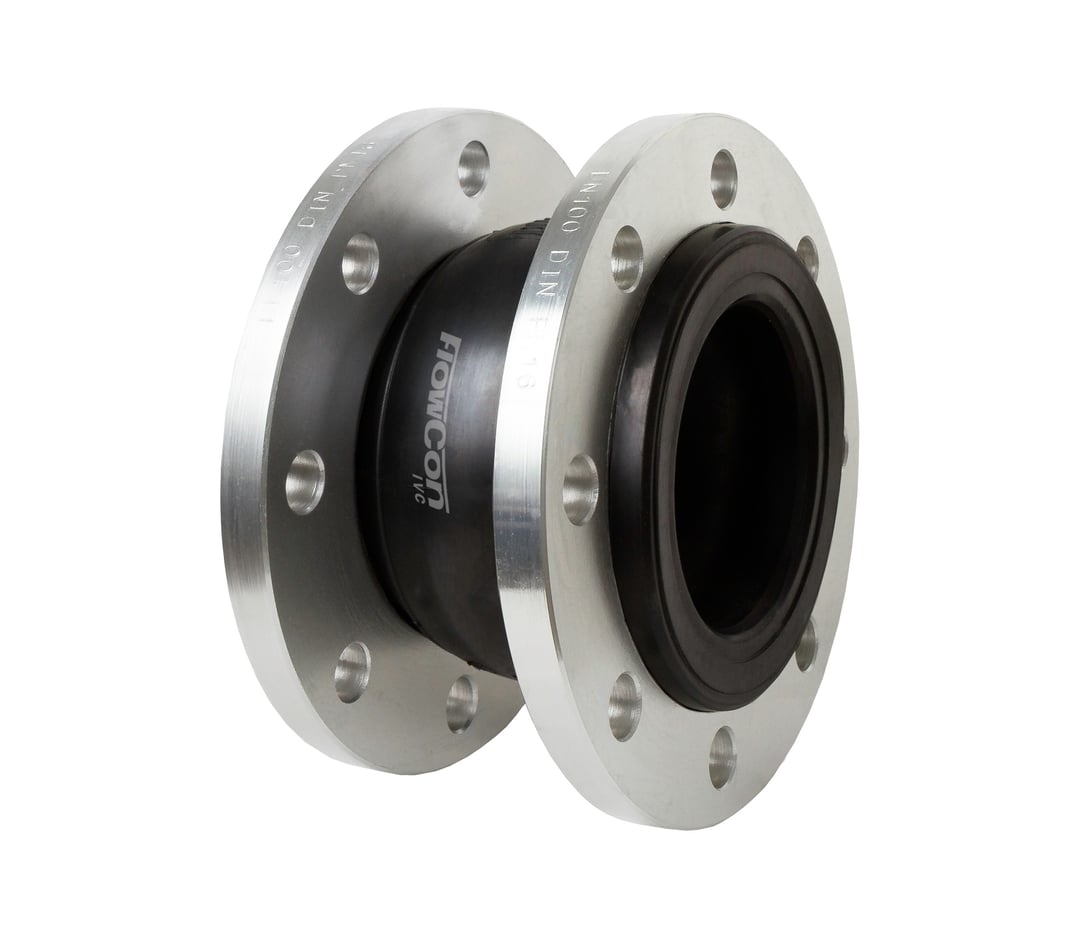

EPDM rubber – SS fitting – PN 16 – Single Sphere Union – EN 1092-2
