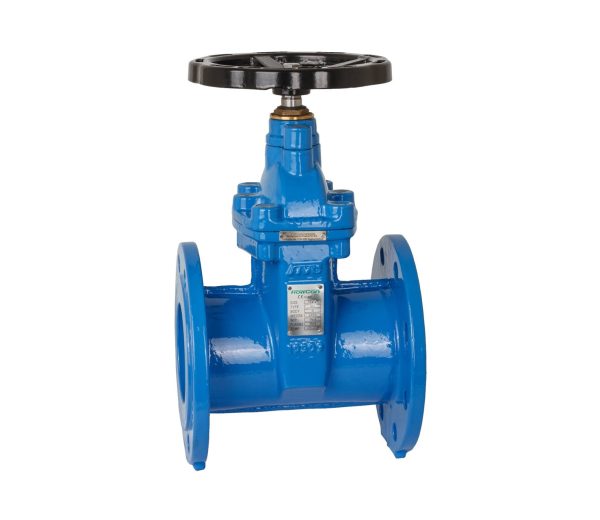

FIVC GATE VALVE

FGA_N16_NB230 – Ductile Iron – PN 16 – Non-Rising-Stem – EN 1092-2

The FIVC Gate Valve is designed to be installed in pipelines only for isolating purposes.

The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.

This gate valve is suitable for Water, Oil, and Air.

FGA-N16-NB230-2
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • Excellent flow isolation
  • Minimum pressure loss
  • Longer lifetime
  • Slow operation; Prevents the water hammer phenomenon
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Manual operated ON/OFF by wheel rotation
Model: Non-Rising-Stem
Bonnet: Bolted
Flange: EN 1092-2 PN 16
Dimensions: Face-to-Face acc. to BS 7350:1990
Testing: BS EN 12266-1
USP: Excellent tightness. Minimum pressure loss. Long lifetime.

MAIN MATERIALS

Asset-7

Body: Ductile Iron
Bonnet: Ductile Iron
Wedge: Ductile Iron + EPDM
Stem: Stainless Steel
Handwheel: Ductile Iron

FIELD OF APPLICATION

Asset-7

Temperature range: -10 to 100 °C
Max. working pressure: 16 bar
Media: Water, Oil, and Air.

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL
Industrial-water

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

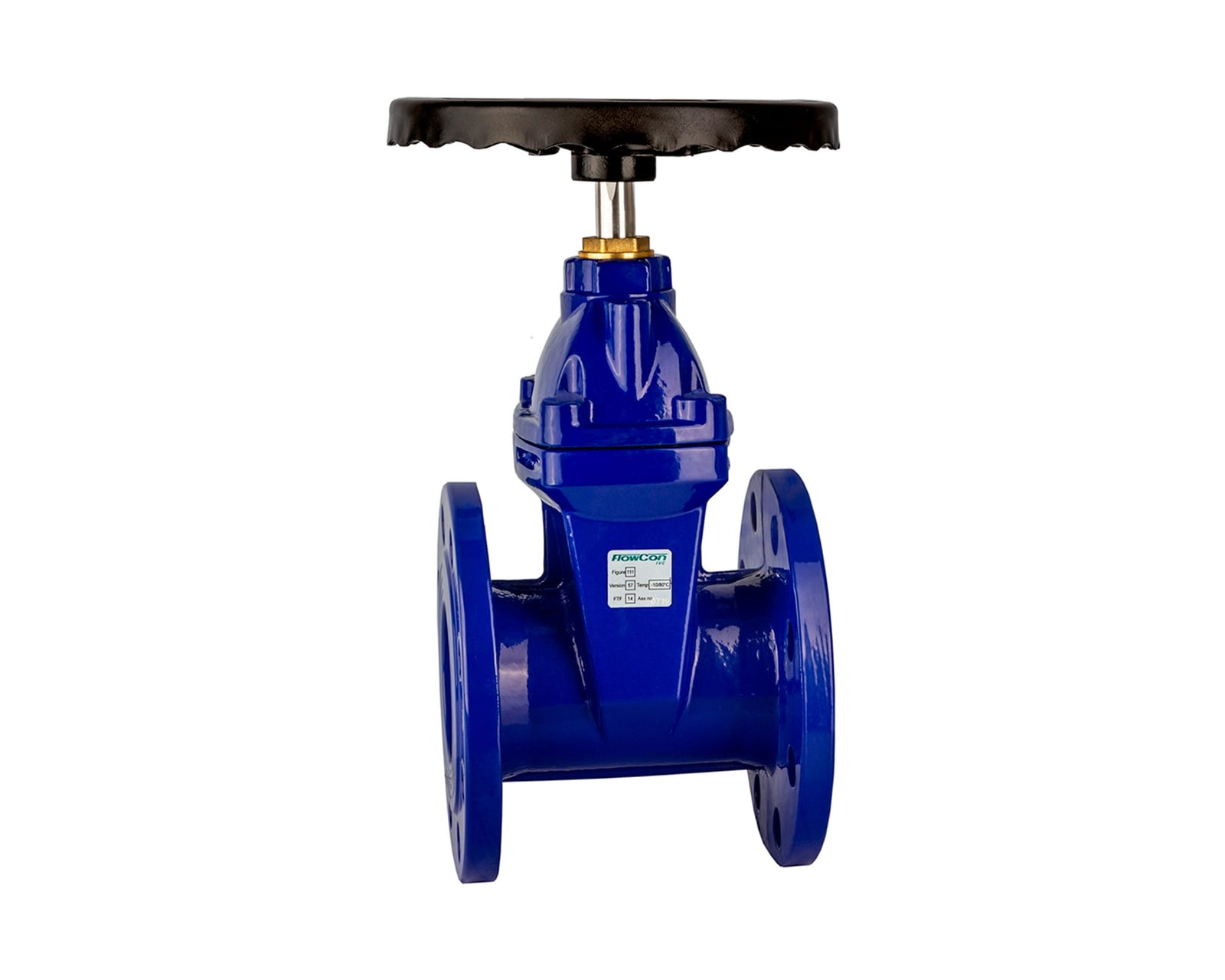

FGA_N16_NB60

Ductile Iron – PN 16 – NRS

PDF

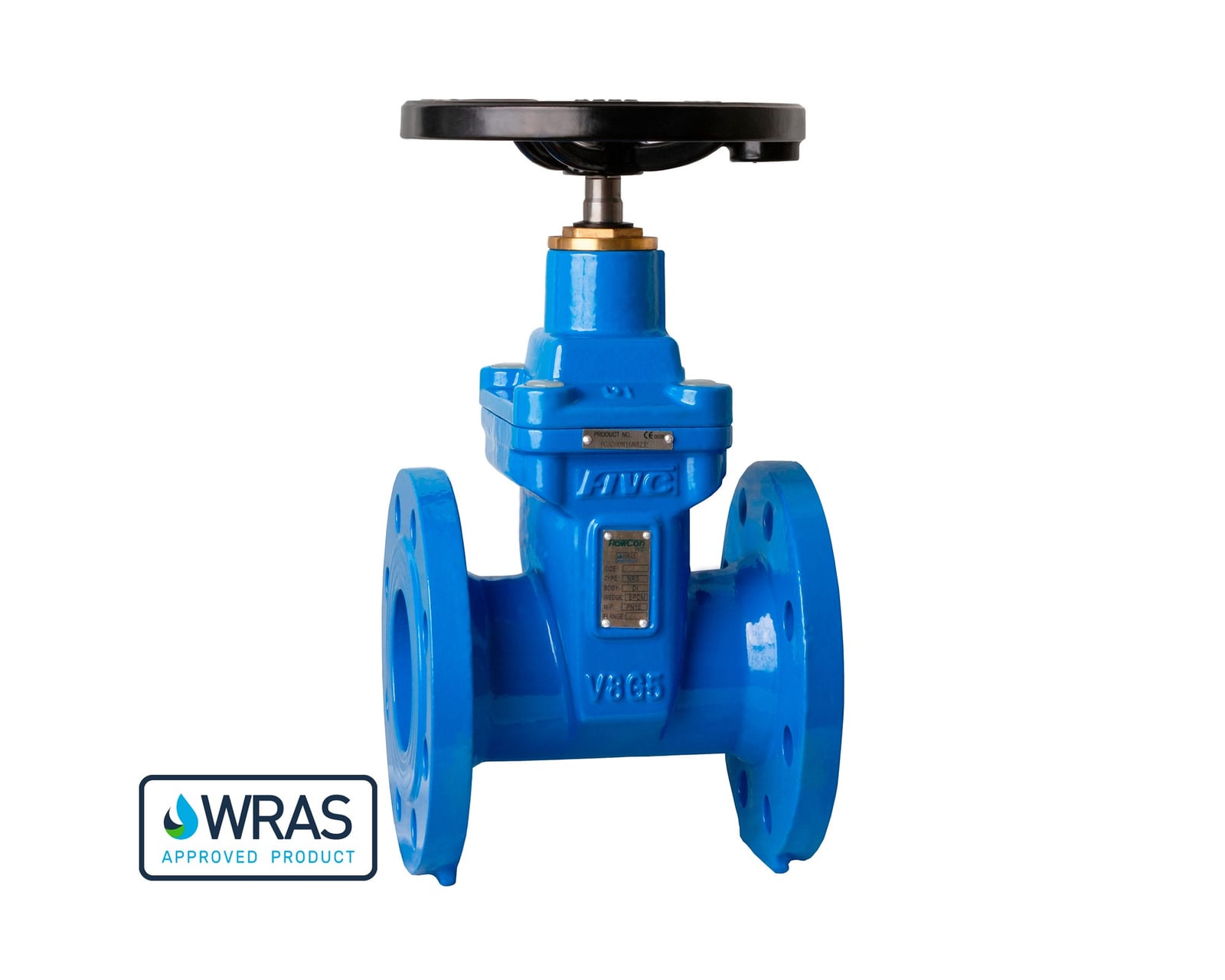

FGA_N16_NB231

Ductile Iron – PN 16 – WRAS – NRS

PDF

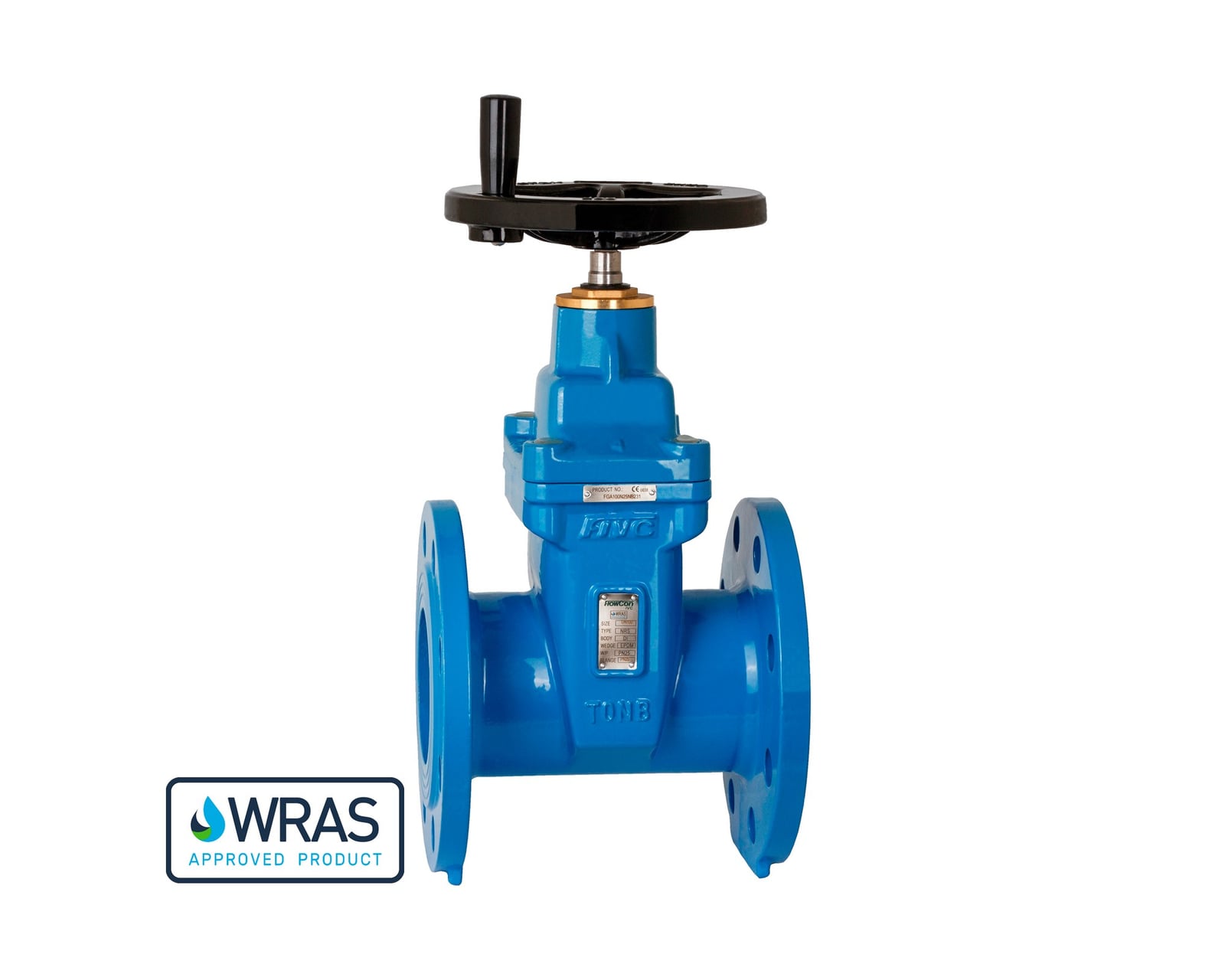

FGA_N25_NB231
