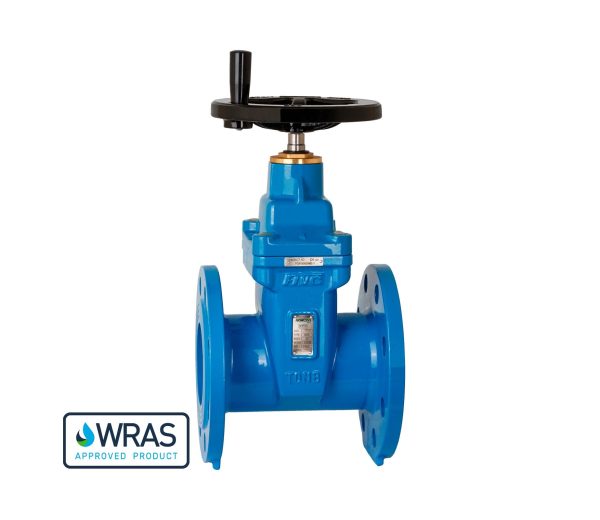

FIVC GATE VALVE
FGA_N25_NB231 – Ductile Iron – PN 25 – Non-Rising-Stem – WRAS – EN 1092-2
The FIVC Gate Valve is designed to be installed in pipelines only for isolating purposes.
The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow isolation
- Minimum pressure loss
- WRAS-approved
- Longer lifetime
- Slow operation; Prevents the water hammer phenomenon
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF by wheel rotation
Model: Non-Rising-Stem
Bonnet: Bolted
Flange: EN 1092-2 PN 16
Dimensions: Face-to-Face Acc. to BS 5163
Design: EN 558-1-1995
USP: WRAS approved. Excellent tightness. Minimum pressure loss.
Long lifetime.
MAIN MATERIALS
Body: Ductile Iron
Bonnet: Ductile Iron
Wedge: Ductile Iron + WRAS EPDM
Stem: Stainless Steel
Handwheel: Ductile Iron
Coating: Epoxy powder 0.2-0.3 mm thickness
FIELD OF APPLICATION
Temperature range: -10 to 85 °C
Max. working pressure: 25 bar
Media: Drinking water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.
WRAS-approved.

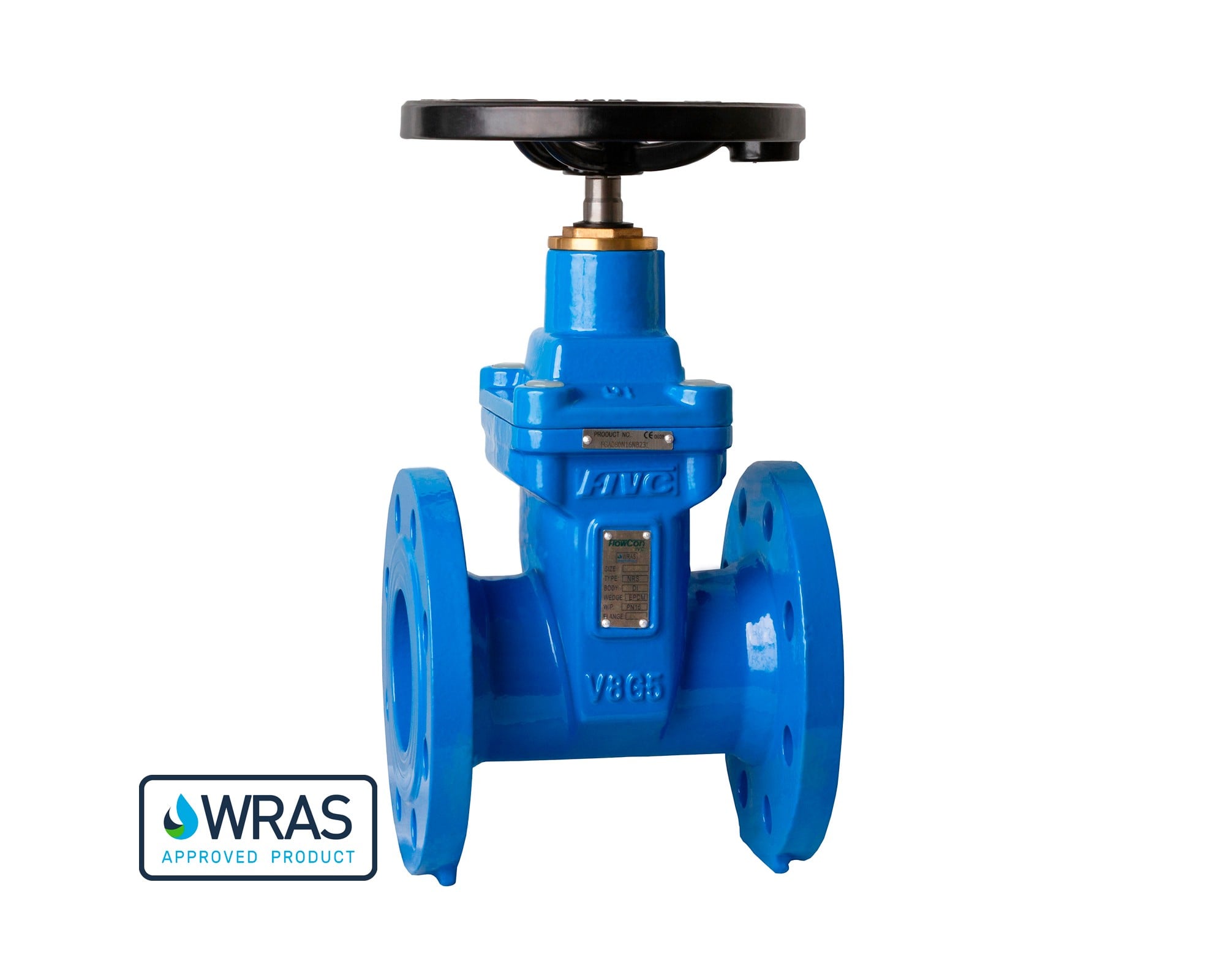

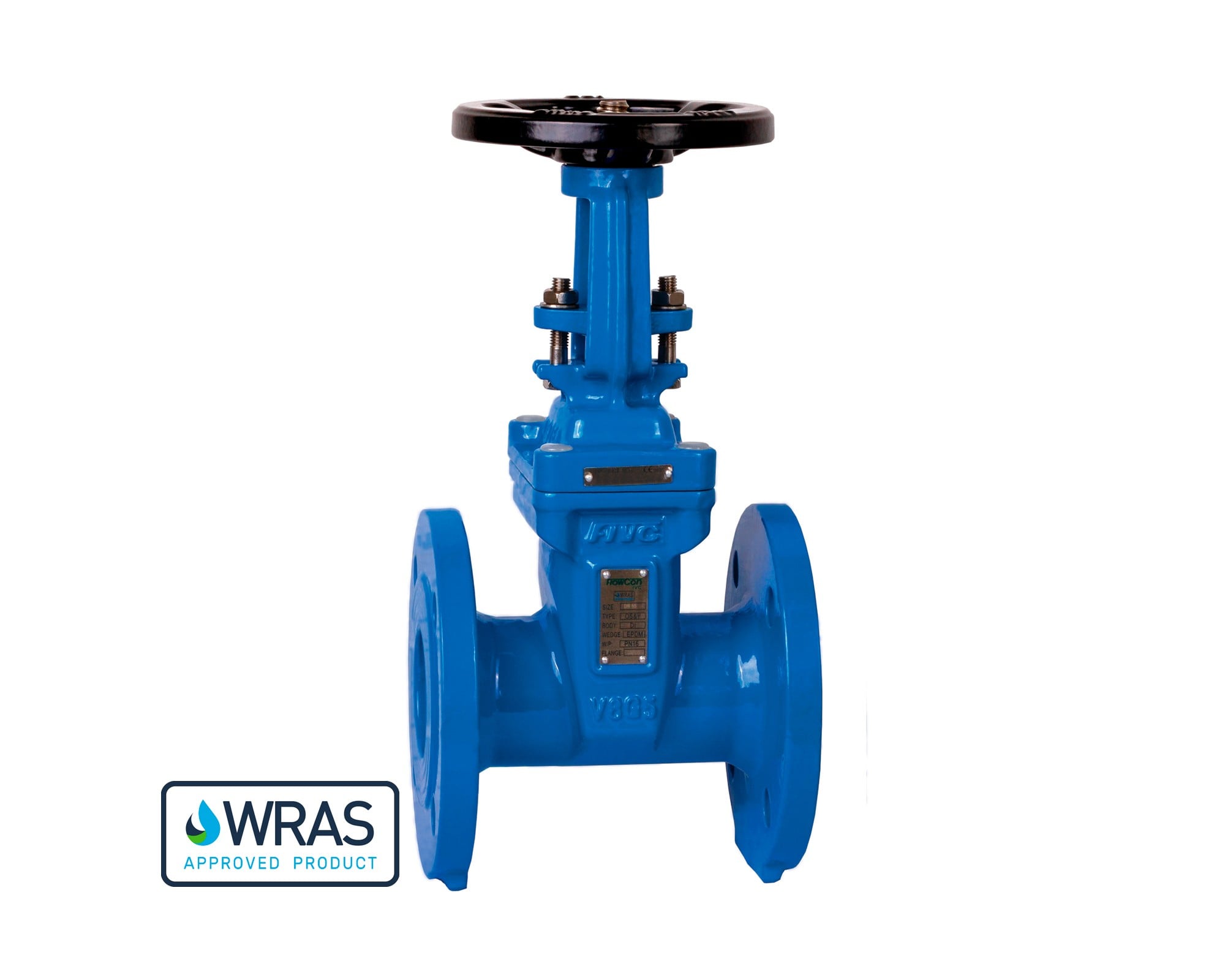

RELATED PRODUCTS
