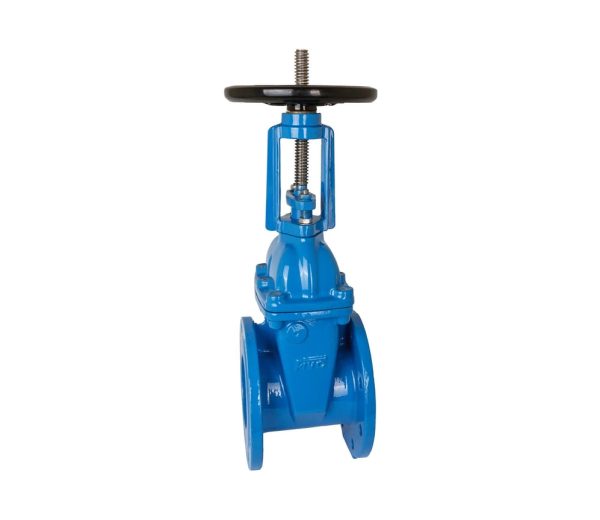

FIVC GATE VALVE
FGA_N16_RB241 – Ductile Iron – PN 16 – Rising-Stem – EN 1092-2
The FIVC Gate Valve is designed to be installed in pipelines only for isolating purposes.
The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow isolation
- Minimum pressure loss
- OS&Y
- Longer lifetime
- Slow operation; Prevents the water hammer phenomenon
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF by wheel rotation
Model: Rising-Stem
Bonnet: Bolted
Flange: EN 1092-2 PN 16
Dimensions: Face-to-Face DIN 3202-F4
Design: DIN 3352
Testing: DIN 3230
Shell pressure: 2.4 MPa
Sealing pressure: 1.76 MPa
USP: Excellent tightness. Minimum pressure loss. Long lifetime.
MAIN MATERIALS
Body: Ductile Iron
Bonnet: Ductile Iron
Wedge: Ductile Iron + EPDM
Stem: Stainless Steel
Handwheel: Ductile Iron
FIELD OF APPLICATION
Temperature range: -10 to 120 °C
Max. working pressure: 16 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No 2014/68/EU, dated 15/05/2014, and is CE marked.
