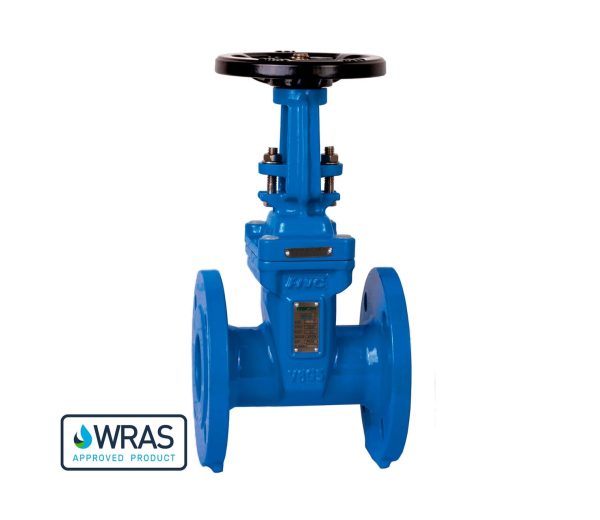

The FIVC Gate Valve is designed to be installed in pipelines only for isolating purposes.
The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.
The OS&Y structure is advantageous for both the lubrication of the stem, the easiness of maintaining the packing gland, the easiness of insulation, and the visibility of its open and closed position. Besides, this structure requires lower operating torques leading to economic advantages for manual operation. Furthermore, they provide a longer lifespan since the stem is kept out of the media, preventing them from erosion.
This gate valve is suitable for Drinking Water, Oil, and Air, and is WRAS approved.
Function and benefits
QUICK DATASHEET DOWNLOAD
Manual operated ON/OFF by wheel rotation
Model: Rising-Stem
Bonnet: Bolted
Flange: EN 1092-2 PN 16
Dimensions: Face-to-Face acc. to BS 5163
Testing: BS EN 12266-1
Shell pressure: 2.4 MPa
Sealing pressure: 1.76 MPa
USP: WRAS-approved. Excellent tightness. Minimum pressure loss. Long lifetime.
Body: Ductile Iron
Bonnet: Ductile Iron
Wedge: Ductile Iron + WRAS EPDM
Stem: Stainless Steel
Handwheel: Ductile Iron
Temperature range: -10 to 85 °C
Max. working pressure: 16 bar
Media: Drinking water, Oil, and Air
The product is WRAS approved and has been inspected and tested in accordance with the European PED Directive No 2014/68/EU, dated 15/05/2014.
WRAS-approved.
Size, material, approval, pressure rate, etc. are available upon request.
