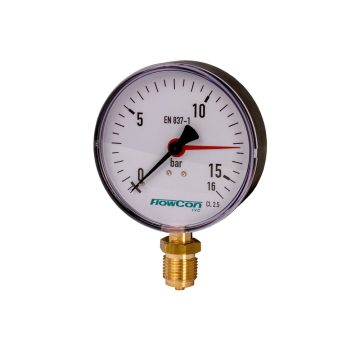

FIVC PRESSURE GAUGES
FPGB_P010 – Plastic and Copper Alloy – 0-10 bar – Bourdon – EN 837
The FIVC Pressure Gauge, is a Bourdon-type device, designed for precise pressure measurements in various applications. This gauge provides fast and accurate fluid pressure readings, ensuring a predictable and reliable system.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Precision
- Zero-Referenced against ambient pressure
- Speed
- Durable in rough applications
- Ease of Installation
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Fast and accurate fluid pressure readings.
Connection: Male thread
Design: EN 837-1
Accuracy class: 2.5
Pressure limitation: Steady: 3/4 x full-scale value
Fluctuating: 2/3 x full-scale value
Short time: Full-scale value
Scale ranges: 0..0.6 to 0..400 bar
USP: Ensures a predictable and reliable system with accurate readings.
MAIN MATERIALS
Case: Plastic
Process connection: Copper Alloy
Pressure element: Copper Alloy
Dial: Plastic/Aluminium w/Pointer stop pin
Window: Plastic
FIELD OF APPLICATION
Temperature range:
Ambient: -20 to 60 °C
Medium: +60 °C maximum
Max. working pressure: 10 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive N° 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
Approvals include GOST, Russia (metrology/measurement technology), CRN, and Canada (safety e.g. electr. safety, over-pressure, etc.).
