FVTA 0120 - FlowCon IVC

FIVC THERMOMETER

FVTA_0120 – Aluminium – 0-100° C – Glass – ISO 228 – Angle – ASME B40.200

The FIVC V-Line Thermometer is designed as an industrial glass thermometer designed for use in harsh HVAC and plumbing applications to measure temperature. The device is an angle-type and delivered with a removable 90° angle process connector that can be operated under pressures up to 6 bar.

This device is suitable for water.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Temperature-measurement
Working scale: Full-scale value
Accuracy class: Indication accuracy ±2 of full scale Enclosure rating: IP65
Stem length: 63 mm
Standard: ASME B40.200
USP: Quick and accurate reading ensuring proper system operation and energy efficiency, as well as for identifying potential problems such as overheating, underheating, or freezing. Durable and reliable. Thermowell included.

MAIN MATERIALS

Case: Anodized Aluminium
Stem: Brass
Swivel nut: Brass
Pointer: Blue liquid
Process connection: 90 °C angle
Glass tube: Prismatic
Window: Glass

FIELD OF APPLICATION

Temperature range: 0 to 100 °C
Max. working pressure: 6 bar
Media: Water

Alternative product versions

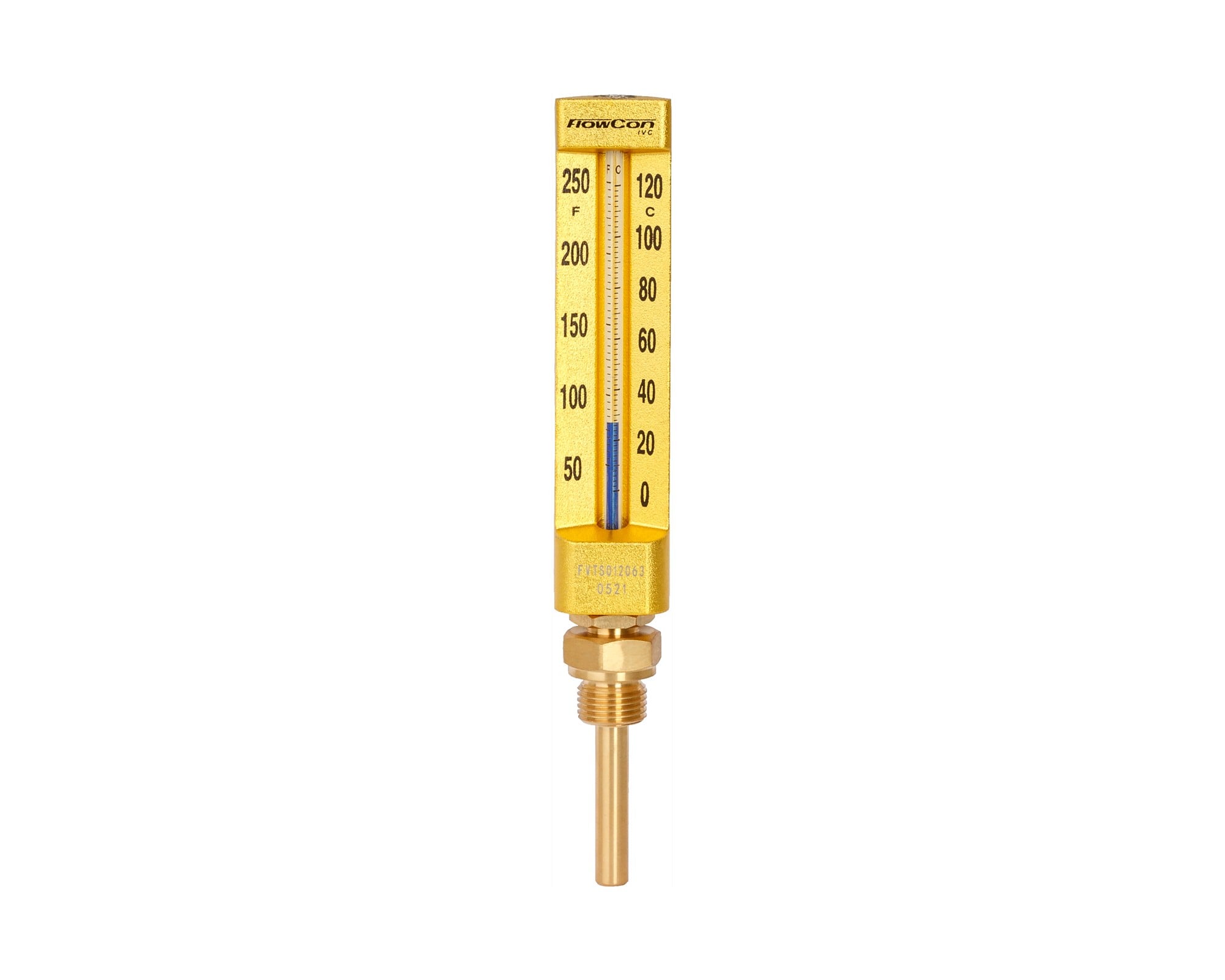

Straight or 135 °C positioned connection
Glass tube as cushioned
Other scale range
Case in black powder coated Nylon
Filling in red fluid
Stem in SS304 SS316, CuNi0Fe etc.

Other versions are available upon request.

DECLARATION

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive N° 2014/68/EU, dated 15/05/2014, the produet is exempted from CE marking (Cf. Art. 4.3).
