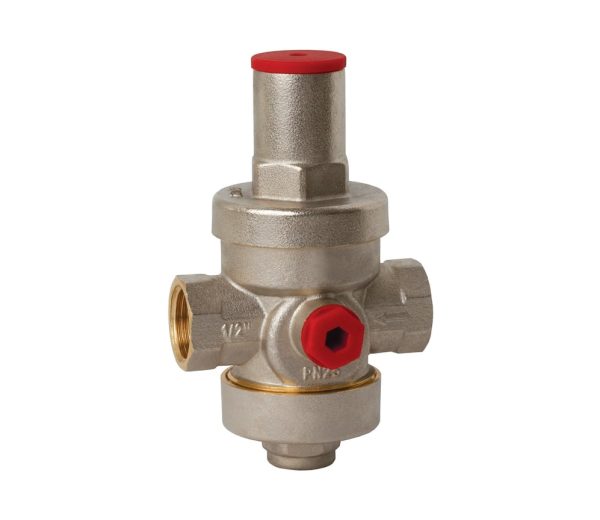

FIVC PRESSURE REDUCING VALVE

FPR_B25_P01 – Brass – PN 25 – ISO 228

The FIVC Ball Valve is designed as an automatic valve that reduces and stabilizes fluid pressure in a water distribution conduit according to a present value.
This hydraulic device is necessary if the maximum possible pressure at any point in the water distribution system exceeds the maximum allowable working pressure. It is also necessary if the system is connected to apparatus and equipment that function exclusively at lower pressure levels.
This hydraulic device is suitable for water, glycol solutions (max. 50% concentration of glycol), and compressed air (except for DN 50).
FPR_B25_P01
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • Rigidity and strength
  • Enhanced regulation precision
  • Long lifespan
  • Durable and reliable
  • Cost- and maintenance efficient
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Self-actuating
Sound class: ll – Lap [sB (A)] <30 Standard: EN 1567
Threading: ISO 228
USP: Automatic reduction of the incoming high-pressure fluid.
reduce the high incoming water pressure
Maintain a safe pressure in the pipeline.

MAIN MATERIALS

Asset-7

Body: Brass CW617N
Gasket: EPDM
Piston: Techno Polymer+ Glass fiber
Seat: Stainless Steel

FIELD OF APPLICATION

Asset-7

Temperature range: 0 to 130 °C (no freezing)
Max. working pressure: 25 bar
Outlet pressure regulation: 1 to 5.5 bar
Outlet pressure factory set: 3 bar
Media: Water and glycol solutions (max. 50% concentration of glycol). Compressed air (except DN 50)

DECLARATION

Asset-7
The model complies with the European PED Directive No. 97/23/EC, dated 25/02/2000, and is CE marked.
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

FBA_B35_F21001
Brass – PN 35/28 – ISO 228
PDF
FBA_O25_F212012112
Bronze – PN 25 – Full port – WRAS
PDF

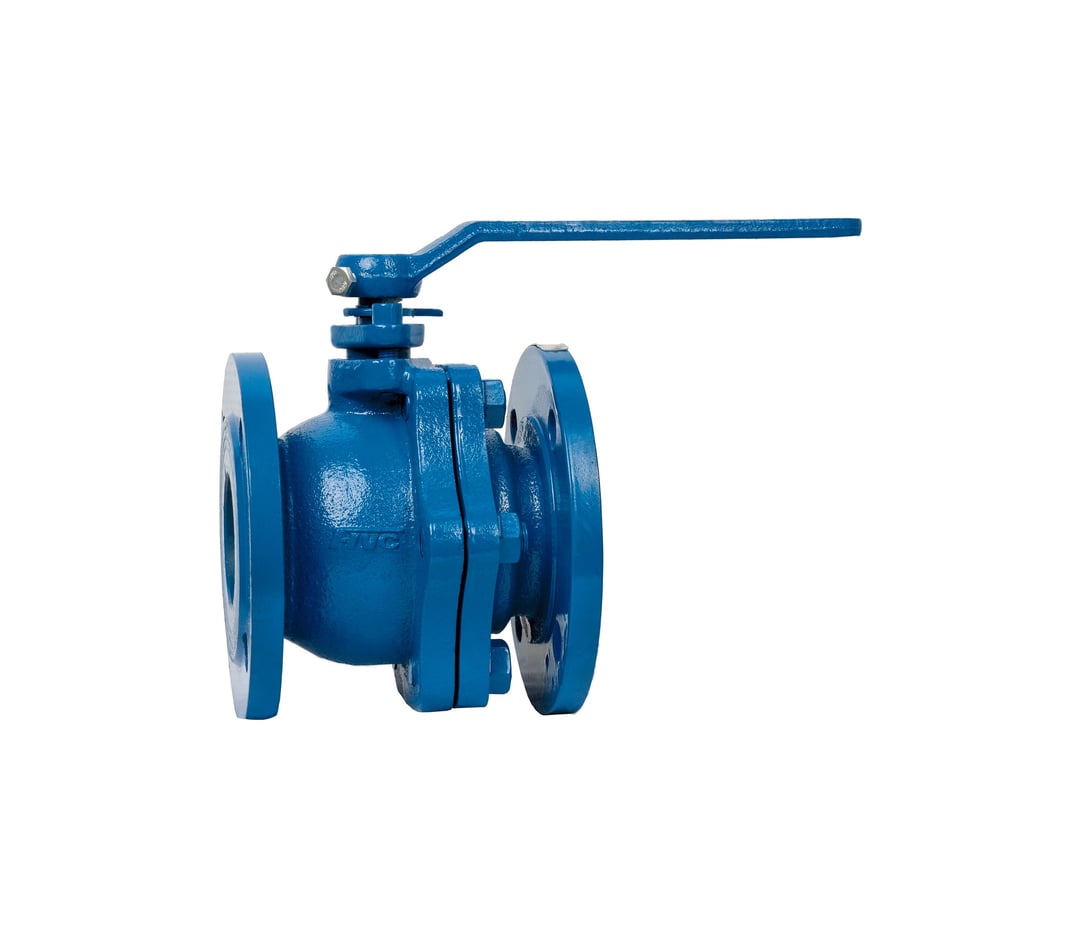

FBA_C16_F215
